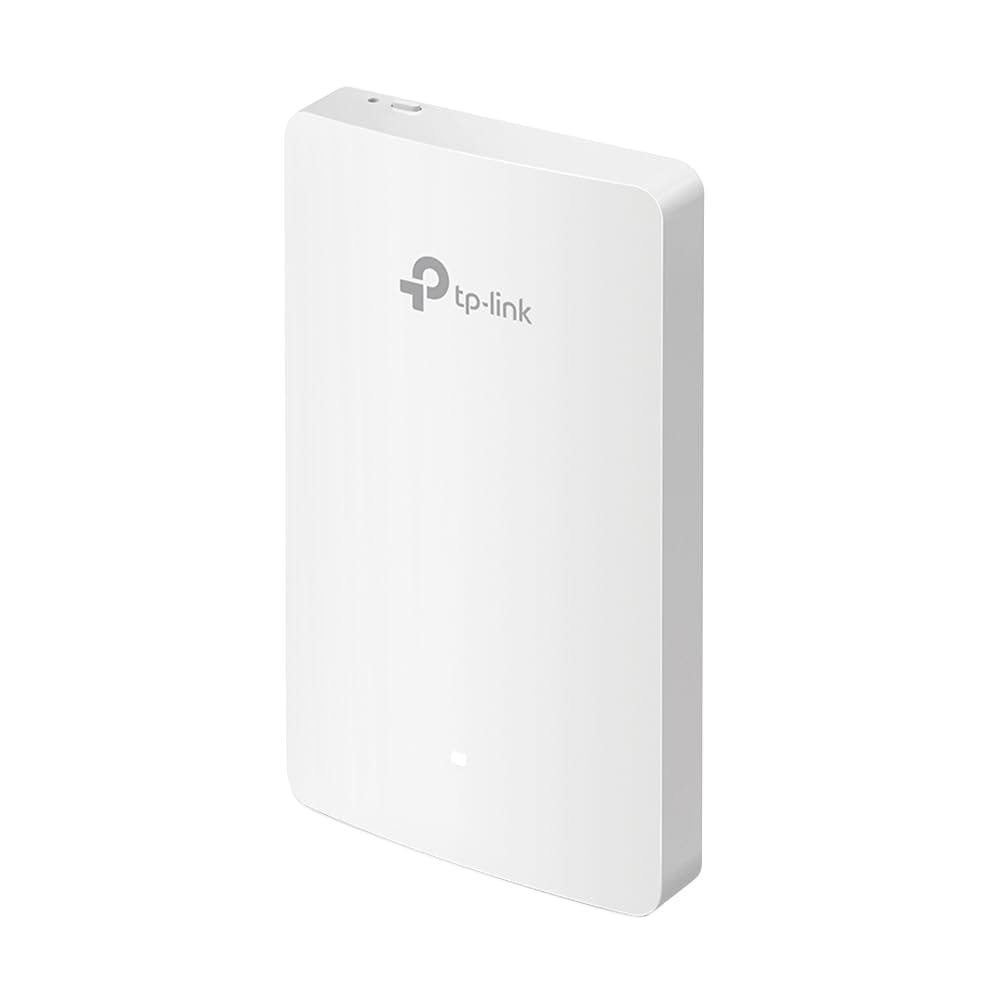

TP-Link EAP235-Wall AC1200 Wall Plate Access Point with MU-MIMO and PoE

The TP-Link EAP235-Wall AC1200 Wall Plate Access Point with MU-MIMO and PoE is engineered for high-density hospitality, commercial and enterprise environments that require stable, room-level WiFi coverage without visible external antennas or bulky hardware. Its wall-plate design makes it ideal for hotel rooms, offices, clinics, classrooms, co-working spaces, hostels, retail cabins, service counters and modern residential interiors where clean aesthetics and reliable per-room wireless performance are important.

As part of TP-Link’s Omada EAP series, this model integrates seamlessly with the Omada SDN platform, enabling centralized management for multiple access points across different floors and buildings. Administrators can monitor performance, configure SSIDs, apply bandwidth restrictions, manage captive portals and optimize RF settings remotely from a unified dashboard. This makes the EAP235-Wall an excellent fit for multi-room deployments such as hotels, apartment complexes, corporate guest areas, dormitories and serviced offices.

The AC1200 dual-band wireless system offers concurrent 2.4 GHz and 5 GHz operation, giving flexibility to support both legacy devices and high-performance modern equipment. With MU-MIMO technology, the access point communicates with multiple devices simultaneously, improving network efficiency and reducing latency. This ensures smoother streaming, stable browsing and consistent speeds even when numerous clients are connected.

Unlike ceiling-mounted enterprise access points, the wall-plate design ensures the WiFi signal originates from within the room, significantly improving room-level penetration and reducing interference from thick walls commonly found in Indian building structures. It also reduces roaming issues for mobile devices by ensuring each room has its own dedicated access point.

The device includes three Ethernet downlink ports, enabling hotels, offices or retail environments to connect wired devices such as IP phones, desktops, printers or IPTV boxes directly to the access point. One port supports 802.3af PoE out (variant dependent), useful for powering devices such as VoIP phones or other low-power IoT hardware.

Installation is simple due to 802.3af Power over Ethernet support. With PoE, power and data run over a single cable, eliminating the need for local wall-socket adaptors. If additional power-distribution hardware is required, browse compatible PoE switches here:
PoE Switches.

For improved uptime during power cuts, especially in hotels and office buildings, pair your network with an appropriate UPS:
UPS Backup Solutions.

The EAP235-Wall also supports guest network isolation, captive portals, rate-limiting, VLAN tagging and seamless roaming when deployed with other Omada EAP units. This allows administrators to create secure segmented WiFi zones for guests, staff, devices and IoT networks.

Key Features

AC1200 Dual-Band Performance

The access point delivers up to 300 Mbps on 2.4 GHz and up to 867 Mbps on 5 GHz. This ensures smooth streaming, responsive browsing and stable connections in high-density rooms.

MU-MIMO Technology

Multi-User MIMO improves performance by allowing the AP to communicate with multiple devices simultaneously instead of sequentially. This is essential in rooms where users connect laptops, phones, TVs and IoT devices at once.

Wall-Plate Design for Room-Level Coverage

Designed for 86 mm and standard EU wall junction boxes, the AP blends into walls like a standard outlet. This placement ensures optimal in-room WiFi and minimal signal leakage.

Integrated Ethernet Ports

Equipped with three LAN ports for wired device connectivity such as VoIP phones, IPTV boxes, computers and POS systems. Ideal for hotel rooms and desk areas.

PoE In and Optional PoE Out

Supports 802.3af PoE for power input and provides PoE out on select ports, making it suitable for environments with voice-over-IP phones and IP-based intercom devices.

Centralized Control via Omada SDN

Manage multiple access points from a single dashboard. Configure networks, apply policies, deploy updates and monitor bandwidth consumption effortlessly.

Seamless Roaming Support

With Omada SDN and multiple APs installed, users can move across floors and rooms without disconnecting—ideal for large office environments or hospitality setups.

Enterprise Security Features

Includes WPA3 (depending on firmware), VLANs, access control lists, captive portals, guest network isolation and rate-limit features.

High-Density Optimized Antenna Pattern

The directional antenna focuses signal strength within the room, improving stability and reducing channel interference.

Technical Specifications

Package Contents

• 1 × TP-Link EAP235-Wall Access Point
• 1 × Wall Plate Mounting Kit
• 1 × Quick Installation Guide

Compatibility & Use Cases

Ideal for:

• Hotels and guest rooms
• Corporate office cabins and meeting rooms
• Clinics, labs and outpatient desks
• Education campus rooms
• Hostels and co-living spaces
• Retail spaces and service counters

Works with Omada SDN controllers and integrates with PoE switches:
PoE Switch Category.

Why Buy from Thencix?

Thencix ensures all networking products are original, specification-verified and securely handled. Our team supports customers through configuration, warranty assistance and deployment guidance for multi-room environments.

• Genuine, original products only
• Expertly verified specifications
• Fast and secure delivery across India
• GST invoice included with every order
• WhatsApp support for setup assistance
• Cash on Delivery option
• Secure packaging for safe transit
• Pan-India delivery reach
• In-house warranty assistance so customers never need to contact the brand
• We book service appointments via WhatsApp for faster resolution

Email: support@thencix.com

WhatsApp: +91 9891150949

Frequently Asked Questions (FAQ)

Q: Can this access point cover an entire floor?

It is designed for room-level coverage. For multi-room and hallways, install multiple APs managed through Omada SDN.

Q: Does it support powering a VoIP phone?

Yes, the downlink port supports PoE-out in applicable variants, which is suitable for VoIP handsets.

Q: Can it work without an Omada controller?

Yes, the device can run in standalone mode, but Omada SDN provides better management and roaming.

Q: How many users can connect simultaneously?

Depending on the environment, 30–60 users per AP is typical for stable performance.

Q: Can I use it with a non-TP-Link PoE switch?

Yes. Any 802.3af-compliant PoE switch will work. Explore compatible switches here:
PoE switches.

Q: Does it support VLANs?

Yes, VLAN tagging is supported for network segmentation.

Q: Does roaming require a controller?

Yes. Seamless roaming is best achieved when used with Omada SDN.

Q: How do I avoid disconnections during power cuts?

Use a UPS for your network hardware:
UPS backup options.
