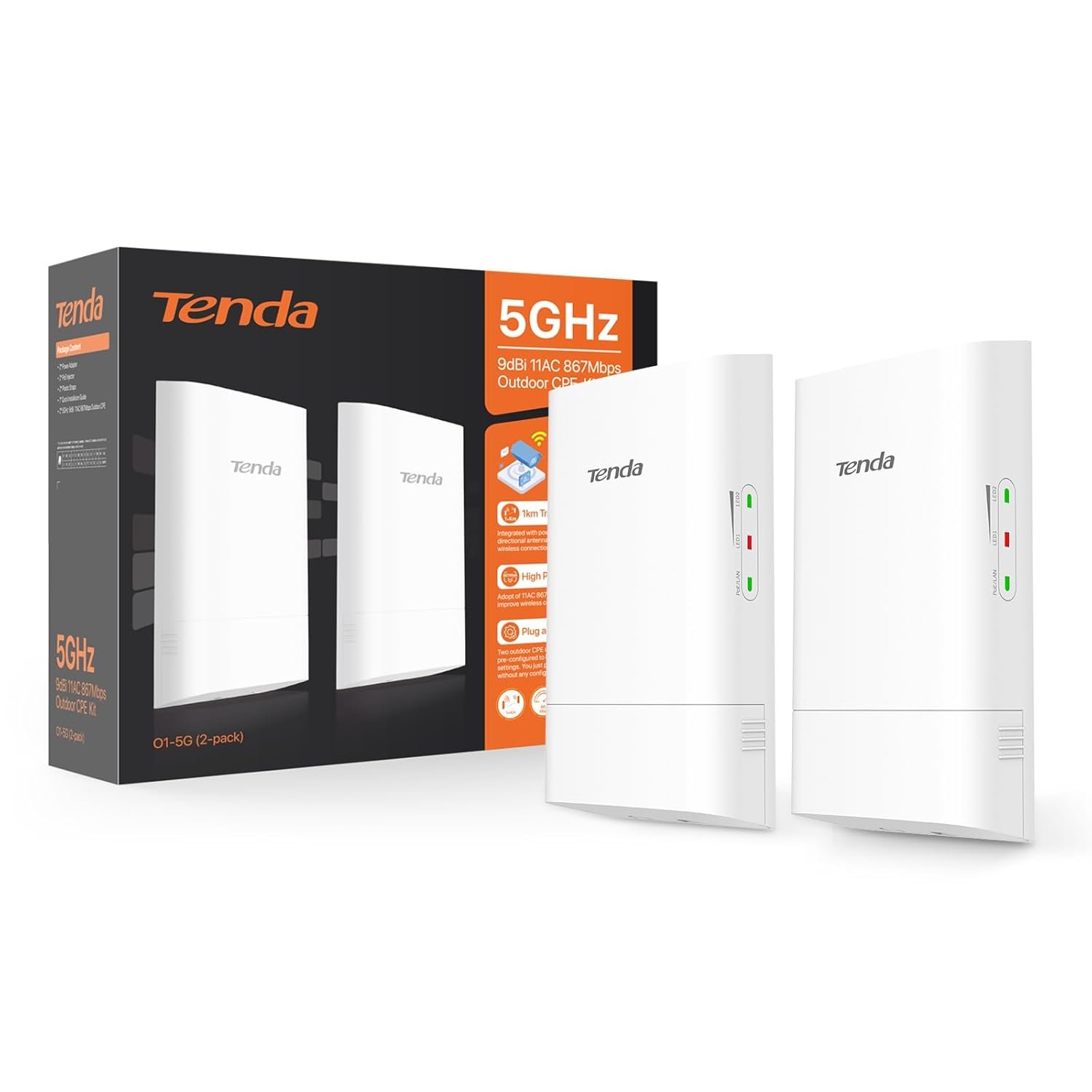

Tenda O1-5G Outdoor CPE 5GHz 867Mbps 9dBi Pre-Configured 2-Pack

The Tenda O1-5G Outdoor CPE Pre-Configured 2-Pack is a professional-grade 5GHz wireless bridge solution designed for point-to-point and point-to-multipoint networking applications. This complete kit includes two factory-configured O1-5G units, enabling users to establish reliable long-distance wireless connections straight out of the box. Whether you need to transmit video surveillance footage between buildings, share internet connectivity across a campus, or provide wireless broadband access in remote locations, this outdoor CPE pair delivers enterprise-grade performance with consumer-friendly simplicity.

Explore the complete range of Tenda networking solutions at our dedicated Tenda outdoor CPE and wireless bridge collection. Every unit is sourced from authorised channels and carries manufacturer-verified specifications.

What is the Tenda O1-5G Outdoor CPE Kit?

The Tenda O1-5G (Customer Premises Equipment) is a purpose-built outdoor wireless device engineered specifically for creating long-distance network links where traditional cabling is impractical or cost-prohibitive. This 2-pack kit provides everything needed to establish a wireless bridge between two locations – eliminating the hassle of sourcing and configuring individual units separately.

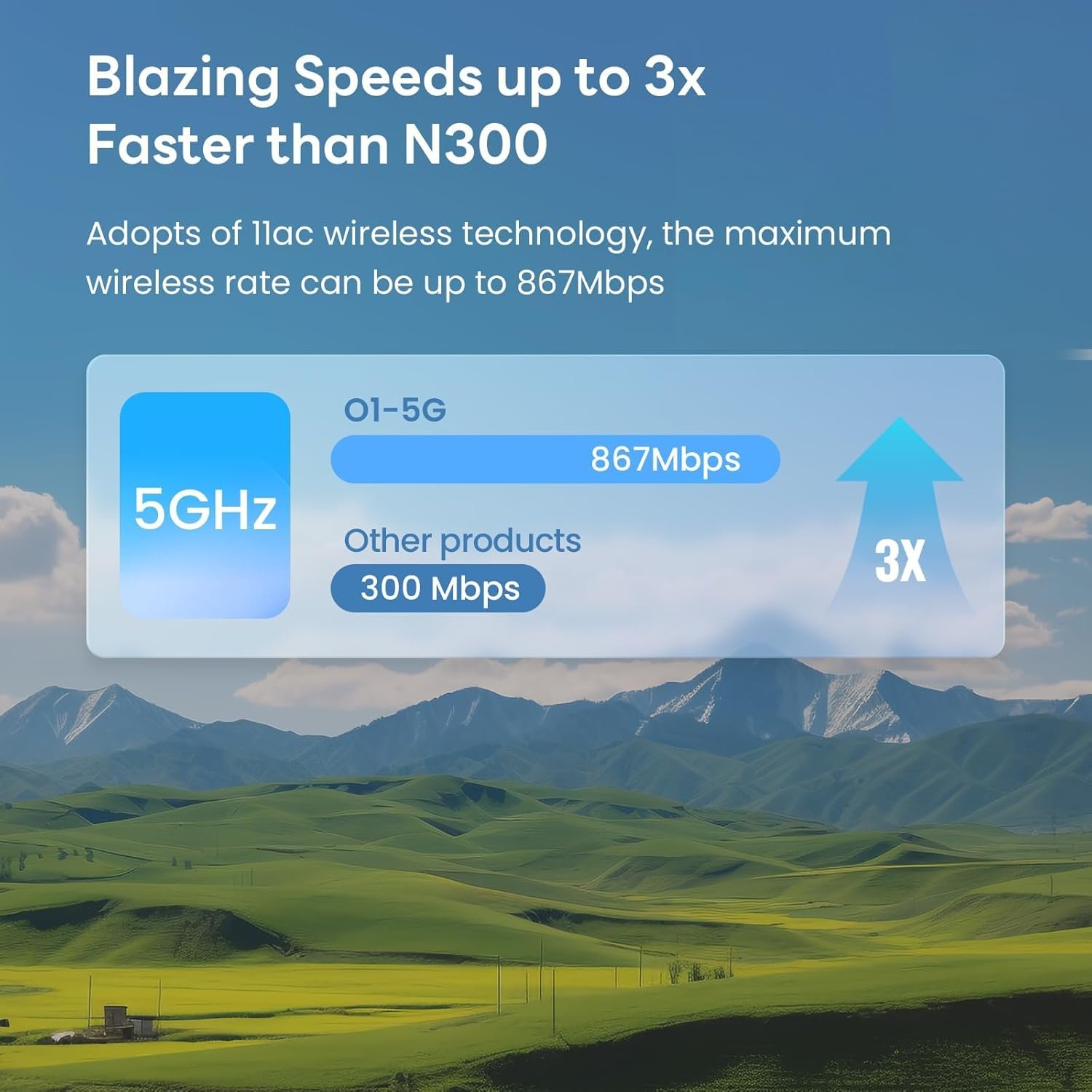

Each unit features a 5GHz 11AC wireless radio delivering up to 867Mbps maximum data rate, paired with a high-gain 9dBi directional antenna. The 5GHz frequency band offers significant advantages over congested 2.4GHz spectrum, including less interference and higher throughput potential – critical for bandwidth-intensive applications like HD video surveillance transmission.

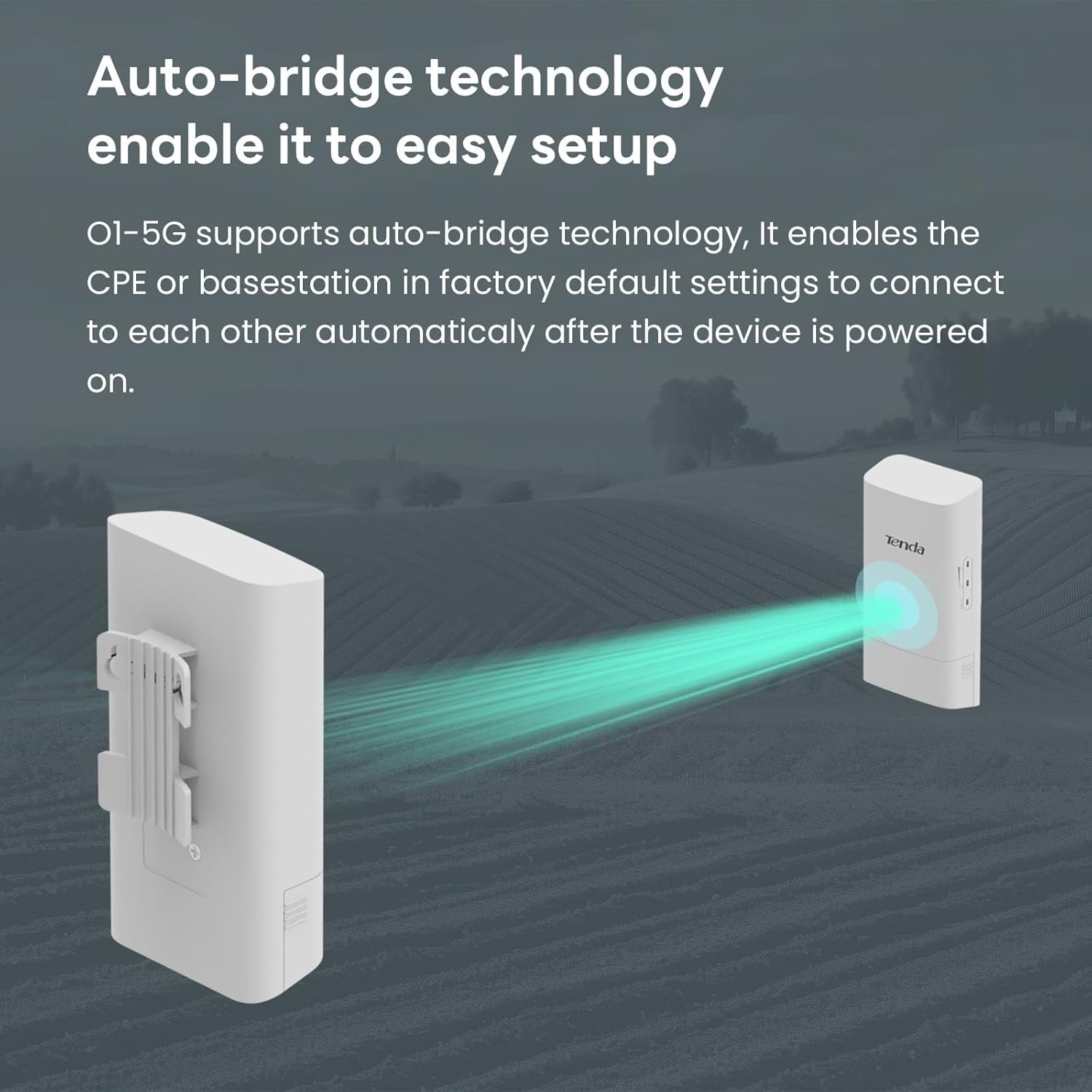

Pre-Configured for Simplicity – Auto-Bridge Technology

One of the standout features of this 2-pack kit is Tenda’s innovative auto-bridge technology. Unlike traditional wireless bridges that require complex manual configuration, these units are pre-configured at the factory to work together. Simply mount both units, connect power, and they automatically establish a secure wireless link.

For professional installers and system integrators, this translates to dramatically reduced installation time and fewer on-site technical support calls. Multiple user reviews confirm that these units are even easier to set up than comparable Ubiquiti devices – simply power them up side by side, and they pair themselves automatically.

For expanding your wireless network infrastructure, explore our range of Tenda routers and networking equipment for complementary indoor coverage.

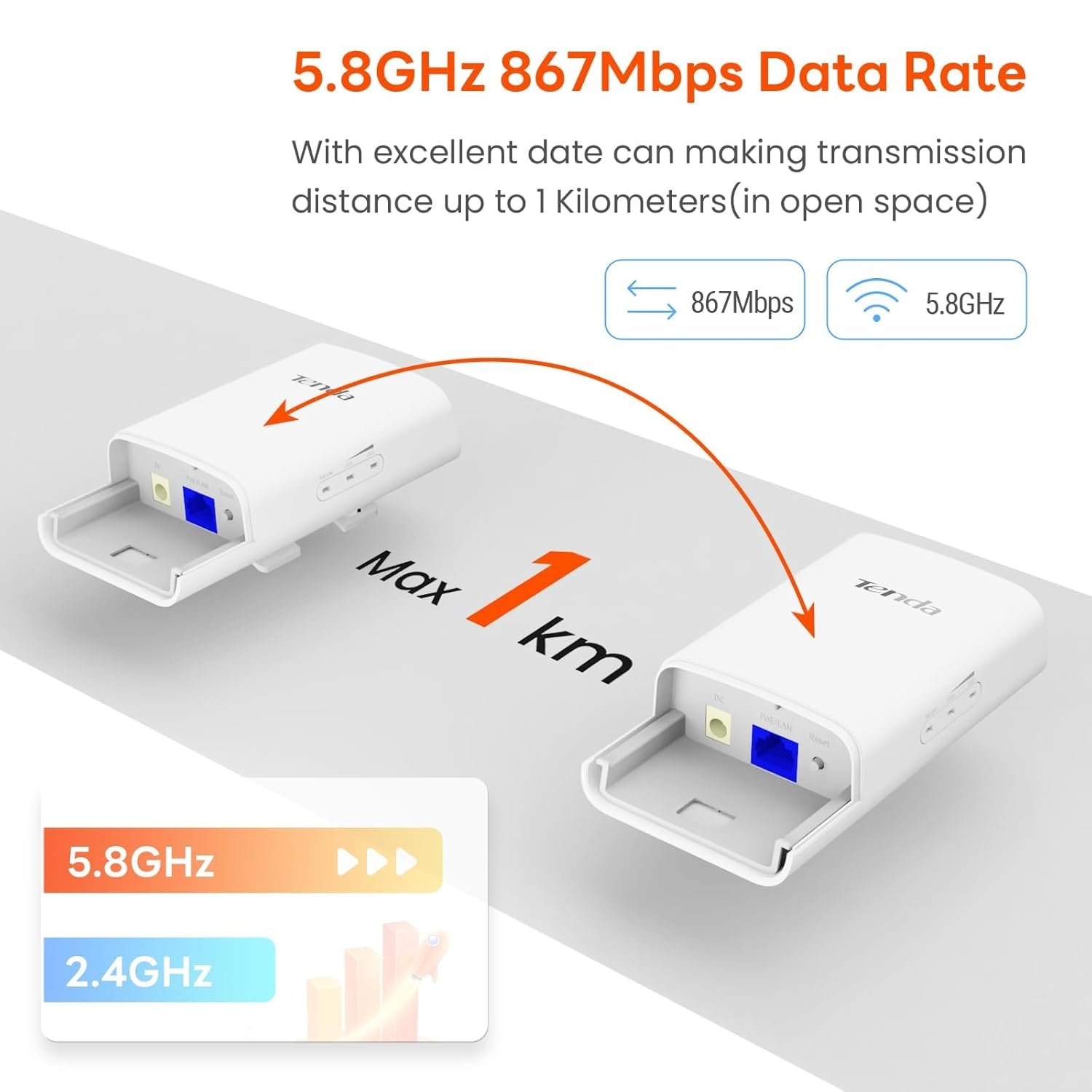

Exceptional Long-Distance Performance – 1km+ Range

The O1-5G is engineered for extended reach through a combination of robust hardware design. Each unit incorporates:

• Internal Power Amplifier: Boosts transmission power for enhanced signal strength over distance
• 9dBi High-Gain Directional Antenna: Focuses wireless energy in a specific direction, maximising effective range and minimising interference from off-axis sources
• Optimised Receiver Sensitivity: As low as -92dBm for 11a 6Mbps, ensuring weak signals can still be received and decoded

Under optimal line-of-sight conditions with minimal obstruction, these combined technologies support stable wireless links up to 1 kilometre. Real-world performance will vary based on environmental factors such as foliage, buildings, and atmospheric conditions – with users reporting successful connections at distances ranging from 100 metres to 300 metres with acceptable signal strength.

Versatile Operation Modes for Multiple Applications

While the kit excels at point-to-point bridging out of the box, the O1-5G supports multiple operation modes for various deployment scenarios:

• AP Mode (Access Point): Creates a wireless network for client devices
• Client Mode (Station): Connects to an existing wireless network
• WISP Mode (Wireless ISP): Connects to wireless internet service provider networks
• Repeater Mode: Extends wireless coverage area
• PTP/PTMP: Point-to-point and point-to-multipoint bridging for connecting multiple locations

Technical Specifications

Professional Outdoor Design – IP65 Weatherproof Rating

Deploying networking equipment outdoors demands robust protection against the elements. The O1-5G features an IP65-rated weatherproof enclosure, providing complete protection against dust ingress and protection against water jets from any direction. This allows reliable operation in diverse environmental conditions including:

• Heavy rainfall and humidity
• Dust and sand exposure
• Extreme temperatures from -30°C to 55°C
• Direct sunlight exposure

For additional outdoor installation requirements, browse our selection of outdoor-rated Ethernet cables and weatherproof connectors to complete your deployment.

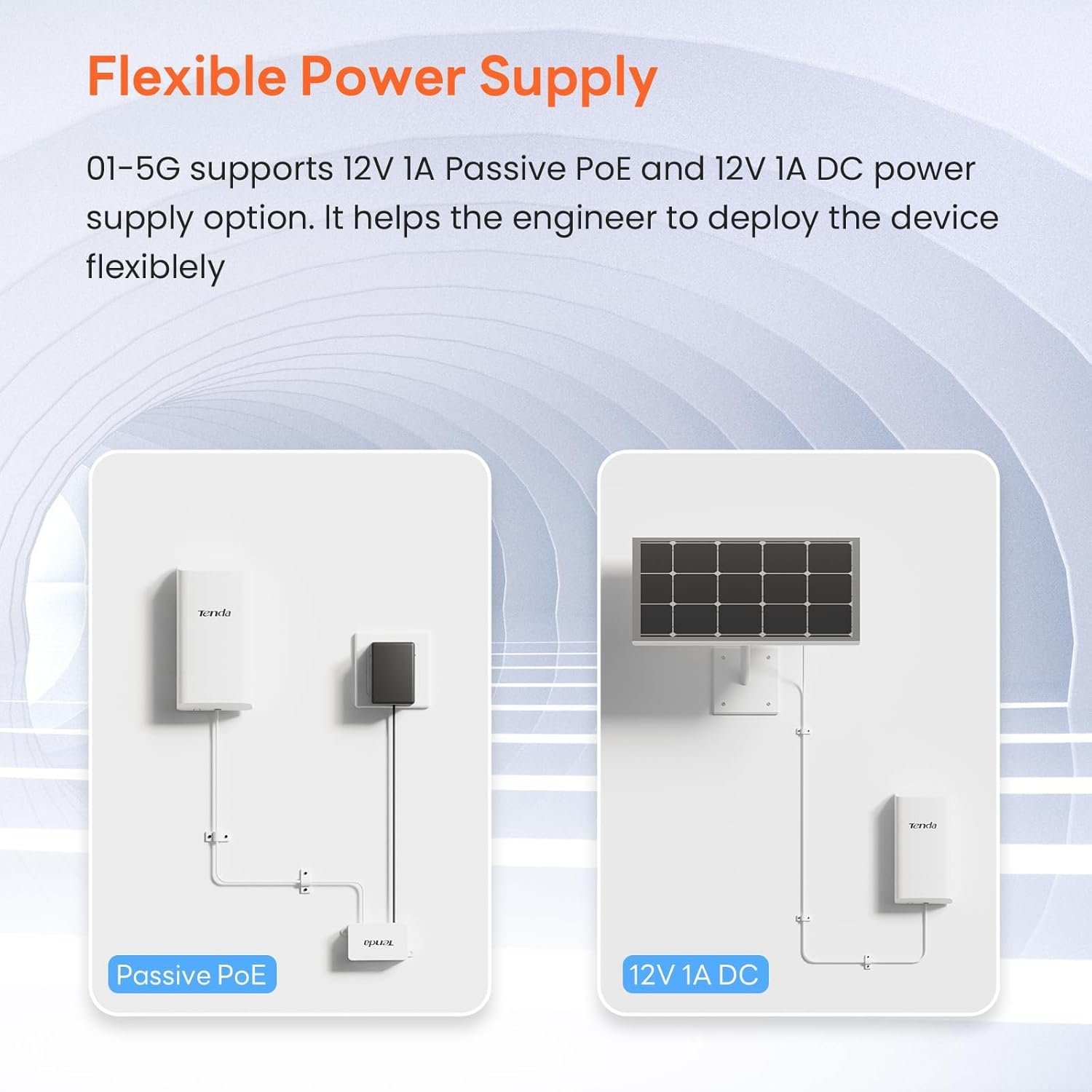

Flexible Power Options with Passive PoE

The O1-5G offers exceptional installation flexibility through dual power supply options:

• 12V DC Power Supply: Direct connection where power outlets are readily available
• 12V Passive PoE (Power over Ethernet): Delivers both power and data through a single Ethernet cable, simplifying installation at remote locations. Supports cable runs up to 60 metres using Cat5e or better cabling – ideal for mounting positions where AC power is not accessible

Each unit in the kit includes a passive PoE injector, allowing immediate deployment without additional purchases.

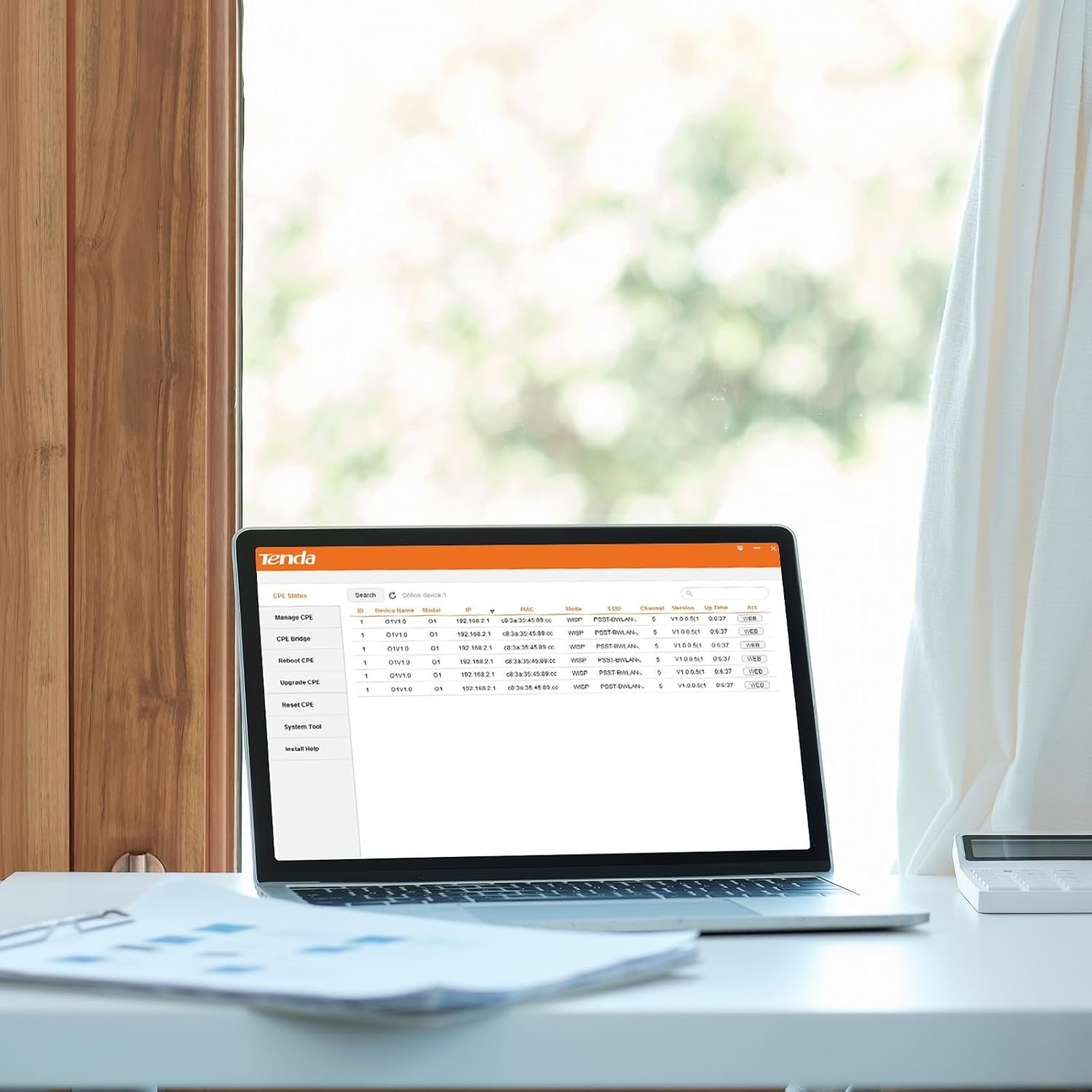

Centralized Management with CPE Assistant

For professional installations involving multiple O1-5G units, Tenda provides CPE Assistant – a centralized management software tool that enables administrators to monitor and configure all network devices from a single PC interface. Key management capabilities include:

• Device discovery and status monitoring
• Bulk configuration and firmware updates
• Signal strength and link quality monitoring
• Network performance diagnostics

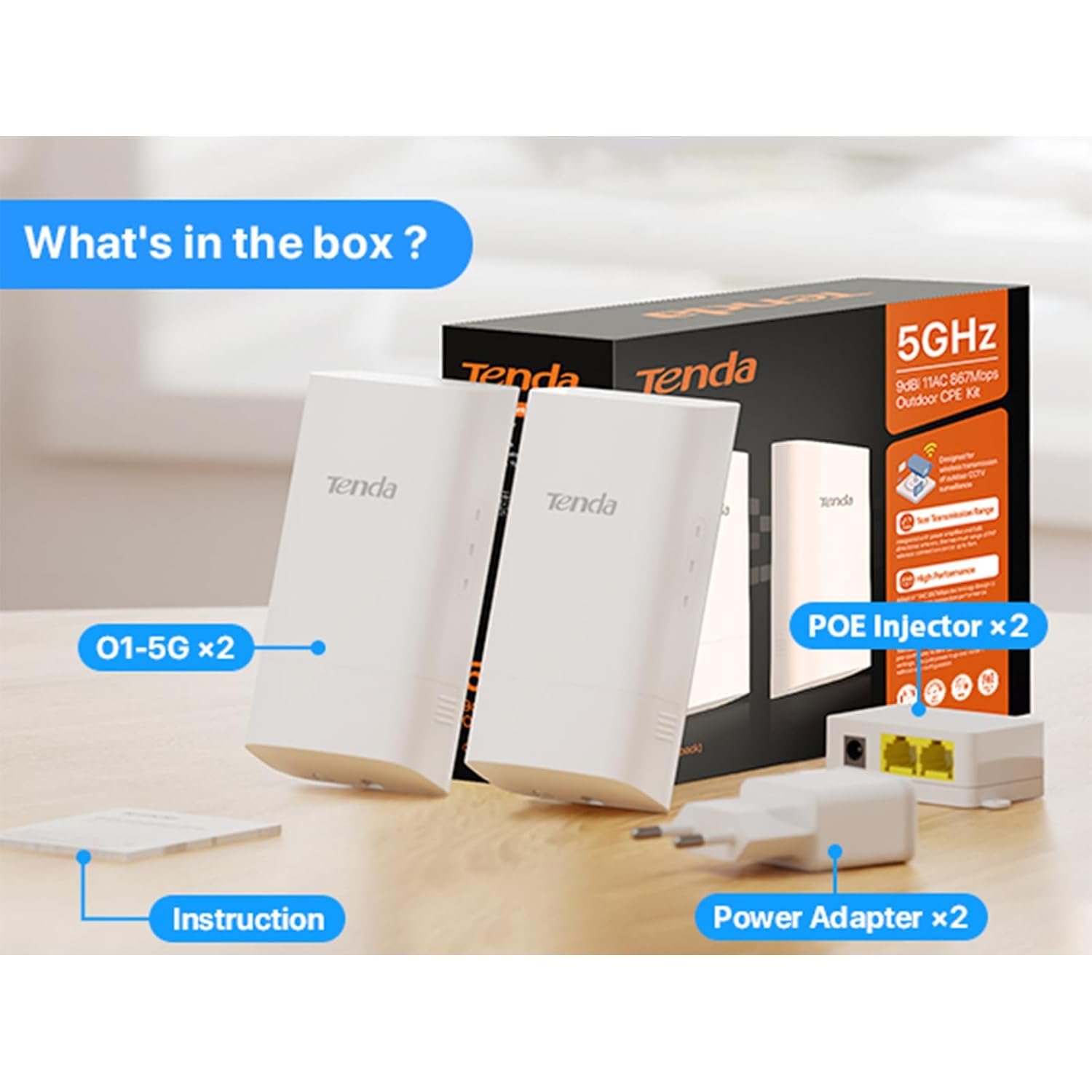

Package Contents

• 2 x Tenda O1-5G Outdoor CPE Units
• 2 x 12V Passive PoE Injectors
• 2 x Power Cords (Indian standard)
• 2 x Mounting Kits (Pole/Wall Mount Brackets and Straps)
• 2 x Quick Installation Guides
• 2 x Warranty Cards (2 Years Registration)

Important – Complete Kit: This is a pre-configured 2-pack. Both units are required to establish a point-to-point wireless bridge. Single units sold separately will not function as a complete bridge without additional configuration.

Why Buy from Thencix?

Thencix is India’s trusted source for professional networking solutions. Every router, switch, and CPE is specification-verified, securely packaged, and backed by dedicated after-sales support.

• Authentic products with manufacturer-verified specifications
• Professional, damage-safe packaging
• Fast delivery across India
• GST invoice with every order
• Cash on Delivery available
• Guided installation support via WhatsApp
• In-house warranty assistance — no need to contact the brand directly
• Warranty appointments arranged for you

Support:
Email: support@thencix.com
WhatsApp: +91 98911 50949

Browse our complete catalog of Tenda outdoor CPE, wireless bridges, and networking equipment to find the perfect solution for your connectivity needs.

Ideal Applications

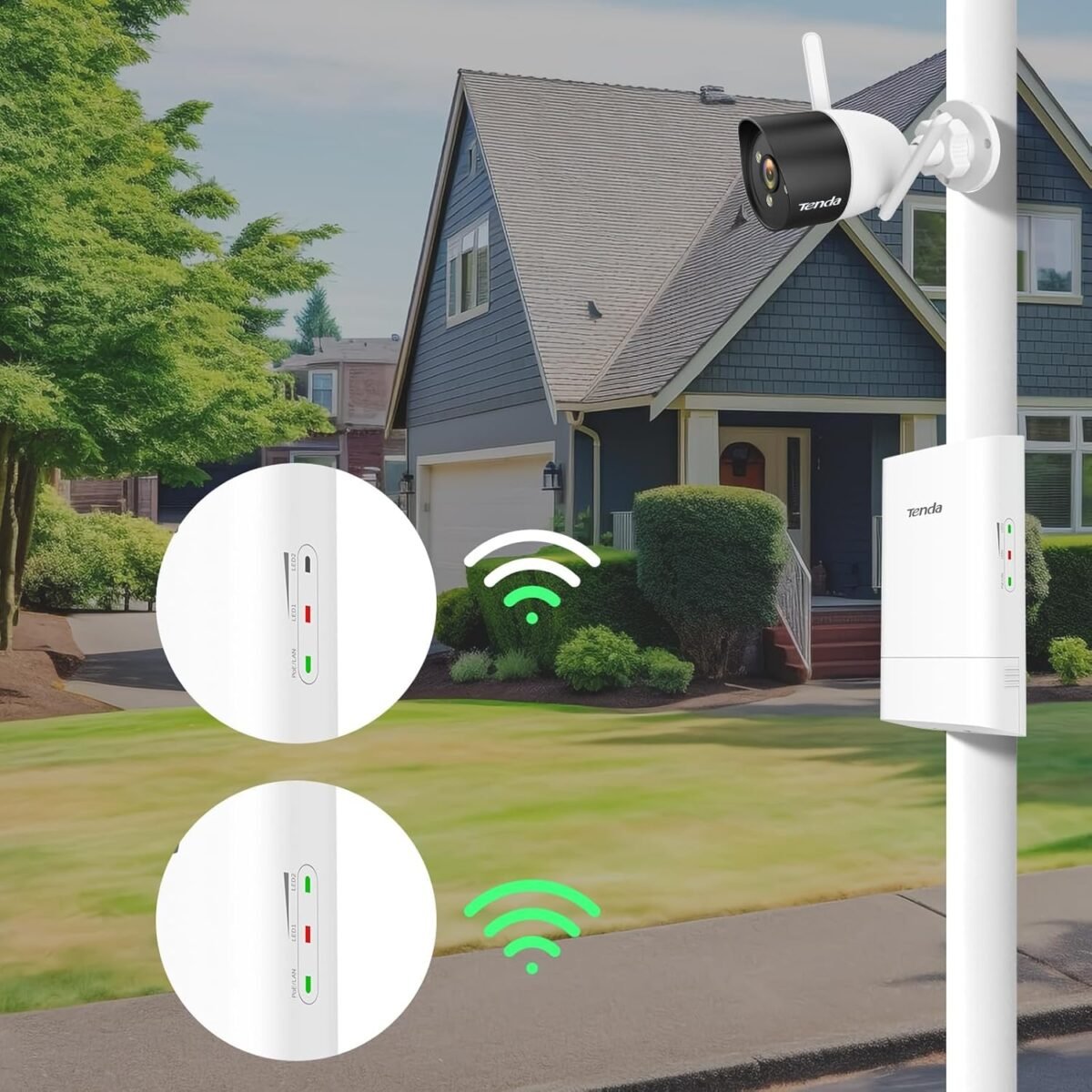

• Video Surveillance Transmission: Connect remote IP cameras to central NVR locations without trenching or cabling – ideal for construction sites, warehouses, and perimeter security
• Inter-Building Connectivity: Link offices, warehouses, or campus buildings for shared internet and network resources
• Rural Internet Access: Receive wireless broadband signals from ISP towers in areas without wired infrastructure
• Temporary Event Networks: Rapidly deploy network connectivity for exhibitions, festivals, and construction sites
• Elevator/Elevator Shaft CCTV Transmission: Reliable wireless link for elevator surveillance systems
• Factory and Industrial Sites: Connect remote monitoring points across large facilities
