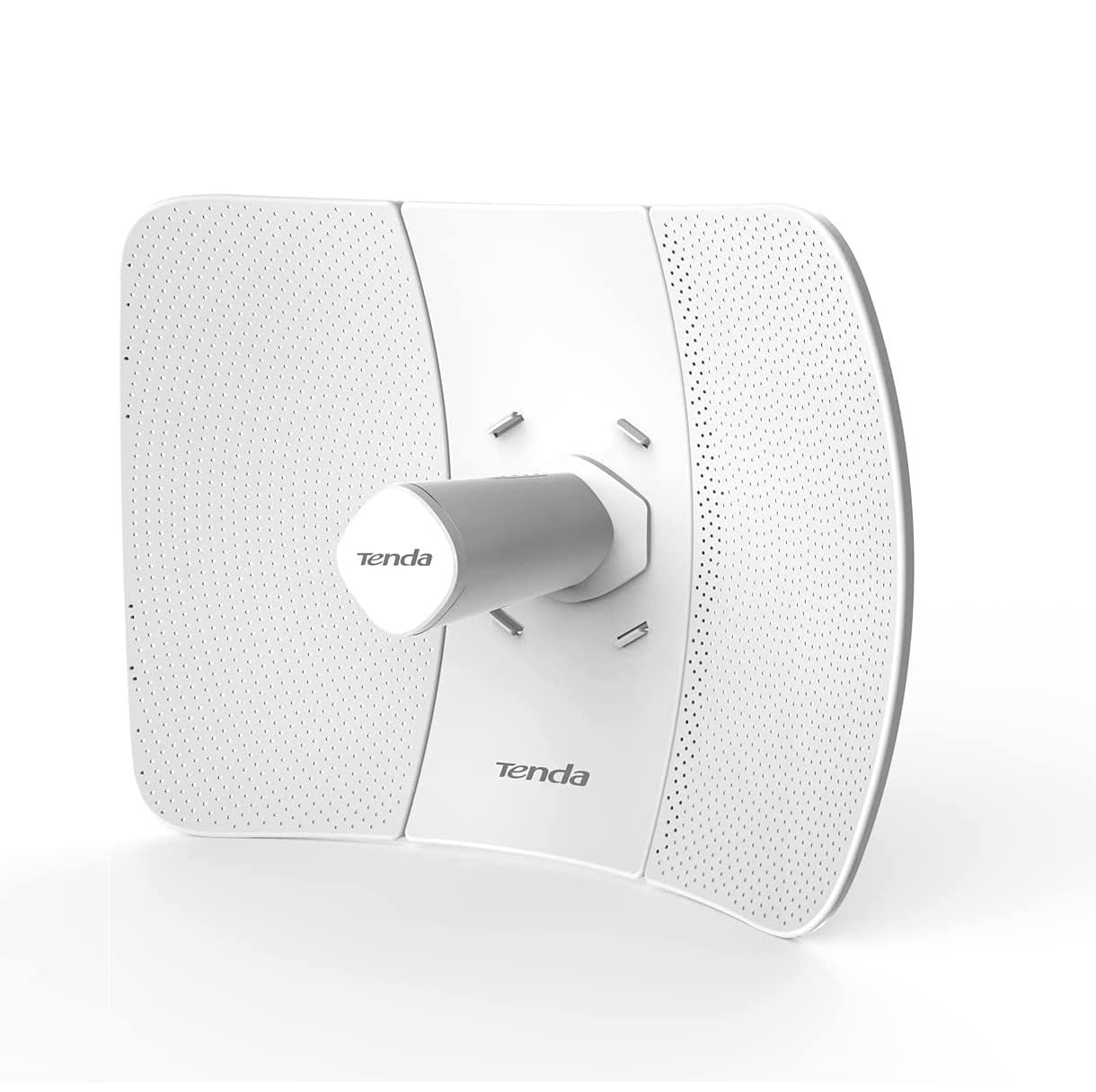

Tenda O8 5GHz Outdoor CPE 23dBi 433Mbps Point to Point Bridge Up To 20km

The Tenda O8 5GHz Outdoor CPE is a professional-grade 23dBi high-gain wireless bridge engineered for long-distance point-to-point and point-to-multipoint networking applications. Delivering up to 433Mbps on the clean 5GHz band with an impressive 20km transmission range, this outdoor Customer Premises Equipment is purpose-built for private ISP wireless connectivity, CCTV surveillance backhaul, and enterprise data transmission where reliable long-range links are essential. With its rugged IP65 weatherproof enclosure, 6000V surge protection, and versatile operating modes, the O8 provides carrier-grade performance in a cost-effective, easy-to-deploy package.

Explore the complete range of Tenda networking solutions at our dedicated Tenda outdoor CPE and wireless bridge collection. Every unit is sourced from authorised channels and carries manufacturer-verified specifications.

Unmatched Long-Distance Performance – 20km Transmission Range

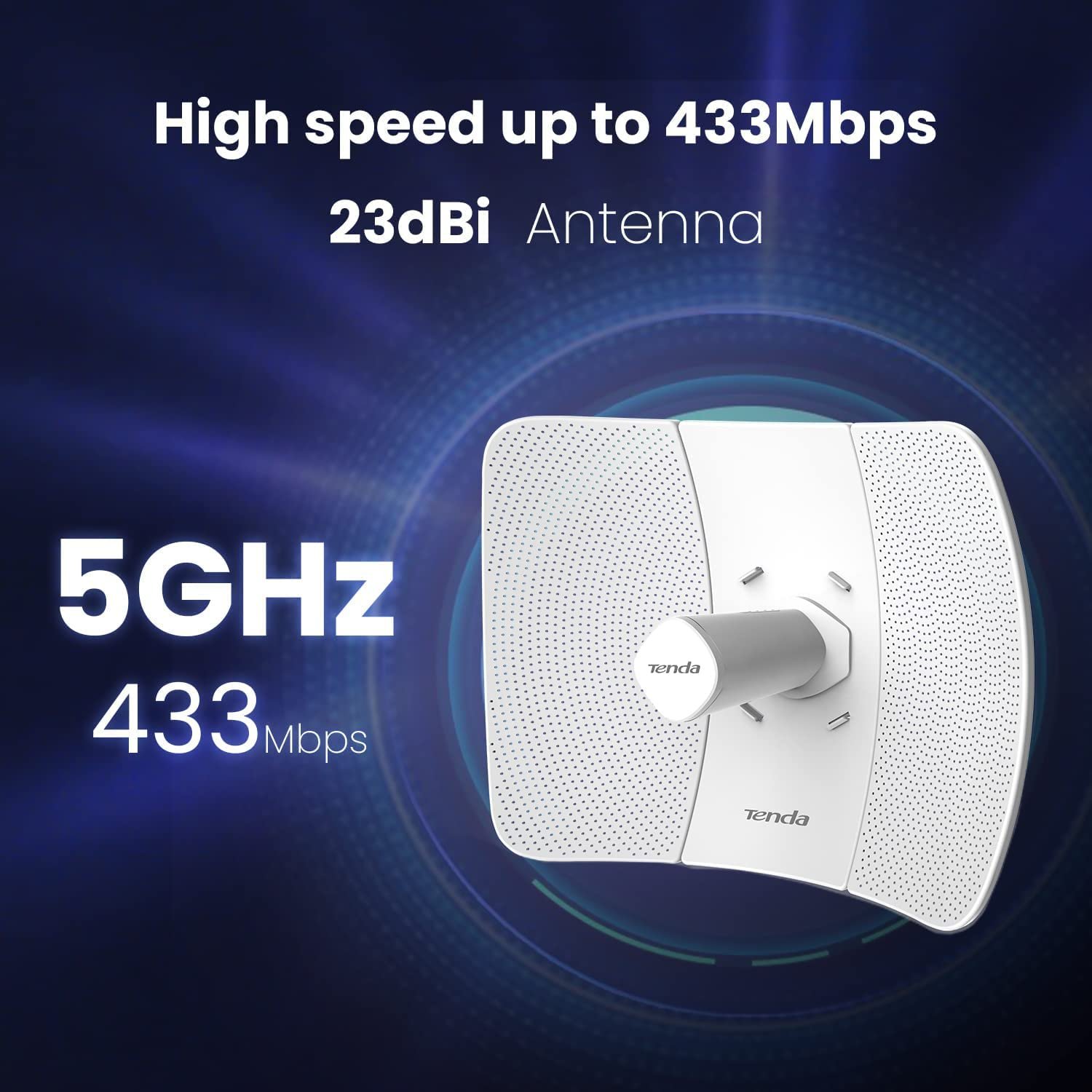

The Tenda O8 is engineered for exceptional range through a combination of advanced hardware components. Each unit features a 23dBi high-gain directional antenna with vertical polarization, paired with an independent 320mW external power amplifier. This powerful combination provides an efficient way to collect and maintain stable signals for wireless network connections extending up to 20 kilometres under optimal line-of-sight conditions. The 10° beamwidth (both vertical and elevation) focuses wireless energy precisely, minimising interference and maximising effective range for critical long-distance links.

For expanding your wireless network infrastructure, explore our range of Tenda routers and networking equipment for complementary indoor coverage.

Auto-Bridge Technology – Simplified Point-to-Point Setup

Traditional wireless bridges often require complex manual configuration and technical expertise. The O8 eliminates this complexity with Tenda’s innovative auto-bridge technology. Two O8 units, when powered on and positioned facing each other, automatically establish a secure point-to-point wireless connection. This feature dramatically reduces installation time for professional integrators and makes long-distance wireless bridging accessible to users with minimal networking experience. One unit operates in AP mode while the other functions as a Station, creating an instant long-distance PtP link for ISP connectivity or surveillance transmission.

Versatile Operating Modes for Multiple Applications

The O8 supports a comprehensive range of operating modes to address diverse deployment scenarios:

• AP Mode (Access Point): Creates a wireless network for client devices
• Station Mode (Client): Connects to an existing wireless network
• WISP Mode (Client + Router): Wirelessly connects to a WISP station/hotspot and shares internet to local wired and wireless networks
• P2MP (Point-to-Multipoint): Base station serving multiple client units
• WDS Repeater Mode: Extends wireless coverage area
• Router Mode: Functions as a complete routing solution

Each mode can be configured with advanced features including SSID hiding, wireless client isolation, channel bandwidth adjustment (20/40/80MHz), and transmit power control adjustable by 1dBm increments.

Technical Specifications

Professional Outdoor Design – IP65 Weatherproof and Surge Protection

The O8 is built to withstand the harshest outdoor environments. Its IP65-rated weatherproof enclosure provides complete protection against dust ingress and water jets from any direction, ensuring reliable operation in rain, snow, and high-humidity conditions. The unit operates flawlessly across an extended temperature range from -30°C to 60°C, making it suitable for diverse Indian climates from the Himalayas to coastal regions.

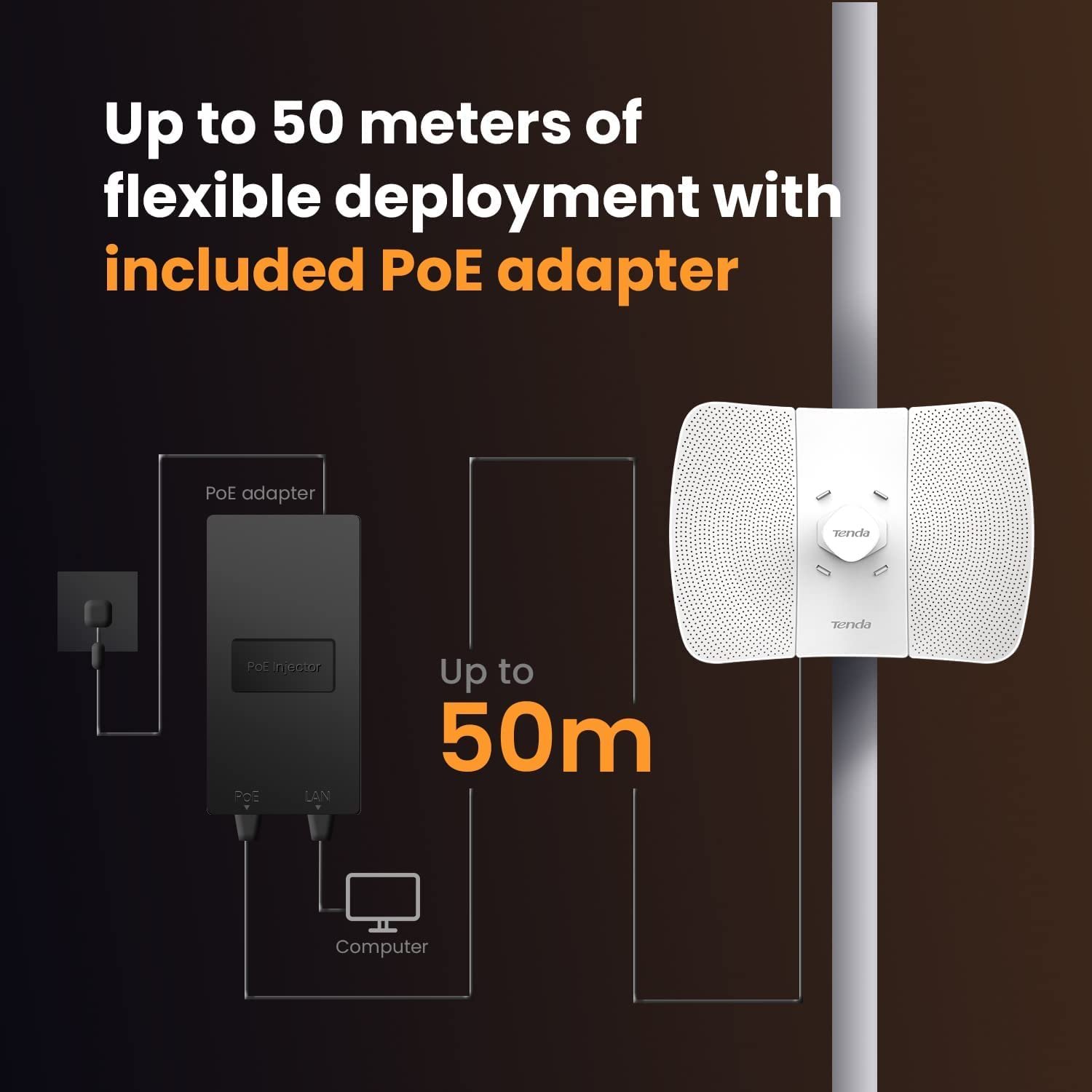

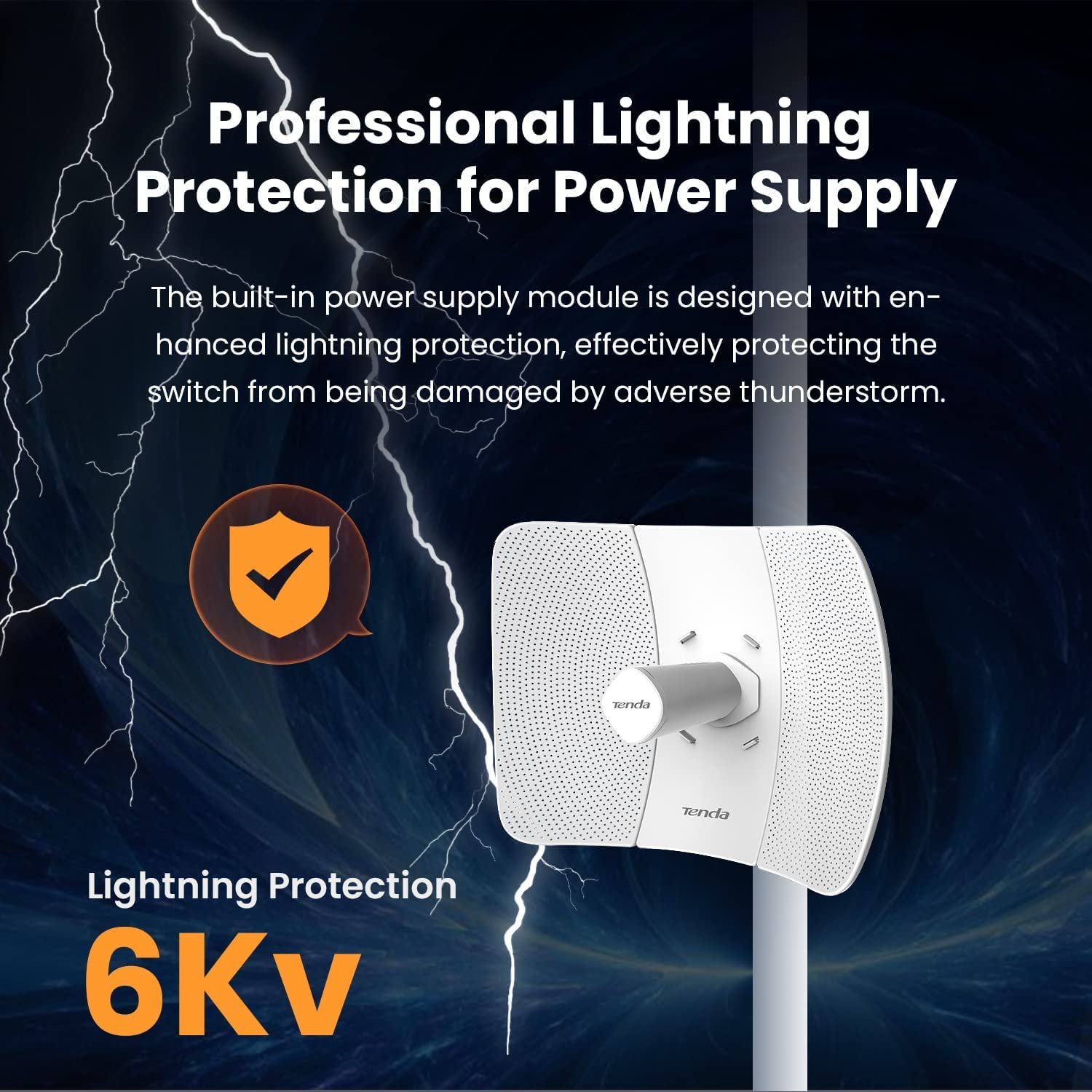

Critical 6000V Ethernet port surge protection safeguards your equipment during thunderstorm seasons, preventing damage from lightning-induced surges and electrical transients. The passive PoE power delivery (12V1A) with 50-metre cable support allows flexible installation at optimal mounting locations without requiring local power outlets.

For additional outdoor installation requirements, browse our selection of outdoor-rated Ethernet cables and weatherproof connectors to complete your deployment.

Advanced TDMA Technology – TD-MAX Protocol

The O8 incorporates Tenda’s proprietary TD-MAX (Time Division Multiple Access) protocol, specifically designed to optimise performance in outdoor WISP applications. In typical outdoor deployments, multiple CPEs connect to a central base station from distances spanning several kilometres. Without coordination, these “hidden nodes” cannot sense each other, leading to simultaneous transmissions that cause collisions, exponentially increasing latency and reducing throughput as the network scales. TD-MAX intelligently coordinates all data transmission, allocating dedicated time slots to active clients and providing significantly greater noise immunity compared to conventional 802.11 CSMA/CA protocols.

Channel Shift Technology – 30% Efficiency Increase

Interference from nearby access points can severely impact wireless performance. The O8 features Channel Shift technology, which offsets the central frequency by 5MHz upward. This simple but effective adjustment avoids interference from neighbouring APs, delivering up to 30% higher throughput compared to standard devices of the same class. Combined with adjustable channel bandwidth (20/40/80MHz), you can optimise your link for either maximum range or maximum speed based on your specific requirements.

Centralized Management with CPE Assistant

For professional installations involving multiple O8 units, Tenda provides CPE Assistant – a powerful centralized management software platform. From a single PC, administrators can:

• Discover all network devices automatically
• Monitor real-time status and signal strength
• Perform bulk firmware upgrades
• Configure multiple units simultaneously
• Access network diagnostics including ping, traceroute, and signal scan
• View system logs and historical performance data

Package Contents

• 1 x Tenda O8 5GHz Outdoor CPE Unit
• 1 x 12V1A Passive PoE Injector
• 1 x Power Adapter

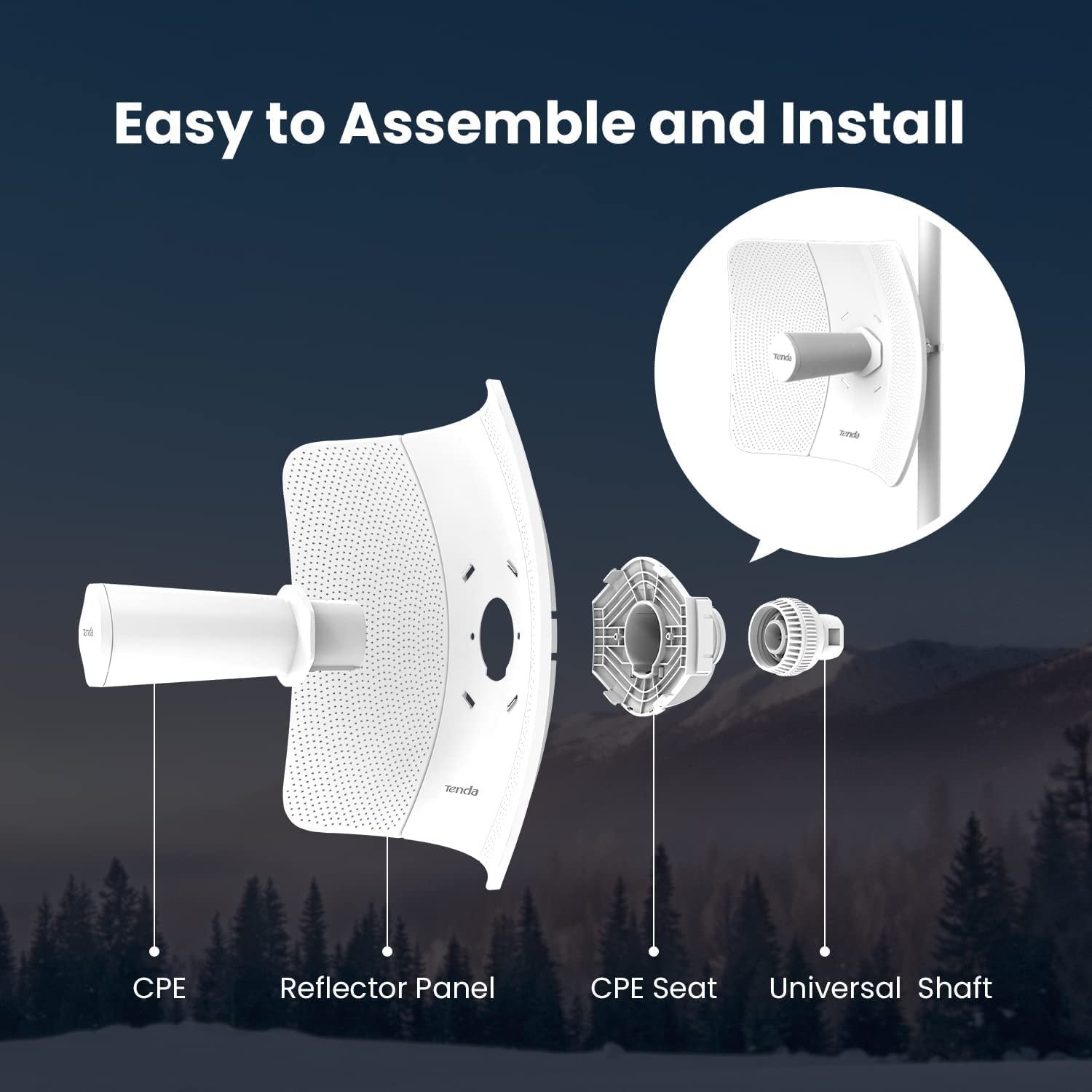

• 1 x Pole Mount Bracket and Hardware
• 1 x Quick Installation Guide
• 1 x Warranty Card (3 Years Registration)

Important – Complete System: This listing includes a single O8 unit. For point-to-point bridging applications, two units are required (one configured as AP, one as Station). The auto-bridge feature simplifies this process when two units are used together.

Why Buy from Thencix?

Thencix is India’s trusted source for professional networking solutions. Every router, switch, and CPE is specification-verified, securely packaged, and backed by dedicated after-sales support.

• Authentic products with manufacturer-verified specifications
• Professional, damage-safe packaging
• Fast delivery across India
• GST invoice with every order
• Cash on Delivery available
• Guided installation support via WhatsApp
• In-house warranty assistance — no need to contact the brand directly
• Warranty appointments arranged for you

Support:
Email: support@thencix.com
WhatsApp: +91 98911 50949

Browse our complete catalog of Tenda outdoor CPE, wireless bridges, and networking equipment to find the perfect solution for your connectivity needs.

Ideal Applications

• Private ISP Wireless Connectivity: Establish last-mile wireless links for internet service providers in underserved areas
• CCTV Surveillance Backhaul: Transmit high-definition video from remote cameras to central monitoring locations without trenching or cabling
• Inter-Building Connectivity: Link offices, warehouses, educational campuses, and industrial facilities up to 20km apart
• Rural Broadband Access: Provide wireless internet connectivity to remote villages and rural communities
• Temporary Event Networks: Rapidly deploy network infrastructure for exhibitions, festivals, and construction sites
• Industrial Monitoring: Connect remote sensors, SCADA systems, and control equipment across large facilities
