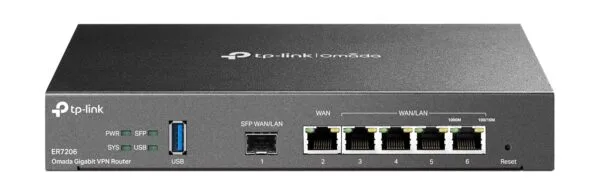

TP-Link ER7206 – Gigabit Multi-WAN VPN Router with Omada Cloud Management

Engineered for demanding small to medium business environments, the TP-Link ER7206 Omada Gigabit VPN Router delivers robust security, reliable multi-WAN connectivity, and scalable centralized management. This high-performance wired router is designed to act as the secure gateway for an entire network, offering powerful VPN capabilities, advanced threat protection, and seamless integration into TP-Link’s Omada Software-Defined Networking (SDN) ecosystem. Whether deployed in a standalone configuration for a single office or centrally managed across multiple branches, the ER7206 provides the professional-grade features and reliability that modern businesses require.

Professional-Grade Multi-WAN Connectivity and Load Balancing

The TP-Link ER7206 excels in providing reliable and flexible internet connectivity. It is equipped with a versatile port configuration that includes one dedicated Gigabit RJ45 WAN port, one Gigabit SFP WAN port (for direct fiber or media converter connections), and two dual-purpose Gigabit WAN/LAN ports. This allows the router to support up to four simultaneous WAN connections. The intelligent Load Balancing feature distributes network traffic across these multiple internet links based on bandwidth proportion, significantly raising overall bandwidth utilization and ensuring optimal performance for all users and applications. Furthermore, the built-in Link Backup functionality provides automatic failover, keeping your business online even if one internet connection fails.

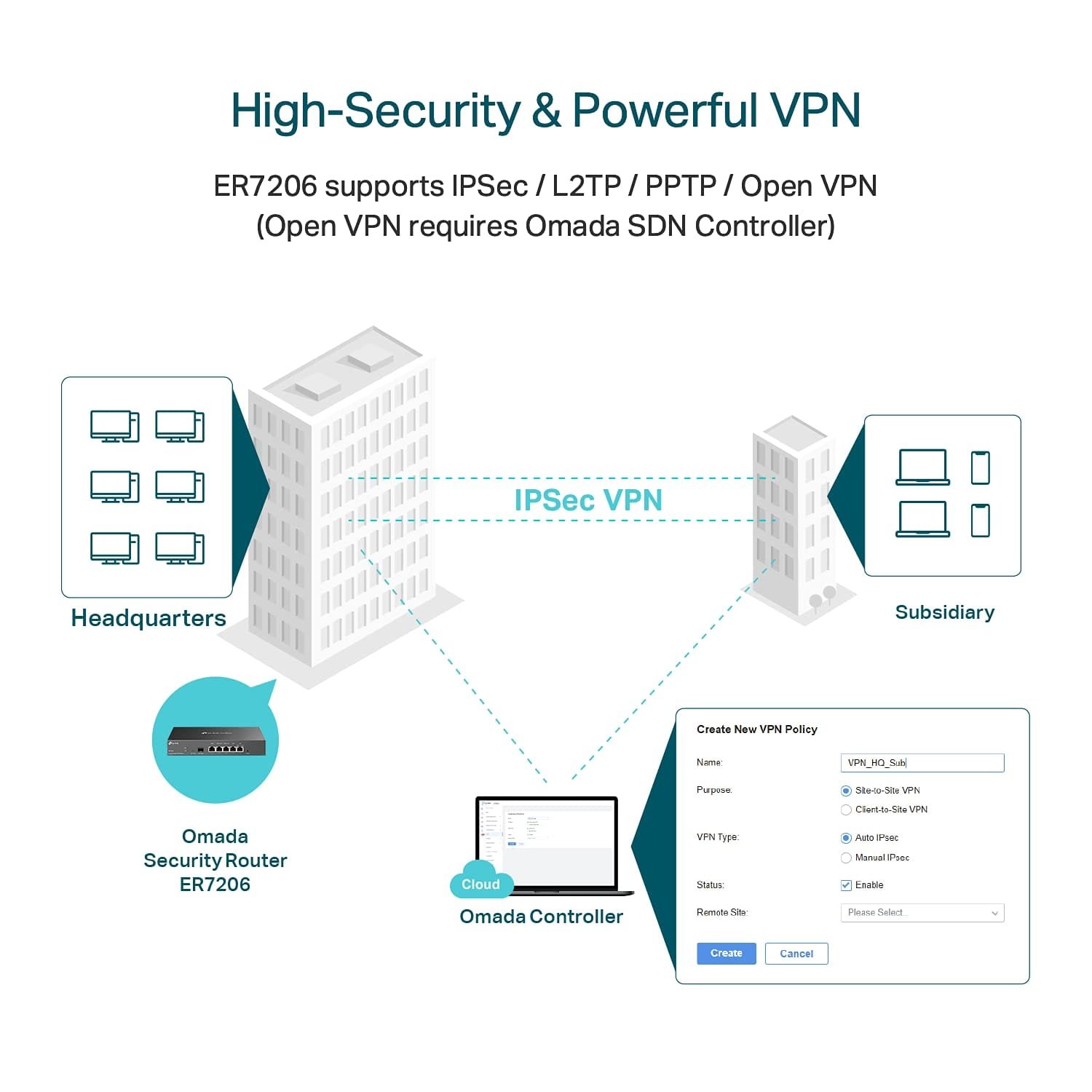

High-Capacity, Secure VPN for Remote Access and Site-to-Site Links

Security and remote connectivity are cornerstone features of the ER7206. With a powerful hardware foundation, it supports a high number of concurrent VPN tunnels, including up to 100 LAN-to-LAN IPsec connections, 50 OpenVPN, 50 L2TP, and 50 PPTP tunnels. This makes it an ideal solution for creating secure connections between headquarters and branch offices or enabling secure remote work. The router supports a wide range of encryption and authentication protocols (including AES-256 and SHA-2) to ensure your data remains protected. One-click auto IPSec VPN configuration greatly simplifies the setup of secure site-to-site connections, facilitating easier network deployment and management.

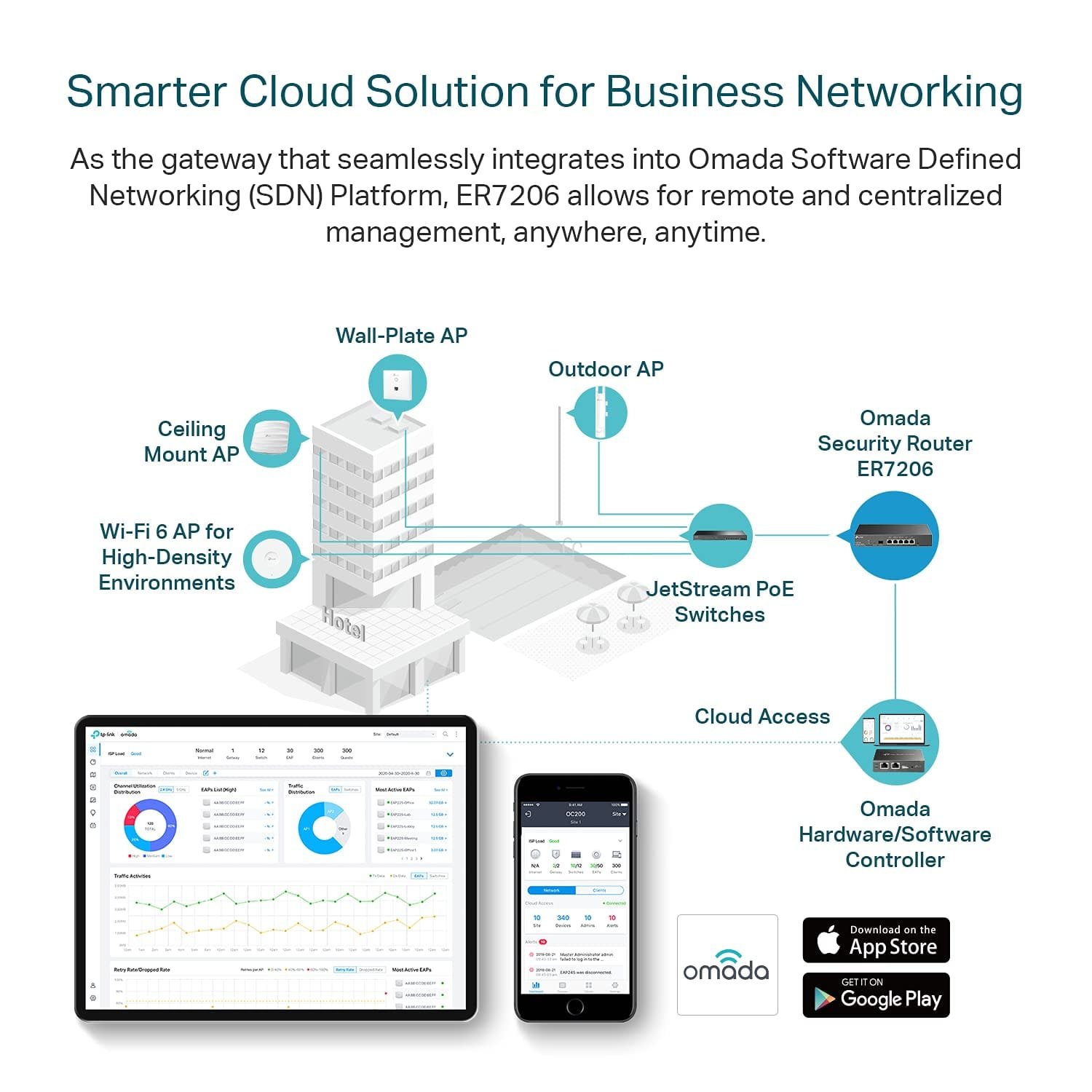

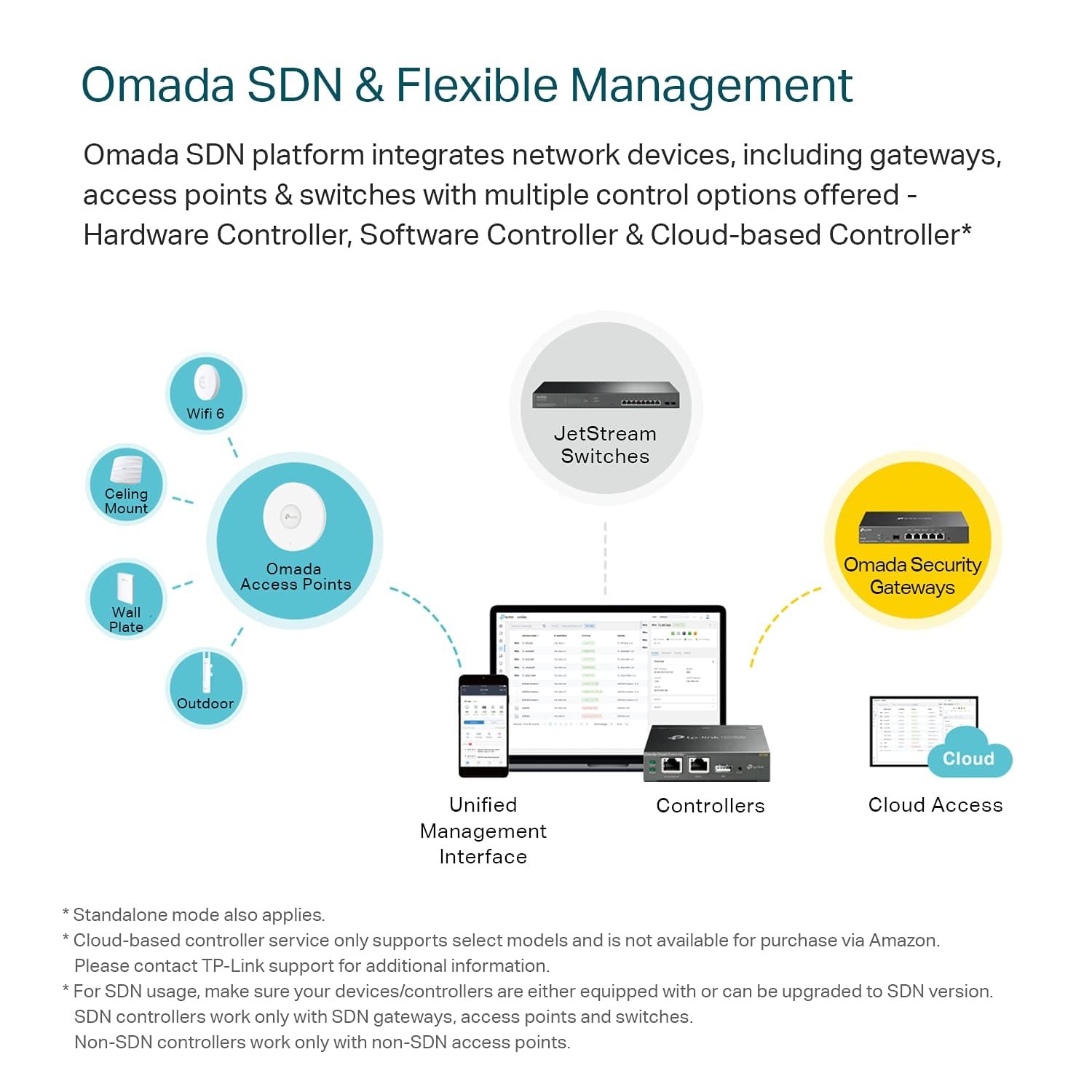

Integrated Omada SDN for Centralized Network Management

The ER7206 is a core component of the TP-Link Omada SDN platform. When used with an Omada controller (hardware, software, or cloud-based), it enables 100% centralized cloud management of your entire network infrastructure—including routers, switches, and access points—from a single interface, from anywhere. This allows for unified configuration, real-time monitoring, and intelligent optimization across multiple sites. For smaller setups, the router functions perfectly in standalone mode, managed directly through its intuitive web interface or the Omada app. This flexibility allows businesses to start simple and scale into a seamlessly integrated system over time. For expanding your managed network, consider pairing it with compatible Omada PoE switches and wireless access points.

Comprehensive Security and Network Control Features

Protecting your network assets is a primary function of the ER7206. It is equipped with a Stateful Packet Inspection (SPI) firewall, Denial-of-Service (DoS) attack defense, and IP/MAC/URL filtering to create a strong first line of defense against external threats. For internal control, features like Access Control Lists (ACL), IP-MAC binding to prevent ARP spoofing, and bandwidth control policies allow administrators to standardize user behavior, prioritize critical applications, and manage network resources efficiently. These tools ensure both security and performance for business-critical operations.

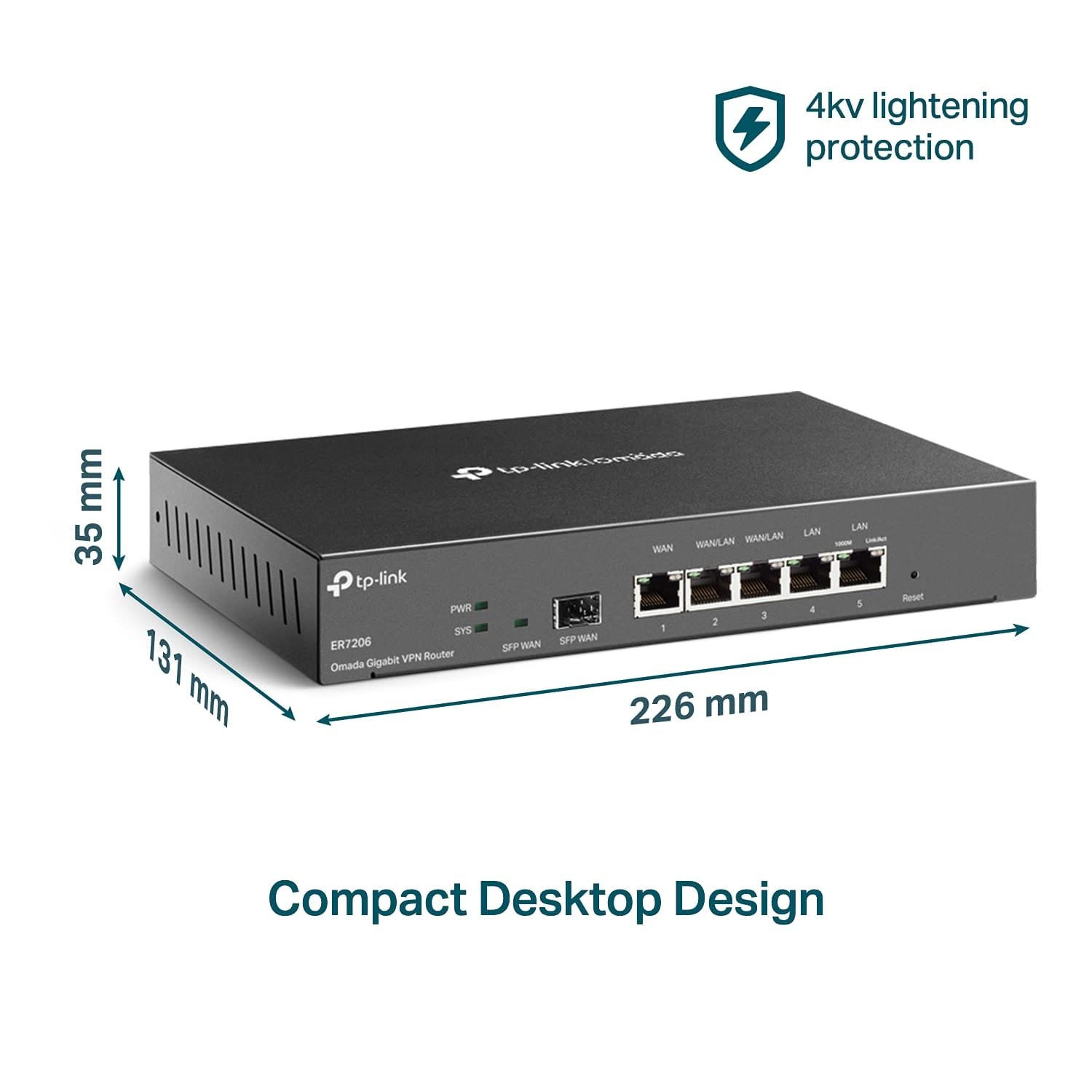

Robust Hardware Design and Performance Specifications

Built for 24/7 reliability, the ER7206 features a sturdy, fanless steel enclosure that ensures silent operation and protects against electrical surges with 4 kV protection. Internally, it is powered by a dual-core processor, 512MB of RAM, and 128MB of flash storage, providing the necessary horsepower to handle a network capacity of up to 150,000 concurrent sessions. Its performance metrics are tailored for business use, with a NAT throughput of over 940 Mbps and a dedicated IPsec VPN throughput to maintain speed even for encrypted traffic.

Technical Specifications

Package Contents

TP-Link ER7206 Router × 1

Power Cord × 1

Quick Installation Guide × 1

Why Buy from Thencix?

Thencix ensures a smooth, reliable and authentic shopping experience backed by verified specifications, secure packaging and dedicated after-sales support.

• Authentic products with verified specifications
• Professional, damage-safe packaging
• Fast delivery across India
• GST invoice with every order
• Cash on Delivery available
• Guided setup support via WhatsApp
• In-house warranty assistance — no need to contact the brand
• Warranty appointments can be arranged for you

Support:
Email: support@thencix.com
WhatsApp: +91 98911 50949

Frequently Asked Questions
