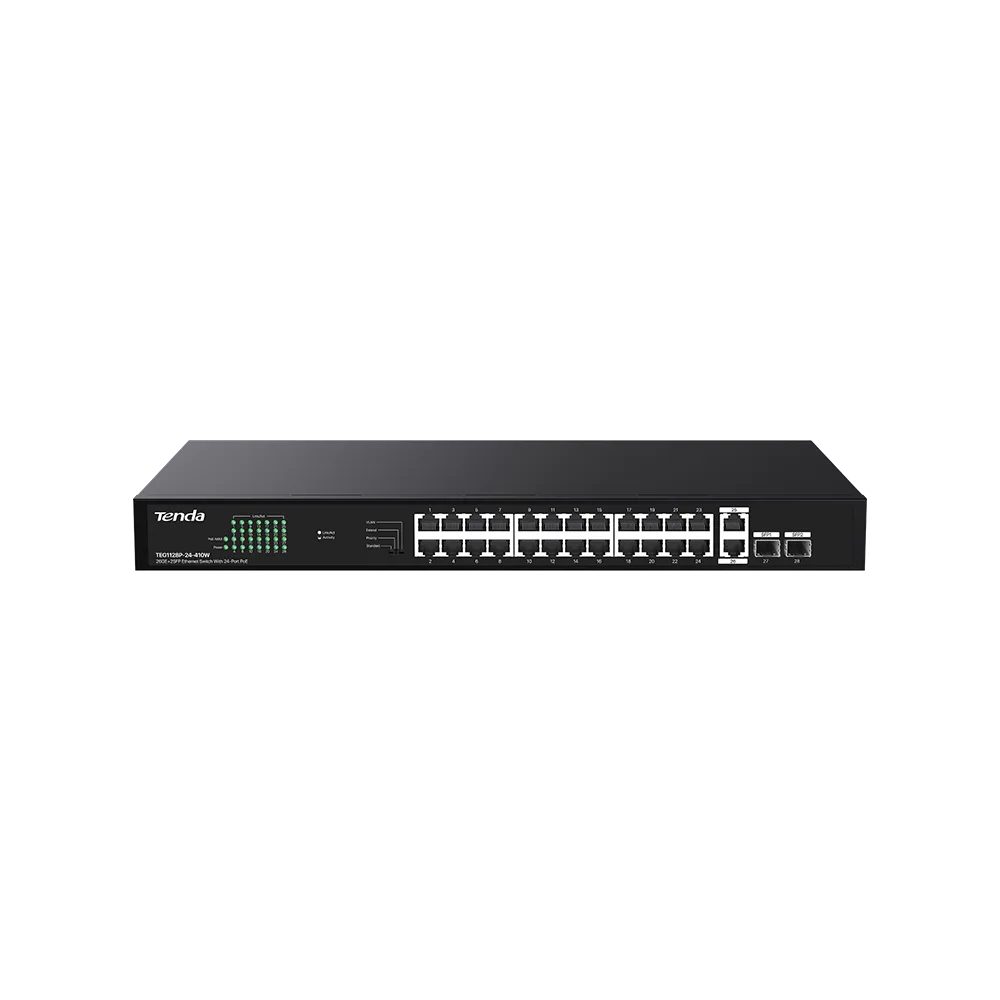

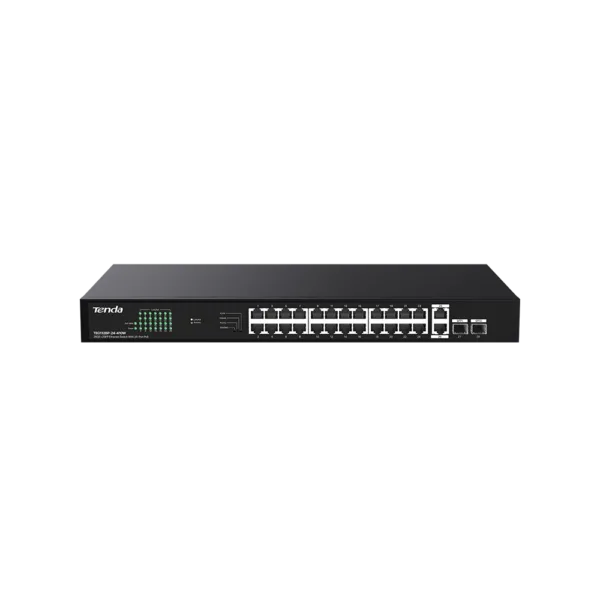

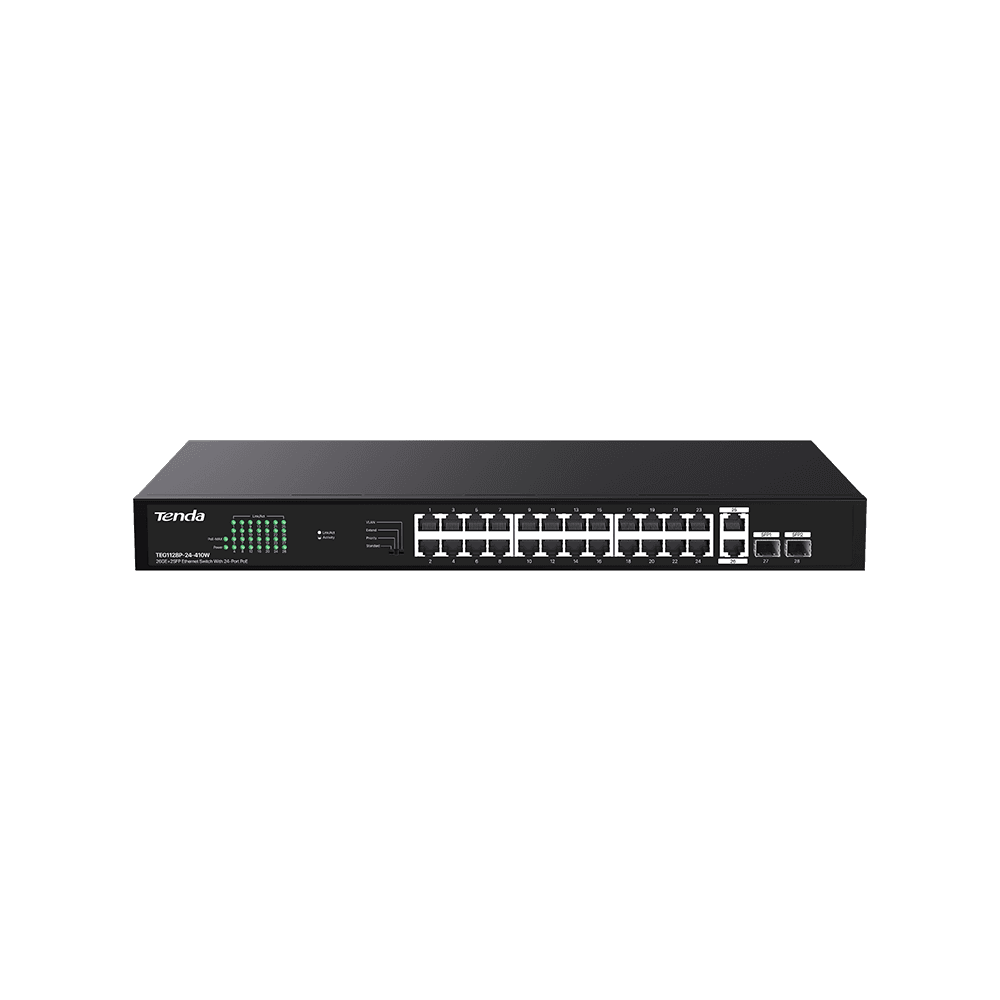

Tenda TEG1128P 26-Port Gigabit Switch with 24× PoE (250W), 2× Uplink Ports & 2× SFP | IEEE 802.3af/at

The Tenda TEG1128P is a versatile 26-port Gigabit Ethernet switch designed for professional networking deployments requiring both Power over Ethernet capabilities and flexible connectivity options. Featuring 24 IEEE 802.3af/at compliant PoE ports with 250W total power budget, plus 2 dedicated gigabit uplink ports and 2 SFP fiber slots, this switch provides comprehensive connectivity for surveillance systems, business networks, and enterprise environments. For complete technical documentation and firmware updates, visit the official Tenda TEG1128P product page.

Comprehensive Port Configuration for Diverse Needs

The TEG1128P offers a well-balanced port arrangement tailored for modern network deployments: 24 PoE-enabled Gigabit Ethernet ports for connecting and powering devices like IP cameras and wireless access points, 2 dedicated non-PoE Gigabit uplink ports for connecting to your main router or network backbone, and 2 SFP (Small Form-factor Pluggable) fiber optic ports for long-distance connections up to several kilometers. This configuration makes it ideal for IP surveillance systems where both local device connectivity and uplink flexibility are required.

Robust PoE Power Management

With a generous 250W total power budget and IEEE 802.3af/at compliance, the switch can deliver up to 30W per PoE port, sufficient for power-hungry devices like PTZ cameras, high-performance access points, and industrial equipment. The intelligent power management system automatically detects and supplies the appropriate power level to each connected device, preventing damage to non-PoE equipment. Administrators can monitor power consumption per port, set power priorities, and schedule PoE operation to optimize energy usage. For complete surveillance system setups, explore our NVR solutions.

Flexible Connectivity with Fiber and Copper Uplinks

The inclusion of 2 dedicated Gigabit Ethernet uplink ports ensures reliable, high-bandwidth connections to your core network equipment without consuming valuable PoE resources. The 2 SFP fiber ports support both 100Mbps and 1000Mbps speeds, enabling connections up to 80km with single-mode fiber or 550m with multi-mode fiber, perfect for building-to-building links or noisy industrial environments where electrical interference is a concern. For additional networking infrastructure, browse our switch collection.

Advanced Management and Security Features

Beyond basic switching, the TEG1128P provides enterprise-grade management capabilities through an intuitive web interface. Features include VLAN support (port-based and 802.1Q) for network segmentation, QoS (Quality of Service) with 8 priority queues for traffic prioritization, IGMP Snooping for efficient multicast streaming, and static routing for basic Layer 3 functionality. Security features include port security, storm control, and Access Control Lists (ACLs) to protect your network from unauthorized access. For complete network hardware solutions, check our components catalog.

Durable Design for Commercial Environments

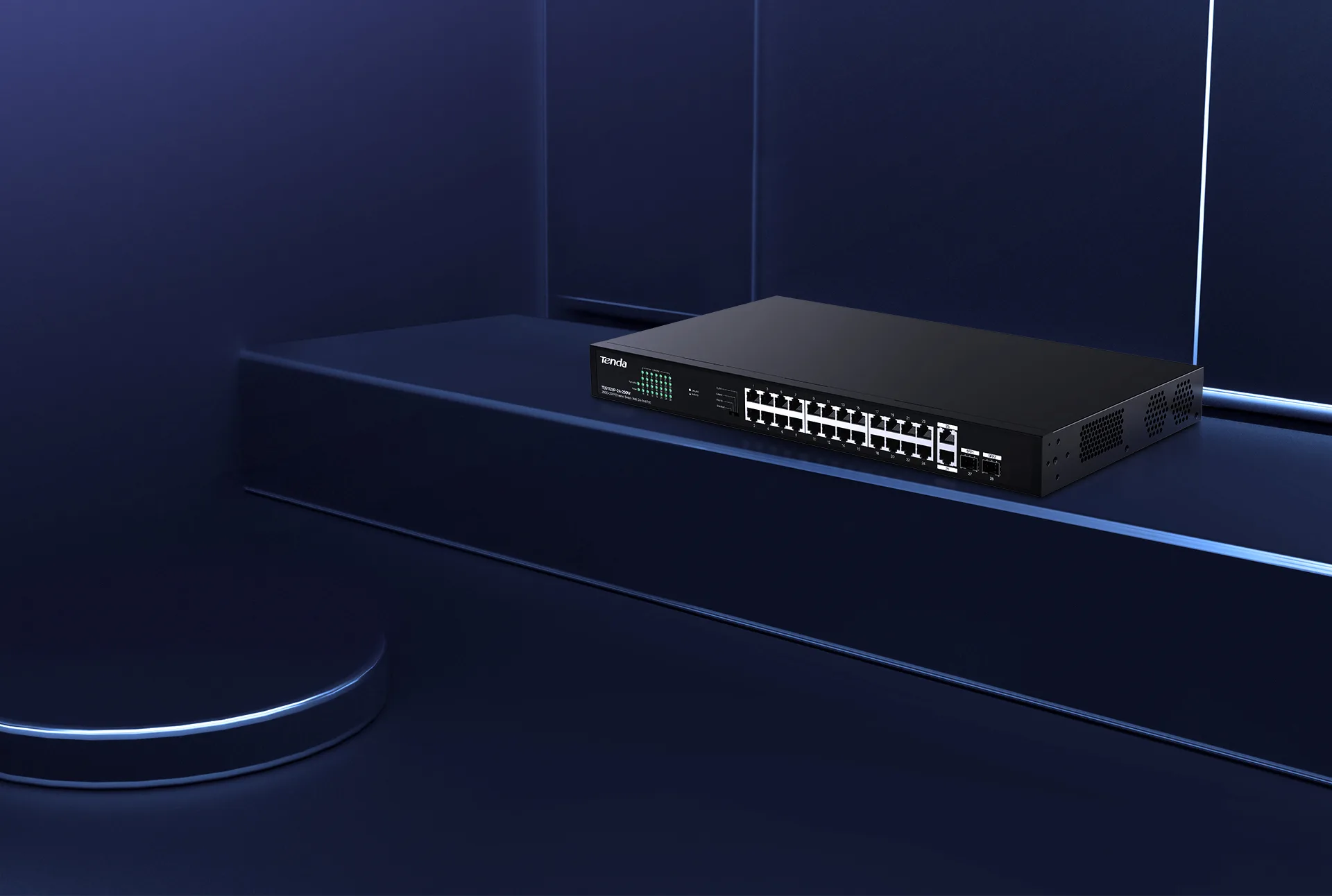

Built with a sturdy all-metal housing, the TEG1128P ensures reliable operation in commercial settings. The compact design (with included rack-mount ears for 19-inch rack installation) saves valuable space while providing optimal heat dissipation. An intelligent temperature-controlled cooling fan adjusts speed based on thermal conditions, maintaining performance while minimizing noise in office environments. The switch operates reliably within 0°C to 40°C, making it suitable for most indoor installations. For wireless networking that complements this switch, explore our access points.

Technical Specifications

Package Contents

Tenda TEG1128P 26-Port Gigabit Switch × 1

Rack Mount Ears with Screws × 1 set

Rubber Feet × 4

Power Cord × 1

Quick Installation Guide × 1

Warranty Card (3 Years) × 1

Typical Deployment Scenarios

• IP Surveillance Systems: Power and connect up to 24 PoE cameras while using uplink ports for NVR connection and SFP ports for remote monitoring station links
• Business Networks: Provide connectivity to workstations, VoIP phones, and access points with dedicated uplinks to core infrastructure
• Educational Campuses: Deploy in computer labs or administrative areas with fiber connections to main network backbone
• Retail Environments: Support POS systems, security cameras, digital signage, and inventory management with proper traffic prioritization
• Small/Medium Business: Serve as the main access layer switch with growth capability through SFP fiber expansion
