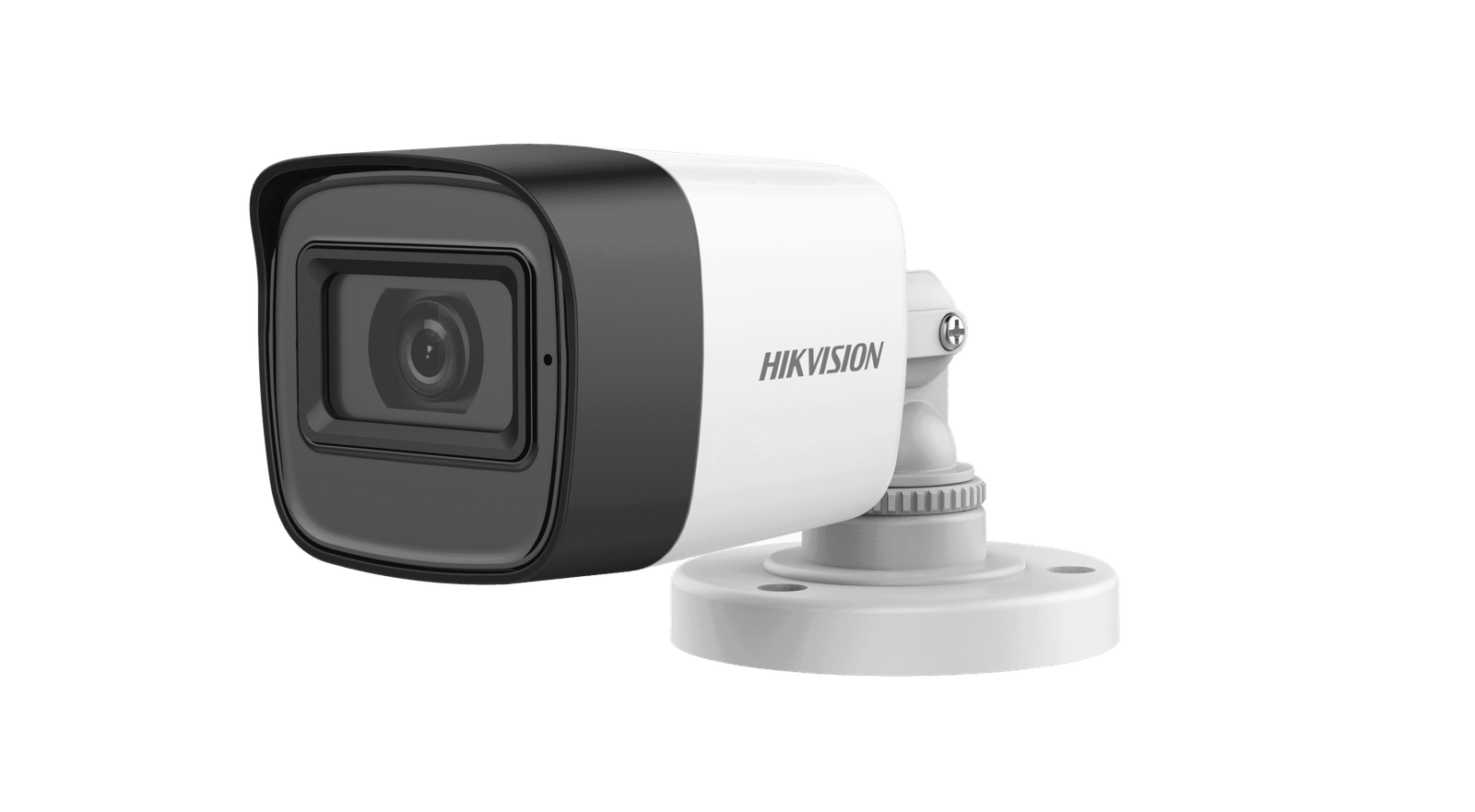

Hikvision DS-2CE16D0T-ITPFS 2MP Turbo HD Fixed Bullet Camera with Built-in Mic (2.8mm / 3.6mm)

The Hikvision DS-2CE16D0T-ITPFS is a practical, purpose-built 2-megapixel Turbo HD bullet camera with integrated audio, designed to deliver crisp Full HD video plus synchronized audio in a compact, weather-resistant package. Combining proven Turbo HD imaging, choice of 2.8mm or 3.6mm fixed lenses, smart infrared illumination, and IP66-rated housing, this model is engineered for real-world surveillance deployments where audio adds context to visual evidence — retail stores, offices, small warehouses, gated residences and branch sites. It is optimized for retrofit projects and installers who need a reliable, cost-effective camera that integrates seamlessly with existing DVR infrastructure.

Practical value: full HD video plus audio in one compact unit

Many site investigations require both visual and acoustic evidence. The DS-2CE16D0T-ITPFS addresses that need by combining a high-quality 2MP image sensor capable of 1080p resolution with a built-in microphone for on-device audio capture. This means recorded video files contain synchronized soundtracks that can expedite incident review, improve situational awareness and provide corroborating evidence for incident resolution. For businesses and facility managers evaluating options like “ds 2ce16d0t itpfs price” or “ds-2ce16d0t-itpfs (3.6mm) (audio)”, this integrated approach reduces the need for separate audio recorders or additional wiring, lowering installation time and overall project cost.

Lens choices for tailored coverage

The camera is supplied with your choice of fixed lens: 2.8mm for wide-angle coverage or 3.6mm for a narrower, more focused field of view. The 2.8mm unit is ideal for monitoring small retail floors, lobbies and wide corridors where broad coverage is prioritized. The 3.6mm unit is preferable for identifying faces or license plates at moderate distances or for targeted monitoring of doorways and passageways. Installers should select the lens variant that matches mounting height and target distances to ensure optimal scene framing and identification capability.

Turbo HD multi-format compatibility — simple upgrades and broad DVR support

A major advantage of the DS-2CE16D0T-ITPFS is its support for multiple analog HD formats: HDTVI, AHD, CVI, and legacy analog CVBS. This multi-format flexibility allows integrators to deploy the camera as a direct replacement for older analog cameras without rewiring or wholesale DVR replacement. When migrating a site to higher resolution incrementally, hybrid recorders accept these cameras, enabling staged upgrades that preserve investment in coax cabling and existing infrastructure. The camera’s OSD/UTC switching simplifies field configuration so installers can match the recorder format quickly.

Night performance: Smart IR for balanced illumination

In low light, the DS-2CE16D0T-ITPFS automatically switches to black-and-white IR mode and activates its smart IR LEDs to illuminate the scene. The camera’s smart IR control adjusts LED intensity to reduce overexposure of close objects while preserving contrast for distant subjects. Typical night-time effective ranges for this class are up to approximately 15–25 meters depending on the scene reflectivity and lens choice; installers should set expectations based on mounting height and environment. For critical low-light applications, pairing the camera with supplemental lighting or switching to an IR-optimized lens will extend effective recognition ranges.

Audio capture specifics and privacy considerations

The integrated microphone captures ambient audio in the camera’s vicinity. Audio is delivered to the recorder as an embedded or separate track depending on DVR capabilities and cabling. When enabling audio recording, administrators must consider local privacy and legal requirements: jurisdictions may require explicit notice that audio is being recorded or may restrict audio capture in certain spaces. Always follow local regulations and internal privacy policies; provide clear signage where required and configure access control so only authorized personnel can playback synchronized audio/video content.

Robust build for indoor/outdoor reliability

The DS-2CE16D0T-ITPFS is housed in a sturdy bullet enclosure with IP66 ingress protection for resistance against dust and rain. The design features a tamper-resistant mount and integrated cable routing to minimize tampering risk and to protect connectors from moisture. The camera is rated for a broad operating temperature range, making it suitable for both temperate and tropical conditions; however, for deployments in extreme climates or corrosive environments, follow vendor guidelines and consider additional environmental protection accessories.

Installation and wiring practicality

This camera is designed for fast installs. It runs on standard 12 V DC power (or PoC/PoE variants where supported by the product family), and video/audio signals are carried over coax to compatible Turbo HD DVRs. For audio capture, check the recorder’s audio input architecture: some DVR models accept direct camera audio over dedicated BNC/AUX inputs, while others accept audio as embedded over compatible hybrid inputs. Use high-quality coaxial cable (RG-59/6) with solid copper core and short audio leads to reduce noise. For longer runs, consider balanced audio amplifier options or use IP cameras with network audio for longer distance.

Performance tuning and configuration tips

• Match the lens variant to mounting height and target distance: use 2.8mm for wide coverage, 3.6mm when identification at moderate distance is a priority.
• Configure Smart IR sensitivity to avoid overexposure in environments with reflective surfaces (glass, polished floors).
• Choose the correct video format via the OSD/UTC to ensure compatibility with your DVR; default format may vary by region.
• When enabling audio, validate levels on the recorder and perform a short test recording to confirm synchronization and intelligibility.
• Use surge protection and UPS for mission-critical sites to avoid data corruption during power events.

Integration scenarios and recommended pairings

Typical pairings for common installations include: (a) retail shopfloors — DS-2CE16D0T-ITPFS (2.8mm) + 16-channel Turbo HD DVR + 2–4 TB surveillance HDD; (b) office lobbies — DS-2CE16D0T-ITPFS (3.6mm) + edge-storage NVR + HDMI 1080p monitor; (c) small warehouses — DS-2CE16D0T-ITPFS with additional IR flood lighting and PoC DVR to simplify cabling.

Maintenance and lifecycle guidance

To keep the system reliable, schedule periodic checks: verify the camera’s field of view, check audio levels and cable terminations, confirm firmware currency, and inspect the mount for corrosion or loosening. Clean the lens with a lint-free cloth and mild cleaner as needed. Track device serial numbers in an asset register and retain original box/labeling for warranty and RMA procedures.

Regulatory and datasheet verification

The DS-2CE16D0T-ITPFS family has variations across regions and firmware revisions; exact values for IR LED count, power consumption, and supported video frame rates may vary. For procurement and certification, always consult the official product datasheet or request the ds-2ce16d0t-itpfs pdf from your distributor. Thencix validates SKU details and can attach the official datasheet to the product page upon request.

Frequently Asked Questions

Does the DS-2CE16D0T-ITPFS record audio natively?

Yes. The model includes a built-in microphone to capture audio. Confirm how audio is ingested on your DVR/NVR as integration methods differ by recorder model.

Which lens should I choose — 2.8mm or 3.6mm?

Choose 2.8mm for broader scenes (storefronts, lobbies) and 3.6mm when you need tighter framing and improved identification at medium distance (doorways, corridors).

Is the camera suitable for outdoor mounting?

Yes — with IP66 protection the camera resists dust and rain. Use recommended mounting accessories and follow installation practices to protect cables and connectors.

What is the effective IR range?

Typical effective IR coverage for this class is up to approximately 15–25 meters depending on lens, installation height, and scene reflectivity; consult the datasheet and conduct a site test to confirm recognition ranges.

Can it work with non-Hikvision DVRs?

Yes. Multi-format output (TVI/AHD/CVI/CVBS) allows the camera to operate with many DVR brands. Use the OSD/UTC to set the correct output format for your recorder.

Technical specifications

Note: Some numerical items (exact power consumption, IR LED count, and chassis dimensions) may vary by manufacturing batch or regional SKU. For procurement and project planning, request the official DS-2CE16D0T-ITPFS datasheet (PDF) and firmware manifest; Thencix can attach the file to the product page on request.
