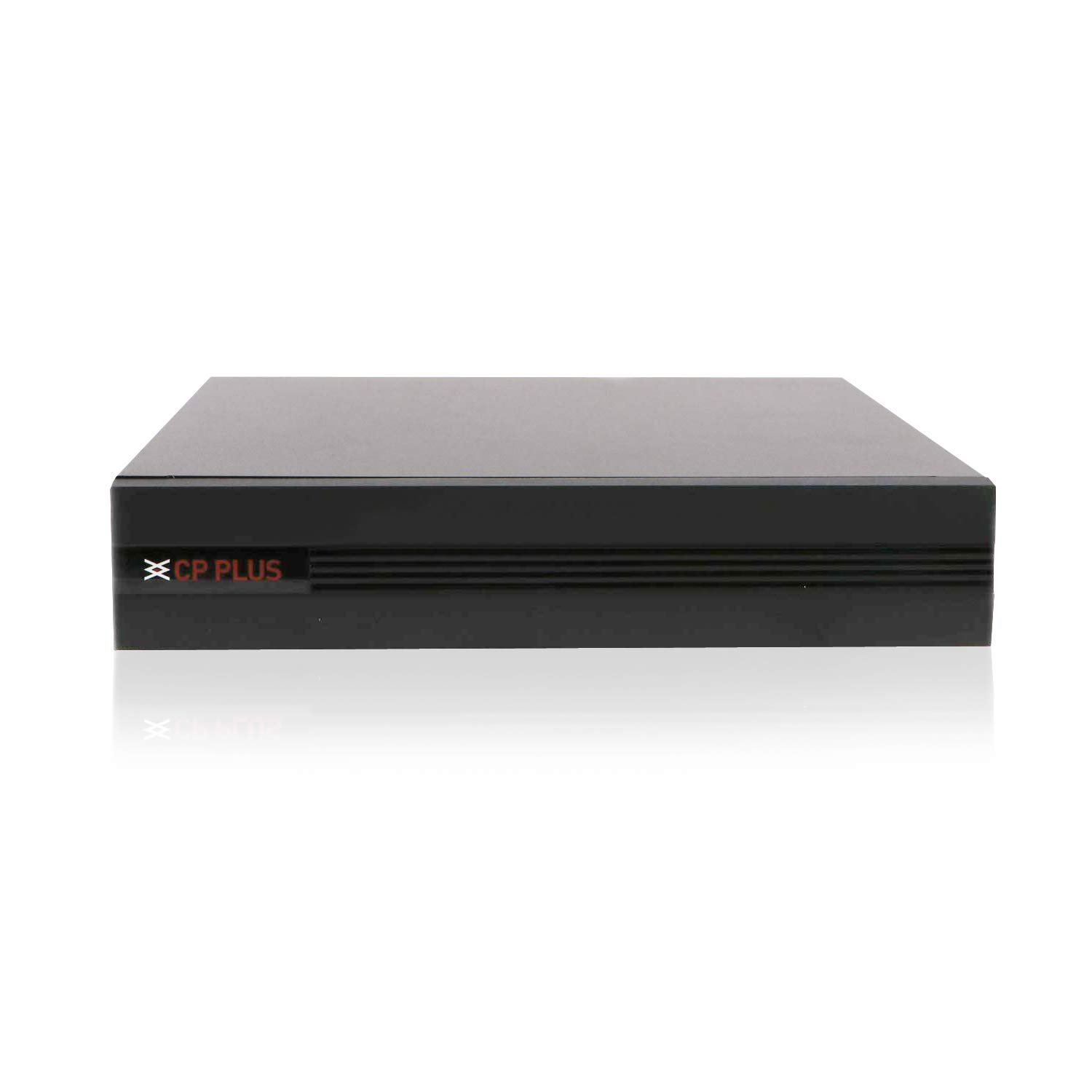

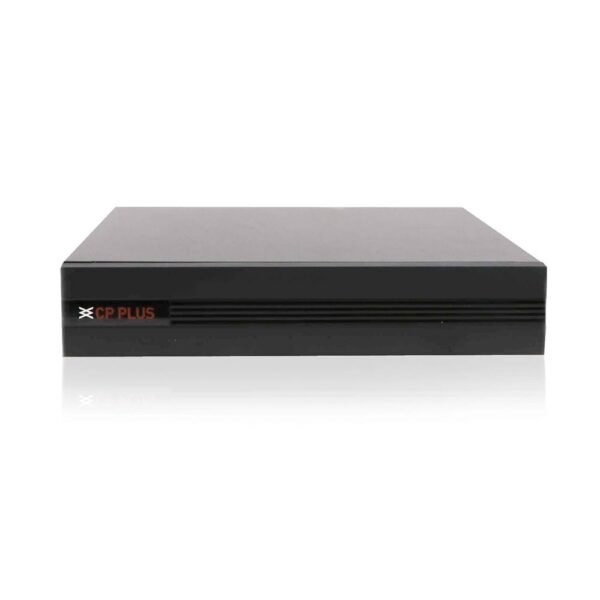

CP PLUS CP-UVR-0801E1-CV2 8 Channel 1080P Full HD Digital Video Recorder with H.265+ Lite Series

The CP PLUS CP-UVR-0801E1-CV2 is a high-performance 8-channel 1080P Full HD digital video recorder from CP PLUS’s innovative Lite Series. Engineered for professional surveillance applications, this DVR integrates 4K processing capabilities and H.265+ encoding technology to deliver exceptional video quality at a budget-friendly price point. Supporting HDCVI, AHD, TVI, CVBS, and IP video inputs, the CP-UVR-0801E1-CV2 offers unparalleled flexibility for hybrid surveillance systems. With advanced features including multi-signal auto-detection, secured password protection, and remote mobile access via iCMOB/gCMOB apps, this DVR provides a comprehensive security solution for retail stores, offices, educational institutions, and residential applications .

Explore the complete range of CP PLUS surveillance solutions at our dedicated CP PLUS DVR and security collection. Every unit is sourced from authorised channels and carries manufacturer-verified specifications.

CP-UVR-0801E1-CV2 Overview – Lite Series 8 Channel DVR

The CP PLUS CP-UVR-0801E1-CV2 is part of the Lite Series DVRs, which have been integrated with 4K resolution processors and H.265 encoding technology to bring out every little detail in surveillance footage. The intuitive shortcut operation menu allows you to control and manage the system remotely, while the DVR can function as edge storage, central storage, or backup storage depending on your deployment needs. The highly compatible design supports third-party devices, making this product the ideal solution for diverse surveillance requirements across public safety, transportation, city centers, educational facilities, and other institutions .

Video Input and Hybrid Camera Support

This 8-channel DVR offers exceptional flexibility with support for multiple video input formats:

• Analog Video Input: 8 BNC ports supporting HDCVI, AHD, TVI, and CVBS (analog) video signals
• IP Camera Expansion: Up to 10 channels IP camera inputs (8+2 configuration)
• IP Camera Resolution: Each IP channel supports up to 6MP resolution
• Incoming Bandwidth: Maximum 40 Mbps for smooth video streaming
• UNI+ Technology: Automatically recognizes signal types (CVI, TVI, AHD, CVBS) and adapts without manual intervention – eliminates signal compatibility concerns

This hybrid design allows you to mix analog and IP cameras in a single system, providing the flexibility to upgrade gradually or incorporate specialized IP camera features like two-way communication, edge storage, or alarm I/O .

For expanding your camera network, explore our range of CP PLUS IP cameras and analog HD cameras compatible with this DVR.

1080P Full HD Recording and H.265+ Compression

The CP-UVR-0801E1-CV2 delivers professional-grade video quality with multiple recording resolutions:

• Recording Resolution: 1920×1080, 1280×1024, 1280×720, 1024×768
• Frame Rate: 25fps (PAL) recording capability
• Video Compression: Supports H.265+, H.265, H.264+, and H.264
• Instastream Technology: Optimizes bandwidth and storage efficiency without compromising video quality
• Main Stream Resolution: 8-channel: the 1st channel 1080N/720p(1fps–25/30fps), others 1080N/720P (1fps–15fps); 960H/D1/CIF/(1fps–25/30fps)
• Sub Stream Resolution: 8-channel: CIF (1fps–7fps)

The advanced H.265+ compression reduces storage requirements by up to 50% compared to standard H.264, allowing longer retention periods without additional hard drive investment .

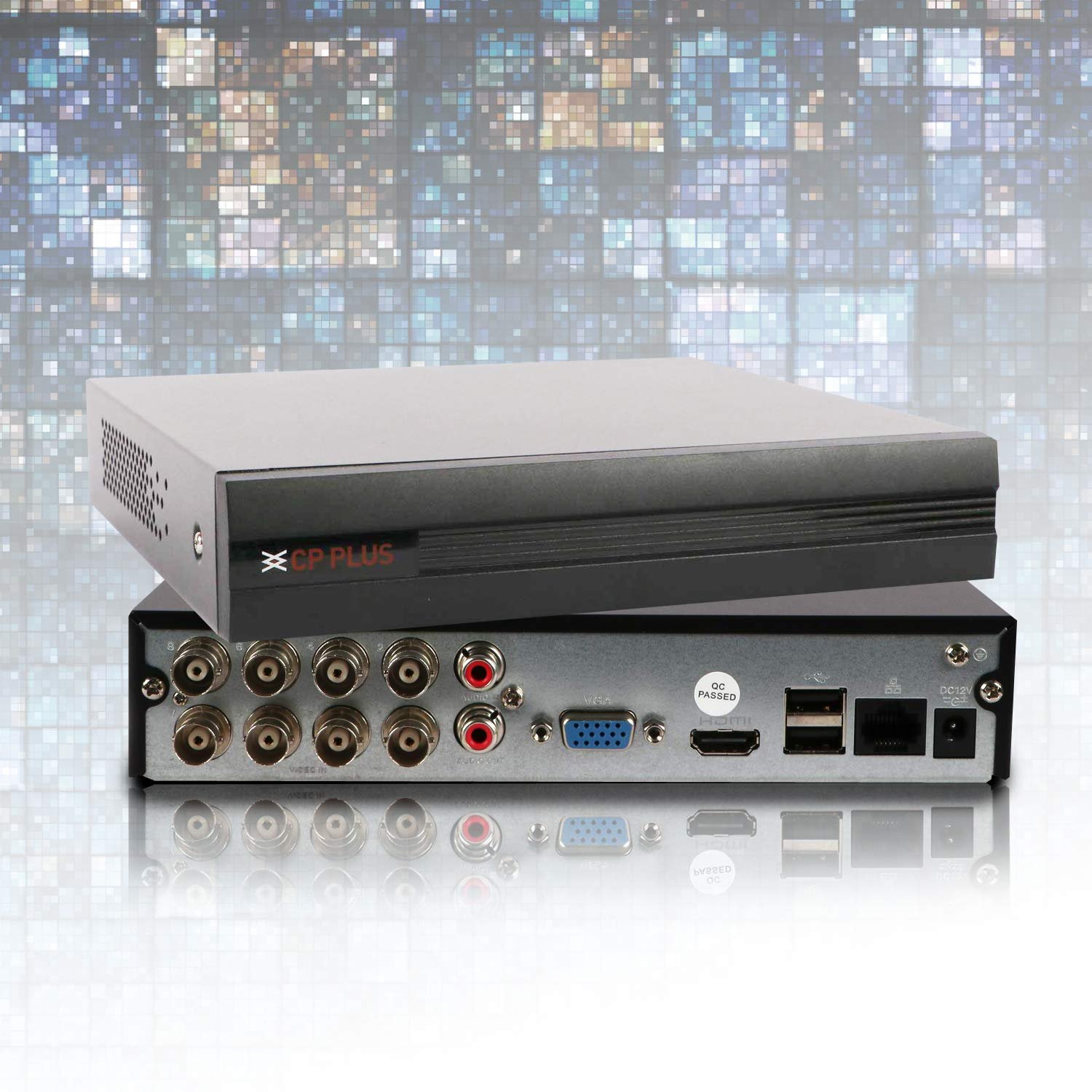

Storage and Connectivity

The DVR provides robust storage and connectivity options for comprehensive surveillance management:

• Hard Disk Support: 1 SATA port supporting up to 6TB HDD
• USB Ports: 2 x USB 2.0 ports for mouse operation and backup
• Video Outputs: 1 HDMI and 1 VGA simultaneous video output
• Network Interface: 1 RJ-45 Ethernet port (100Mbps)
• Audio Input/Output: 1 channel RCA audio input, 1 channel RCA audio output
• Audio Compression: G.711A, G.711U, PCM
• Two-Way Talk Support: Enables real-time communication when used with compatible cameras

Important Note: The DVR unit does NOT include a hard drive. HDD must be purchased separately . The package includes SATA and SATA power cables along with HDD mounting screws for easy installation .

Technical Specifications

Note on Camera Compatibility: This DVR supports 2MP cameras on analog channels and up to 5MP IP cameras . Customer reviews confirm compatibility with Coral 1 MP cameras, Indigo series 2.4MP cameras, and various 2MP cameras .

Advanced Security and Management Features

The CP-UVR-0801E1-CV2 incorporates multiple layers of security and intelligent management capabilities:

• Secured Password Policy (SPP): Mandatory default password change to alphanumeric combination protects against hacking and unauthorized access
• Signal Auto-Adapt: UNI+ technology automatically detects and adapts to incoming signal types without manual configuration
• Privacy Masking: 4 rectangular zones per camera for selective area blocking
• Motion Detection: Configurable detection areas with trigger events including recording, PTZ presets, email alerts, and push notifications
• Video Loss and Tampering Alarms: Instant alerts when cameras are obstructed or disconnected
• Recording Modes: Manual, Schedule (Regular/Continuous), Motion Detection, Alarm, Stop
• Search Modes: Time/Date search, Motion Detection search, Smart search for efficient footage retrieval

Remote Access and Mobile Applications

Stay connected to your surveillance system from anywhere with CP PLUS’s comprehensive remote access solutions:

• iCMOB/gCMOB Apps: iOS and Android applications for live viewing, playback, and system management
• InstaOn Cloud Support: Easy P2P connectivity without complex network configuration
• Two-Way Talk: Real-time audio communication via compatible cameras
• Digital Zoom: Zoom in during live viewing and playback for detailed examination
• Up to 16 Split Views: Monitor multiple cameras simultaneously on mobile devices
• KVMS Pro Software: Centralized management system for multiple CP PLUS devices including cameras, DVRs, NVRs, encoders, and decoders

Package Contents

• CP PLUS CP-UVR-0801E1-CV2 8 Channel 1080P Full HD DVR (main unit)
• Power Adapter (12V DC, 1.5A)
• USB Mouse
• SATA Data Cable and SATA Power Cable
• HDD Mounting Screws
• User Manual / Quick Installation Guide
• Warranty Card (2 Years Registration)

Important Note: Hard disk drive (HDD) is NOT included and must be purchased separately. This DVR supports SATA HDD up to 6TB capacity .

Why Buy from Thencix?

Thencix is an authorised partner for genuine CP PLUS surveillance solutions. Every CP PLUS DVR, camera, and accessory is specification-verified, professionally packed, and backed by complete after-sales support.

• 100% authentic CP PLUS products with manufacturer-verified specifications
• Professional, damage-safe packaging
• Fast delivery across India
• GST invoice with every order
• Cash on Delivery available
• Guided CP PLUS setup support via WhatsApp
• In-house warranty assistance — no need to contact CP PLUS directly
• Warranty appointments arranged for you

Support:
Email: support@thencix.com
WhatsApp: +91 98911 50949

Browse our complete catalog of CP PLUS DVRs, NVRs, and surveillance equipment to build your complete security system.

Ideal Applications

• Retail Stores and Shops: 8-channel capacity for comprehensive store surveillance with motion detection alerts
• Small Offices: Professional monitoring of office premises, entry points, and work areas
• Educational Institutions: Classroom and corridor monitoring for schools and small colleges
• Residential Properties: Home security systems with remote mobile access for peace of mind
• Restaurants and Cafes: Monitor customer areas, kitchen, and staff with 1080P clarity
• Warehouses and Storage: Extended recording with H.265+ compression for longer retention
• Parking Areas: Hybrid camera support allows mixing of analog and IP cameras for complete coverage
