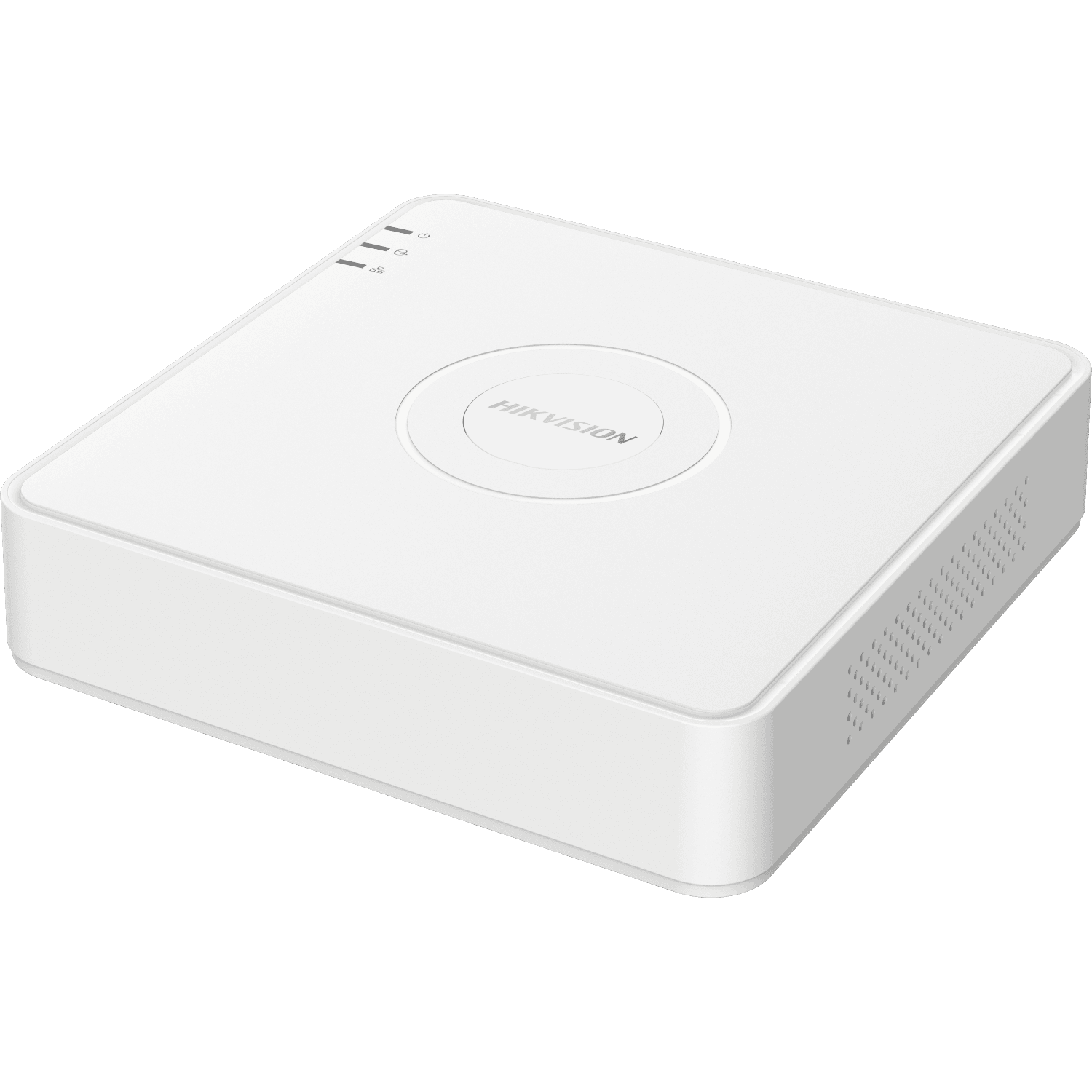

Hikvision DS-7108HGHI-M1/T 8-Channel DVR – H.265 Pro+, 1080p Lite

The Hikvision DS-7108HGHI-M1/T is a robust 8-channel hybrid digital video recorder designed for reliable, high-definition surveillance across homes, retail spaces, and offices. Combining analog and IP camera support, it’s built for users upgrading from legacy systems to modern hybrid infrastructures. Its compact build, advanced H.265 Pro+ compression, and smart human/vehicle detection make it an ideal fit for small-scale professional installations demanding long-term performance and cost efficiency.

Supporting up to eight analog inputs plus two IP channels (expandable via firmware), the DS-7108HGHI-M1/T offers flexible deployment. It is compatible with multiple camera technologies — HDTVI, AHD, HDCVI, and CVBS — giving installers maximum compatibility with existing setups. This DVR’s hybrid structure allows seamless migration from analog to IP, extending system life and reducing equipment replacement costs.

H.265 Pro+ Compression for Superior Efficiency

Hikvision’s H.265 Pro+ codec technology dramatically enhances storage efficiency without sacrificing image clarity. By optimizing bitrates dynamically based on motion and scene complexity, the DVR can store more than twice as much data compared to standard H.264 systems. This technology minimizes network bandwidth and reduces hard drive wear, providing long-term savings on storage and maintenance.

Whether running continuous recording or motion-triggered capture, this compression ensures smooth video playback, reduced buffering, and quick file transfers — all critical for 24/7 security operations.

Hybrid Connectivity and Compatibility

The DS-7108HGHI-M1/T supports eight analog channels and up to two IP cameras (expandable to ten channels). It’s compatible with high-definition analog signals up to 1080p, enabling crystal-clear imaging from existing coaxial-based systems. The unit also accepts IP camera streams up to 5 MP, delivering flexibility for hybrid system integration and phased upgrades.

Smart Human and Vehicle Detection

Equipped with Motion Detection 2.0, the DVR intelligently distinguishes between humans, vehicles, and irrelevant movement such as trees or light changes. This ensures that motion alerts are meaningful, minimizing wasted time reviewing irrelevant footage. Smart event tagging allows rapid playback search, helping operators find incidents in seconds instead of hours.

High-Definition Display and Dual Output

With simultaneous HDMI and VGA outputs, the DS-7108HGHI-M1/T supports Full HD display (up to 1920×1080 @ 60 Hz). Users can connect two monitors — one for live view and another for playback or multi-channel preview. This flexibility benefits monitoring rooms, shops, or offices where multiple displays improve situational awareness.

Optimized Storage and HDD Support

The DVR includes one SATA interface supporting up to 4 TB storage. Using a surveillance-rated hard drive ensures continuous 24/7 recording performance with low failure risk. Intelligent recording modes — such as motion, continuous, and scheduled — allow storage optimization depending on surveillance needs. Built-in overwrite protection and disk health monitoring add long-term reliability to data retention.

Remote Access and Networking

Hikvision’s DS-7108HGHI-M1/T integrates seamlessly into local or cloud-based monitoring setups. It supports remote viewing through the Hik-Connect mobile app, DDNS, or secure HTTPS connections. Network protocols include TCP/IP, DHCP, DNS, NTP, and UPnP, making configuration simple. Once connected, users can view live or recorded footage from smartphones, tablets, or PCs — a key requirement for today’s mobile-first monitoring approach.

Compact Design and Build Quality

Designed with installers in mind, this DVR features a compact mini-1U chassis measuring 200 × 200 × 48 mm and weighing less than 1 kg. The streamlined front panel includes clear status indicators, while the rear hosts BNC, HDMI, VGA, USB, and LAN ports for straightforward setup. The fan-less design keeps noise low and reduces dust buildup, extending operational life in quiet environments like retail stores or offices.

Technical Specifications

Installation and Setup

Setting up the DS-7108HGHI-M1/T is quick and straightforward. Installers can connect analog or IP cameras, configure recording modes, and enable remote access within minutes. The intuitive web interface and on-screen menu (via mouse or HDMI monitor) simplify setup for beginners while offering granular control for advanced users. Firmware updates ensure ongoing compatibility with new camera models and security enhancements.

Best Practices and Maintenance

For optimal long-term performance:

• Use surveillance-rated hard drives for continuous recording.
• Ensure stable power via UPS or surge protection.
• Maintain adequate ventilation to avoid overheating.
• Regularly back up critical footage through USB or network export.
• Update firmware periodically for improved stability and security.

Why Choose the Hikvision DS-7108HGHI-M1/T

The DS-7108HGHI-M1/T offers an excellent balance between performance, cost, and reliability. Its hybrid flexibility lets users maintain existing analog infrastructure while upgrading selectively to IP. Intelligent detection, efficient compression, and easy remote access make it a versatile choice for small business owners, installers, and property managers who value reliability and simple scalability.

With professional-grade build quality and energy-efficient operation, this DVR ensures consistent protection for your premises, day and night, with reduced maintenance overhead. Whether managing a small office, retail store, or residential property, this device delivers professional-level surveillance that’s easy to use, expand, and trust.

Frequently Asked Questions

Does this DVR support IP cameras?

Yes. It supports up to two IP cameras in addition to the eight analog channels. Firmware upgrades may allow expansion up to ten IP inputs.

Can I view footage remotely on my phone?

Yes. Using the Hik-Connect mobile app or DDNS configuration, you can securely view live and recorded video from anywhere.

What type of hard drive is recommended?

Use a surveillance-rated SATA HDD (up to 4 TB) built for 24/7 write cycles. Consumer drives are not recommended for continuous use.

Is the DVR compatible with older analog cameras?

Yes. It supports standard CVBS analog inputs alongside HDTVI, AHD, and HDCVI formats, ensuring backward compatibility with existing installations.

Can I connect two displays at once?

Yes. HDMI and VGA outputs operate simultaneously, allowing one monitor for live view and another for playback or configuration.

Does this DVR have PoE ports?

No. IP cameras connected to this DVR must be powered separately or via a PoE switch.
