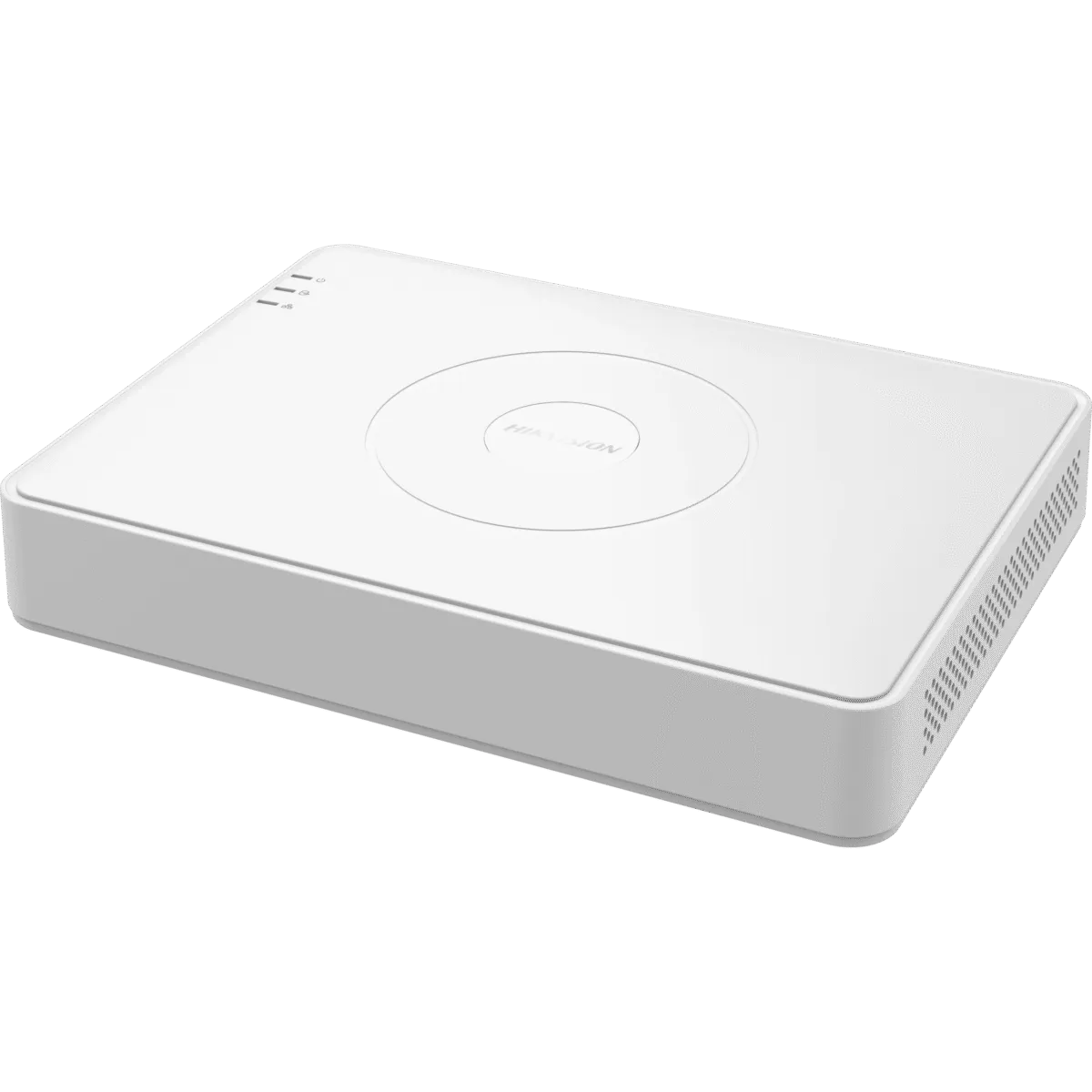

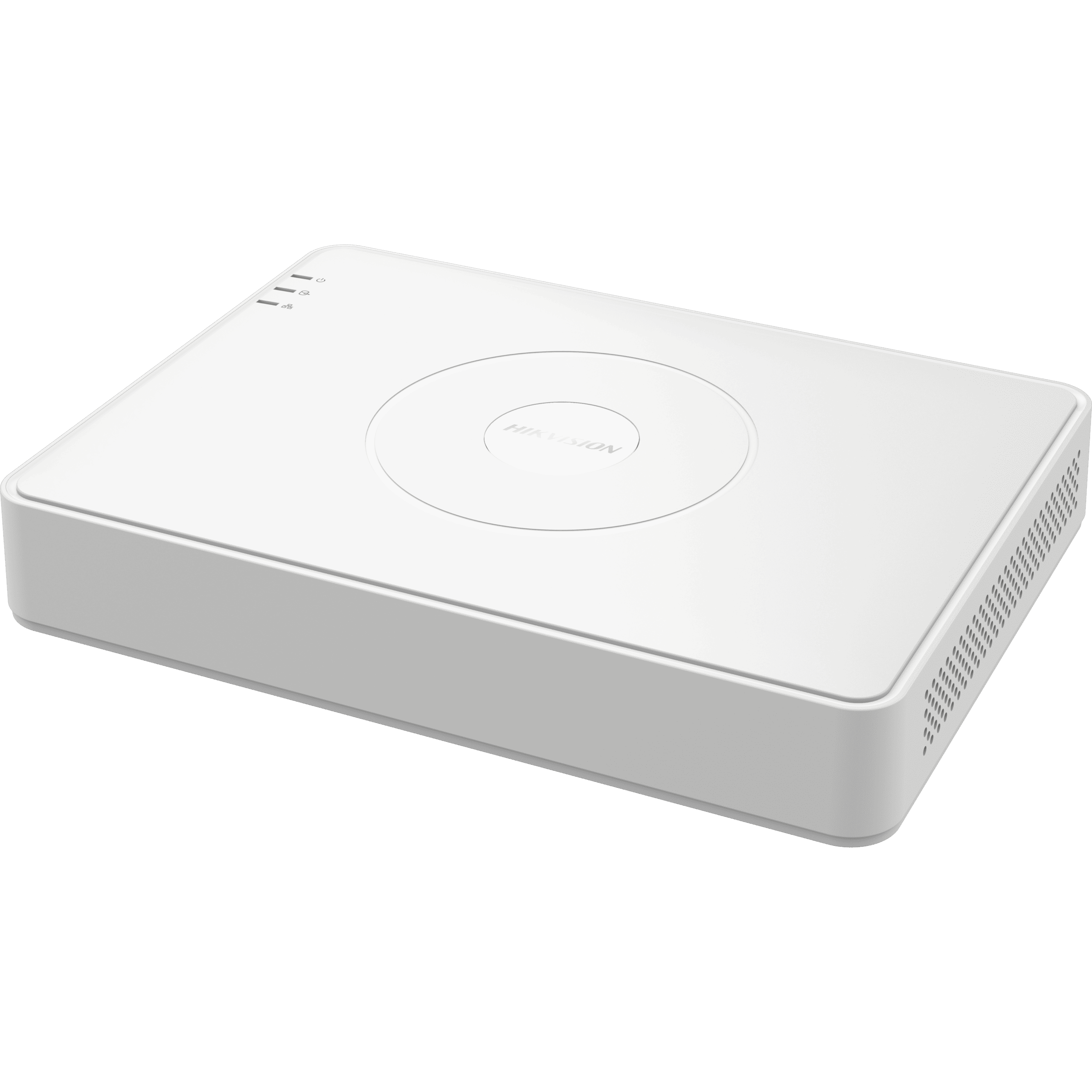

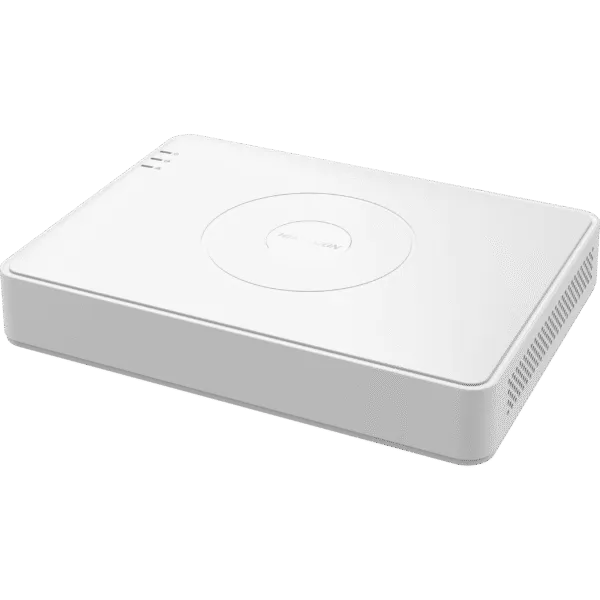

Hikvision IDS-7116HQHI-M1/T 16-Channel AcuSense 4K Turbo HD DVR

The Hikvision IDS-7116HQHI-M1/T is a 16-channel AcuSense Turbo HD DVR that brings deep-learning-powered human and vehicle detection to analog CCTV upgrades across India. With 16 BNC inputs supporting HDTVI, AHD, HDCVI, and CVBS signals — plus the ability to add up to 24 IP cameras in enhanced mode — this Mini 1U recorder suits warehouses, retail chains, schools, and factory floors in Delhi NCR that need smart analytics without replacing existing coaxial cabling. If you are running a 16-camera setup on a Turbo HD DVR system and want to reduce false alarms from animals, shadows, and monsoon rain, the AcuSense engine inside this unit filters events intelligently before they reach your phone. Thencix supplies genuine Hikvision India stock from Nehru Place with GST invoice and COD across Delhi, Noida, Gurgaon, and Faridabad.

Hikvision IDS-7116HQHI-M1/T Product Overview and Value Proposition

The IDS-7116HQHI-M1/T sits in Hikvision’s Value Series with AcuSense technology, meaning every analog channel has deep learning-based motion detection 2.0 enabled by default. It distinguishes humans and vehicles from environmental noise, sending only relevant push notifications to the Hik-Connect mobile app. For Indian buyers managing multiple shops or godowns, this cuts down the flood of false alerts that standard motion detection generates during dust storms, heavy rain, or shifting tree shadows.

Recording resolution scales from 720p25 up to 3K (2960 × 1665) at 25 fps over HDTVI, 5 MP at 20 fps over AHD and HDCVI, and up to 6 MP on IP channels. The 96 Mbps incoming bandwidth handles high-bitrate streams from mixed analog and IP sources without dropping frames. H.265+ and H.264+ smart compression reduce storage consumption by up to 50 percent compared to standard H.264, stretching your hard disk capacity when recording 16 channels around the clock.

Output is handled through simultaneous HDMI and VGA ports. HDMI delivers 4K at 30 Hz for modern 4K monitors, while VGA outputs 1080p60 for older displays or backup viewing stations. This dual-output flexibility matters in Indian control rooms where legacy VGA monitors still exist alongside new LED screens.

AcuSense Deep Learning Analytics for Indian Security Scenarios

AcuSense is not just a marketing label on the IDS-7116HQHI-M1/T. The DVR runs a deep learning algorithm on each analog channel that classifies moving objects into human, vehicle, or other. When a cat crosses the camera at a construction site in Gurgaon, or plastic sheets flap in the wind at a Faridabad warehouse, the DVR tags the event as “other” and suppresses the alert. When a person enters after hours or a two-wheeler drives into a restricted zone, the DVR flags it instantly and pushes a notification to the Hik-Connect app over Jio Fiber, Airtel Xstream, or BSNL broadband.

This level of filtering is critical for businesses that cannot afford a dedicated monitoring operator. A single owner managing three retail outlets in Nehru Place, Karol Bagh, and Lajpat Nagar can receive only actionable alerts on one phone, reviewing footage remotely without wading through hours of harmless motion. The search-by-human or search-by-vehicle function in playback also speeds up incident investigation when Aadhaar-enabled entry logs or PAN card verification footage needs retrieval.

Hybrid Analog and IP Connectivity for Gradual Upgrades

The IDS-7116HQHI-M1/T protects existing infrastructure investments. All 16 BNC ports accept coaxial cable runs from existing 720p, 1080p, or 5 MP analog cameras. If you want to add IP cameras and analog cameras together, standard mode supports 2 IP channels. Switch on Enhanced IP mode and the recorder accepts up to 8 IP channels, for a total of 24 cameras. Each IP stream supports up to 6 MP resolution and H.265+/H.264+ codecs.

This hybrid path lets a Delhi factory replace failed analog cameras with 4 MP IP turrets one by one, without rewiring the entire site or buying a new recorder. The single RJ45 10/100M network port connects to your LAN for remote access, and two USB 2.0 ports handle mouse control, firmware upgrades, or quick video backups to external drives.

Key Features

• 16-channel analog input with AcuSense analytics supporting HDTVI, AHD, HDCVI, and CVBS signals up to 3K resolution
• Enhanced IP mode up to 24 total channels — 16 analog + 8 IP, each IP stream up to 6 MP with H.265+ compression
• Deep learning human and vehicle detection 2.0 enabled by default on all analog channels, filtering false alarms from animals, weather, and shadows
• 4K HDMI and 1080p VGA simultaneous output for modern monitors and legacy displays in Indian control rooms
• H.265+ smart compression and 96 Mbps bandwidth reducing storage costs and handling mixed high-resolution streams

Technical Specifications

Package Contents

• Hikvision IDS-7116HQHI-M1/T DVR unit
• 12V DC 2A power adapter
• USB mouse
• SATA data cable for HDD installation
• Rackmount ears and screws (Mini 1U kit)
• Quick start guide and warranty card

NOT INCLUDED: Hard disk drive (HDD sold separately — recommend WD Purple or Seagate SkyHawk surveillance drives up to 10TB), BNC cables, HDMI cable, VGA cable, analog cameras, IP cameras, PoE switch. Cross-sell available: WD Purple 4TB surveillance HDD optimized for 24×7 DVR recording.

Ideal Use Cases for Indian Buyers

1. Retail Chain Loss Prevention Across Delhi NCR
Install at the back office of clothing stores in Lajpat Nagar or electronics shops in Nehru Place. AcuSense human detection triggers only when staff or customers enter after closing, ignoring rats, pigeons, and curtain movement. Link with a network video recorder at the head office for centralized backup of critical branches.

2. Factory and Warehouse Perimeter Security in Faridabad and Gurgaon
The -10°C to +55°C operating range handles unventilated godowns in Delhi summer without air conditioning. 3K recording over existing coaxial cable captures clear facial detail at entry gates. Enhanced IP mode lets you add 4 MP IP bullet cameras over the LAN for loading dock coverage while keeping older analog domes in the storage area.

3. School and Coaching Center Campus Monitoring
Deploy 16 cameras across classrooms, corridors, and playgrounds in Noida or Ghaziabad institutions. 16-ch synchronous playback lets administrators review an entire incident timeline across all cameras simultaneously. Audio-over-coaxial support captures classroom interactions without running separate microphone cables.

4. Residential Society and Apartment Complex Security
Connect existing 1080p dome cameras in lifts, parking areas, and lobbies. The Mini 1U chassis fits inside small server cabinets common in Delhi apartment utility rooms. Hik-Connect remote viewing over Jio Fiber or Airtel Xstream lets RWA members monitor visitor entry from their phones, while the DVR handles local recording with GST invoice for society accounting.

Why Buy from Thencix

• Genuine Hikvision India stock with serial number verifiable on Hikvision India portal
• GST invoice for every order — claim input tax credit on your security infrastructure spend
• Cash on Delivery available across Delhi, Noida, Gurgaon, Faridabad
• Express same-day dispatch for Delhi NCR; pan-India shipping via Blue Dart and Delhivery
• Pre-sales site survey guidance over WhatsApp — share your camera count and cable length for compatible accessory recommendations
• Post-sales Hik-Connect setup and port-forwarding support for BSNL, Jio Fiber, and Airtel Xstream routers

Need a hard disk bundle quote or want to confirm compatibility with your existing CP Plus or Hikvision analog cameras? WhatsApp us on +91 9891150949 for instant technical support. Visit our Nehru Place store for live demo and GST billing.
