Hikvision iDS-7208HUHI-M1/T 8Ch Two-Way Audio AcuSense DVR

The Hikvision iDS-7208HUHI-M1/T is an 8-channel AcuSense Turbo HD DVR with built-in two-way audio over coaxial cable, designed for Indian security teams who need deep learning analytics without replacing existing analog infrastructure. If you are researching hybrid DVR recorders for your Delhi NCR premises, this 1U recorder delivers HDTVI two-way talk on all 8 analog channels, 4K HDMI output, and human-vehicle classification through Motion Detection 2.0. At Thencix in Nehru Place, we physically verify every unit before dispatch and supply full GST invoicing so your finance team can claim input tax credit. The H.265 Pro+ compression slashes storage costs by approximately 50 percent compared with H.264, critical for MSMEs in Gurgaon and Noida managing long retention periods. Whether your Faridabad warehouse needs perimeter protection with line crossing alerts, your Delhi retail showroom wants facial detection at the entrance, or your Noida factory guard post requires two-way communication with loading dock staff over existing coax, this hybrid recorder handles mixed camera fleets without forcing a complete infrastructure overhaul. Every unit carries a 1-year Hikvision carry-in warranty and ships with the GST invoice required for PAN-based business purchases. Contact Thencix on WhatsApp at +91 9891150949 for same-day quotes and bulk order pricing.

Two-Way Audio Over Coax

The standout feature of this recorder is HDTVI two-way audio technology, which transmits return audio from the DVR to the camera over the same 75-ohm coaxial cable that carries video. The unit provides one RCA audio input at 2.0 Vp-p and one RCA audio output at 1 K? linear impedance, while the HDTVI protocol multiplexes the audio channel within the existing video spectrum. For Indian integrators, this eliminates the cost and labor of pulling separate speaker wires to each camera location — a significant advantage in Delhi’s older commercial buildings where conduit space is limited and masonry work is expensive.

All 8 analog channels support this two-way talk functionality when paired with compatible HDTVI cameras. A Noida factory supervisor can speak directly to a loader at bay 3 through the DVR’s RCA audio input, with the voice emerging from the camera’s built-in speaker at the loading dock. A Delhi residential society gatekeeper can verify visitor identity verbally before remotely releasing the lock, combining visual confirmation with audio interaction. The G.711u audio compression at 64 Kbps delivers intelligible speech without consuming meaningful bandwidth, and the sub-stream recording at WD1 resolution ensures remote listening over mobile connections remains smooth even when the main stream records at full 4MP resolution.

The coaxial audio input captures synchronized sound from all 8 analog channels simultaneously, recording ambient audio alongside video without additional microphone wiring. This is particularly useful for dispute resolution in retail environments and for documenting verbal instructions at factory checkpoints. When your team needs IP security cameras with built-in microphones for positions beyond coaxial reach, the hybrid input architecture accepts up to 16 IP camera channels in enhanced mode, each up to 8 MP resolution, blending the best of both infrastructure types.

Deep Learning Perimeter Protection and Facial Detection

Motion Detection 2.0 on the iDS-7208HUHI-M1/T uses deep learning algorithms trained on human and vehicle shapes to distinguish relevant targets from environmental noise. Unlike traditional pixel-change detection that triggers during rain, dust storms, and insect swarms common in North India, this engine recognizes the silhouette of a person climbing a fence or a vehicle entering a restricted zone. The classification is enabled by default across all 8 analog channels, so integrators in Nehru Place do not spend hours drawing exclusion zones or adjusting sensitivity thresholds for each camera.

Perimeter protection extends this intelligence to line crossing and intrusion detection on up to 4 channels. A Gurgaon warehouse manager draws a virtual line across the rear perimeter, and the recorder triggers an alarm only when a human or vehicle crosses that boundary — not when a dog walks parallel to it or when wind moves a tarp. The facial detection and capture feature stores face images in up to 16 libraries containing 5,000 pictures total, enabling face picture search across recorded footage. For a Connaught Place jewelry showroom, this means identifying repeat visitors and flagging known shoplifters without maintaining separate facial recognition servers.

Quick search by object or event type transforms incident investigation from hours of manual scrubbing into seconds of filtered results. A Faridabad logistics supervisor searching for all human-triggered events between 2 AM and 5 AM isolates the relevant clips instantly, while vehicle classification filters out delivery trucks that entered during authorized hours. The 8-channel synchronous playback displays all camera feeds simultaneously during review, ensuring no angle is missed when reconstructing an incident timeline for police reports or insurance claims.

Hybrid Input and 4K HDMI Output Architecture

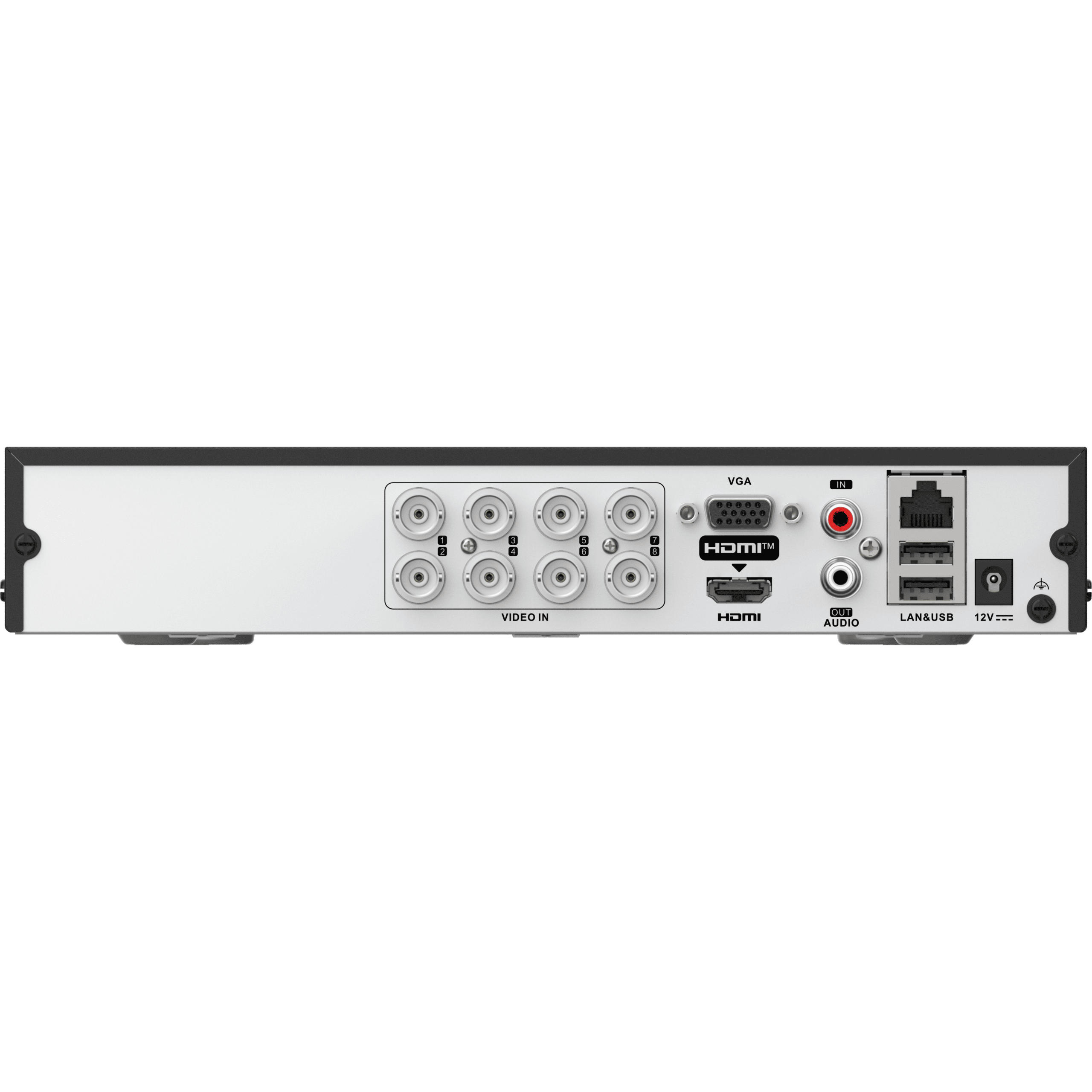

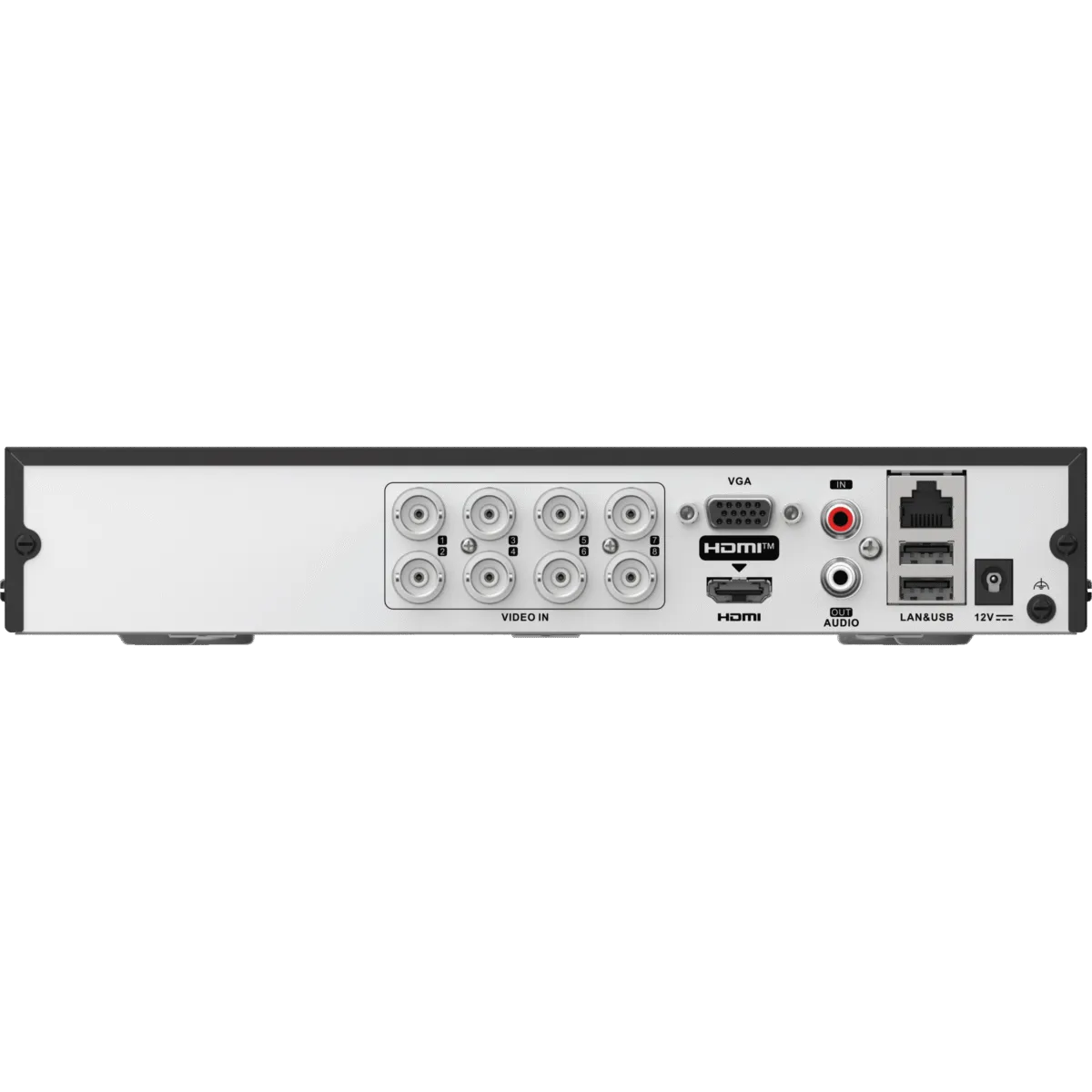

The iDS-7208HUHI-M1/T accepts five signal formats adaptively through its 8 BNC inputs: HDTVI, AHD, HDCVI, CVBS, and IP. This adaptive input protects existing coaxial infrastructure investments while enabling gradual migration to IP. A typical Sahibabad manufacturing unit running 720p CVBS cameras on decade-old coaxial cable retains 6 existing cameras, upgrades 2 critical positions to 4MP HDTVI over the same RG59, and adds 4 IP cameras for new coverage areas — all recording into a single unit without parallel systems or incompatible software.

Encoding capability reaches 8 MP at 8 fps, 3K and 5 MP at 12 fps, and 4 MP at 15 fps on the main stream, while the sub-stream outputs WD1 resolution at 25 fps for smooth remote viewing over bandwidth-constrained connections such as BSNL FTTH or lower-tier Airtel Xstream plans. The video bitrate ranges from 32 Kbps to 10 Mbps per channel, allowing integrators to balance quality against storage budgets. In standard mode, 4 IP camera inputs are available at up to 8 MP each. Activating enhanced IP mode expands this to 8 IP channels (up to 16 total with stream optimization), each limited to 4 Mbps, sufficient for 4MP H.265 cameras at 15 fps.

The HDMI output drives 4K resolution at 30 Hz to a primary monitor, while the VGA port outputs 1080p at 60 Hz simultaneously for a secondary operator display. This dual-output eliminates HDMI splitters in small security rooms common across Delhi NCR commercial complexes. The 4K HDMI ensures that 8 MP camera feeds retain detail during full-screen review, critical for facial identification and license plate reading. The network interface auto-adapts between 10, 100, and 1000 Mbps, connecting directly to standard office switches, while Wi-Fi connectivity via USB dongle offers wireless backup or remote location deployment where Ethernet cabling is impractical.

Key Features

• HDTVI Two-Way Audio on All 8 Analog Channels: Speak to personnel at any camera location over existing coaxial cable without separate speaker wiring, using the RCA audio input and G.711u compression for clear voice transmission.
• AcuSense Motion Detection 2.0 with Human/Vehicle Classification: Deep learning analytics enabled by default across all analog channels filter false alarms from weather, insects, and lighting changes, sending alerts only for relevant targets.
• 5-in-1 Hybrid Input with Up to 16 IP Camera Channels: Adaptive BNC inputs accept HDTVI, AHD, HDCVI, CVBS, and IP cameras simultaneously, with enhanced mode expanding IP support to 16 channels at up to 8 MP each.
• 4K HDMI and Simultaneous VGA Output with 128 Mbps Bandwidth: The HDMI port drives a 4K monitor at 30 Hz for high-detail review, while the VGA port feeds a secondary 1080p display, supported by 128 Mbps total network throughput.
• 1-Year Hikvision Carry-In Warranty with GST Invoice: Every unit ships with manufacturer warranty coverage and a proper GST invoice for PAN-based input tax credit claims, verified from official Hikvision India documentation.

Technical Specifications

Package Contents

• Hikvision iDS-7208HUHI-M1/T DVR unit
• 12 VDC power adapter (2A, India compatible)
• USB mouse
• SATA data cable for HDD installation
• Rack mount ears for 19-inch cabinet installation
• Quick start guide and safety documentation
• NOT INCLUDED: Hard disk drive, cameras, Ethernet cables, HDMI cable, VGA cable, monitor, Wi-Fi dongle, PoE switch

Cross-sell note: Need a surveillance-rated HDD or compatible cameras? Thencix stocks IP security cameras and WD Purple drives up to 10 TB for this DVR.

Ideal Use Cases for Indian Businesses

Retail Chain and Showroom Security with Facial Detection: A Connaught Place electronics retailer with 6 existing 1080p analog cameras upgrades two critical positions — the entrance and cash counter — to 4MP HDTVI cameras over existing coax, while adding two 4MP IP cameras for the stockroom via the network ports. The facial detection feature captures face images at the entrance, building a library of repeat customers and flagged individuals. The two-way audio allows the supervisor to warn staff at the remote stockroom camera without picking up a phone. The 4K HDMI output drives a 43-inch monitor at the front desk, providing visible deterrence while the VGA output feeds a private supervisor screen in the back office.

Factory Guard Post and Loading Dock Communication: A Faridabad manufacturing facility mounts HDTVI cameras with built-in speakers at 8 loading bays. The security guard at the central monitoring station uses the DVR’s RCA audio input to speak directly to truck drivers at bay 3, verifying delivery paperwork before opening the gate. The coaxial two-way talk eliminates the need for intercom systems or mobile phones at each dock, reducing capital expenditure. The -10°C to +55°C operating range handles unventilated security rooms during Delhi summers, and the 15-watt power draw allows a modest 600 VA UPS to maintain recording through 30-minute load shedding cycles.

Warehouse Perimeter Protection and Night Monitoring: A Gurgaon-based logistics hub deploys 4MP HDTVI cameras along the rear fence with perimeter protection line crossing detection on 4 channels. The deep learning algorithm ignores stray dogs and wind-blown debris during monsoon nights, alerting the security agency only when a human climbs the fence or a vehicle stops at the service gate. The quick search function isolates all human-triggered events between 11 PM and 5 AM in under 30 seconds, eliminating hours of manual footage review. The 10 TB drive stores 40 days of continuous 8-channel footage, exceeding the 30-day retention most Indian commercial insurers require.

Educational Institution and Campus Safety: Schools and coaching centers across Noida and Dwarka monitor entry gates, corridors, and parking areas with a mix of budget analog cameras and new IP bullets. The Motion Detection 2.0 human classification reduces false alarms from stray animals and moving tree branches, ensuring security staff respond only to genuine threats. The 64 remote connections allow the principal, administrative staff, and security agency to access live feeds from separate devices without additional VMS licensing. The Hik-Connect mobile app delivers push notifications to the facility manager’s Jio Fiber-connected smartphone when motion is detected after hours, with the ability to tap the two-way audio button and speak to the gate area directly.

Why Buy from Thencix

• 1-Year Hikvision Carry-In Warranty: Thencix supplies the original Hikvision unit with manufacturer warranty coverage verified from official India documentation. For warranty claims, retain your GST invoice and contact our Nehru Place support team for guidance through the Hikvision service center process.
• GST Invoice for Input Tax Credit: Every purchase includes a proper GST bill for your business accounting and tax compliance, enabling PAN-based input tax credit claims on security infrastructure investments.
• Same-Day Dispatch from Nehru Place: Orders confirmed before 3 PM ship same day to Delhi, Noida, Gurgaon, and Faridabad via our local logistics partners.
• Pre-Sales Configuration Support: Need HDD installation, IP camera discovery, Hik-Connect mobile setup, or two-way audio testing before shipping? WhatsApp +91 9891150949 and our team will handle it.

Hikvision iDS-7208HUHI-M1/T Price India — Frequently Asked Questions
