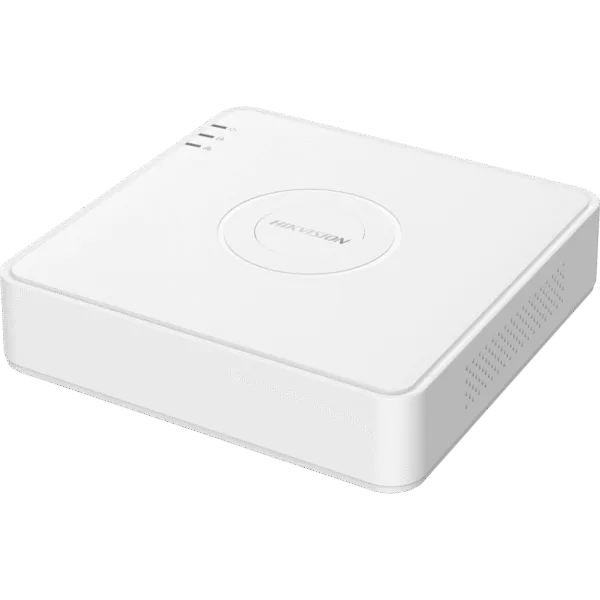

Hikvision iDS-7104HQHI-M1/S 4-Channel AcuSense DVR – H.265+, 1080p Mini 1U

The Hikvision iDS-7104HQHI-M1/S is a professional-grade 4-channel hybrid digital video recorder from Hikvision’s Value Series with AcuSense technology. This compact mini-1U unit brings powerful features including H.265 Pro+ compression, advanced analytics for human and vehicle detection, and flexible hybrid connectivity—designed for small offices, retail outlets, and residential security systems requiring intelligent performance and strong value.

Rowing in a full suite of analog and IP compatibility, the iDS-7104HQHI-M1/S supports HDTVI, AHD, HDCVI, CVBS analog formats and up to 6 IP channels (depending on configuration). This means you can leverage existing analog cameras while gradually introducing IP cameras without needing a full system overhaul.

Advanced H.265 Pro+ Compression for Smart Storage Use

Hikvision’s H.265 Pro+ codec reduces storage and bandwidth demands by up to ~50% compared to H.264. For a busy 4-channel recording system, this means fewer hard drives needed, less network load when streaming remotely, and more days of recording retained—critical when storing essential footage or meeting compliance requirements.

AcuSense Analytics: Human & Vehicle Filtering

Equipped with Motion Detection 2.0 and AcuSense deep learning-based classification, the DVR intelligently distinguishes between human and vehicle motion and environmental noise (such as leaves, shadows, or pets). This significantly lowers false alarms and improves the relevance of security alerts. Review events faster and focus on what matters.

Hybrid Connectivity for Flexible Upgrades

With the ability to handle both analog and IP camera feeds, this DVR offers flexible system design. Install analog cameras in the main areas then add IP cameras in critical zones requiring higher resolution or intelligent features—without replacing the entire recorder. The unit supports up to 1080p input encoding for analog channels (and higher for IP), maximizing image clarity.

Full HD Output & Smart Search Functionality

With simultaneous HDMI and VGA outputs, you can connect dual displays—a live monitor and a playback screen. The HDMI supports full HD resolution for detailed viewing. Smart search functions allow you to filter recorded events by target type (human/vehicle) and streamline retrieval of required footage.

Compact Design & Energy Efficiency

The mini-1U design (200 × 200 × 45 mm) makes it ideal for small racks or cabinets, and the unit weighs less than 1 kg without HDD. With power consumption at ? 8 W (without HDD), it provides efficient continuous operation in 24/7 surveillance environments, reducing running costs and system stress.

Technical Specifications

Installation & Maintenance Best Practices

• Use a surveillance-rated SATA hard drive to ensure reliable 24/7 recording under high-write cycles.
• Ensure the DVR is mounted in a ventilated cabinet away from excessive heat or dust.
• Enable automatic firmware updates and secure remote access via Hik-Connect with strong passwords.
• Configure motion detection zones and filtering properly to reduce false alerts and save storage.
• Schedule regular backups of critical footage to USB or network storage to meet retention and compliance goals.

Why Choose the Hikvision iDS-7104HQHI-M1/S?

For end-users and installers looking for a compact yet powerful surveillance DVR, the iDS-7104HQHI-M1/S delivers advanced analytics typically found in higher-end systems—at a value price. With AcuSense analytics, H.265 Pro+ compression, hybrid connectivity and full HD output, it is ideal for small businesses, retail shops, branch offices and smart home surveillance where reliability and intelligence matter.

The combination of deep learning–enabled motion detection, extensible hybrid camera support and efficient design makes this DVR a strategic choice for projects requiring minimal fuss, future-proof capability and professional results without large investment.

Frequently Asked Questions

Does this DVR support Turbo HD and AHD cameras?

Yes—it supports analog formats HDTVI (Turbo HD), AHD, HDCVI, CVBS and IP inputs, allowing you to use existing cameras or upgrade gradually.

How many days of footage can I store on a 2 TB drive?

Retention depends on recording settings, resolution and motion activity. With H.265 Pro+ enabled and moderate resolution, you can significantly extend storage life compared to binary H.264 setups.

Can I view this DVR remotely via smartphone?

Yes. Hik-Connect (mobile app) and DDNS or browser access support remote live view and playback from mobile devices or PCs.

Is this unit suitable for continuous 24/7 recording?

Yes. With its compact design, low power consumption and robust architecture, this DVR suits continuous operations in retail, office or small surveillance installations.

Does it support face detection or perimeter protection?

The AcuSense version supports human/vehicle classification on designated channels and perimeter-protection functions such as line crossing or intrusion in compatible configurations. For full face recognition or advanced analytics, verify custom-license availability.
