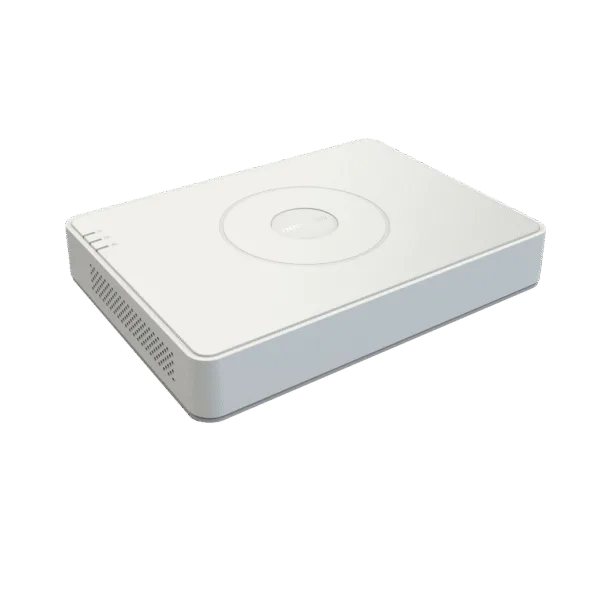

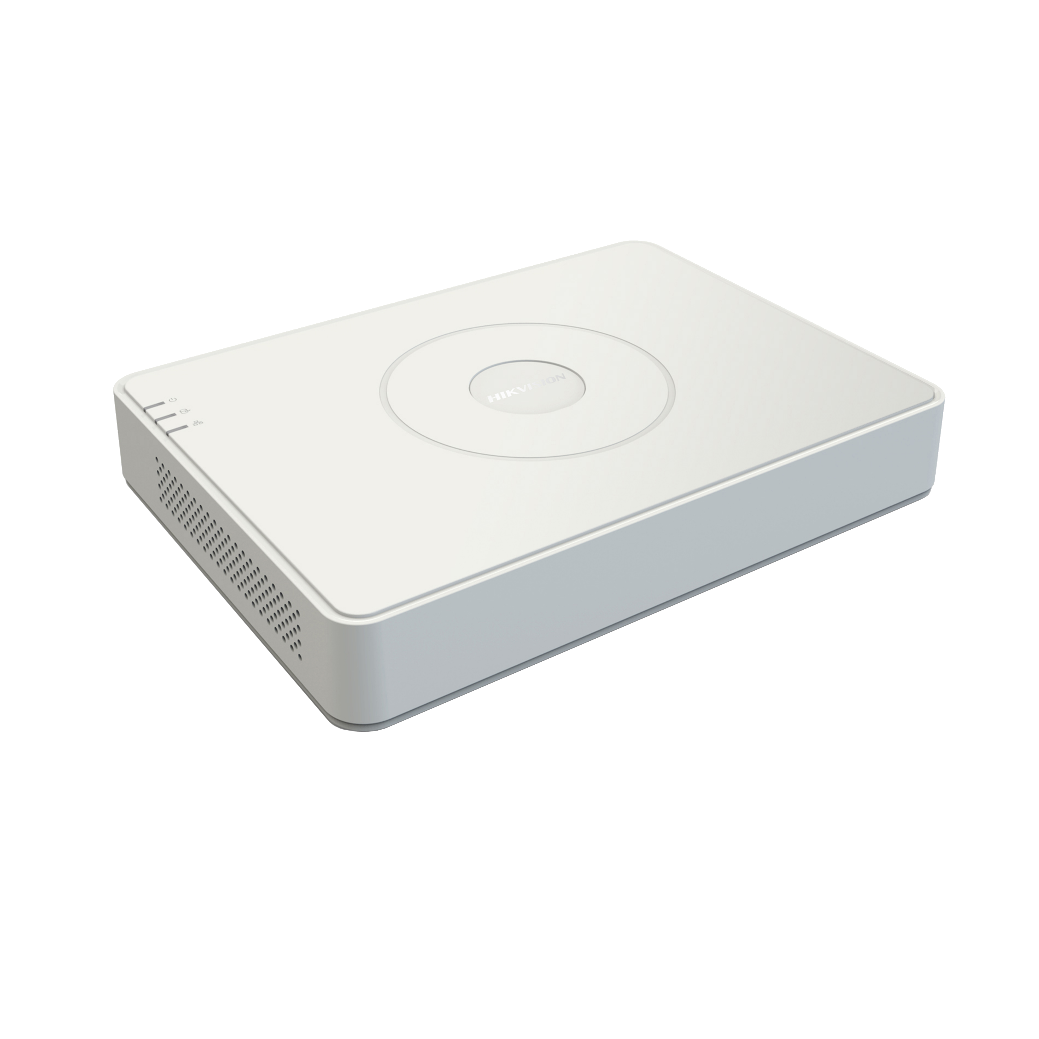

Hikvision iDS-7116HQHI-M1/S 16-Channel AcuSense DVR – H.265 Pro+, 1080p 1U

The Hikvision iDS-7116HQHI-M1/S is a 16-channel hybrid DVR from Hikvision’s Value Series featuring AcuSense deep-learning analytics and H.265 Pro+ compression. Compact, powerful, and energy-efficient, it’s designed for medium-sized installations that demand intelligent detection, high reliability, and cost-effective operation.

This DVR supports multiple analog signal types — HDTVI, AHD, HDCVI, CVBS — and up to 2 additional IP channels (expandable via firmware). It’s ideal for projects upgrading from analog to hybrid setups, enabling both legacy coaxial and modern IP cameras on one platform.

Hybrid 5-in-1 Video Input Support

The iDS-7116HQHI-M1/S accepts all major analog standards, including Turbo HD (TVI), AHD, CVI, CVBS, and IP. This flexibility ensures compatibility across existing infrastructure while offering a future-ready upgrade path. Each analog channel supports resolutions up to 1080p, ensuring crisp image quality across every camera feed.

Advanced H.265 Pro+ Compression Technology

Hikvision’s proprietary H.265 Pro+ codec optimizes video data by analyzing motion and allocating bitrate only where necessary. Compared to H.264, it saves up to 50% storage and bandwidth. For 24/7 recording, this means longer retention with fewer hard drives — ideal for users seeking storage efficiency without sacrificing detail.

AcuSense AI-Driven Human & Vehicle Detection

The AcuSense engine provides human and vehicle classification on analog channels, filtering false alarms caused by irrelevant motion like rain, shadows, or animals. Events are labeled for rapid playback review, helping operators respond faster and reduce wasted monitoring time. AcuSense intelligence brings advanced analytics typically found in enterprise systems to the value segment.

Full HD Display and Dual Output

Dual HDMI and VGA outputs allow simultaneous display, supporting up to 1080p on HDMI and 1280×1024 on VGA. One monitor can be dedicated to live view, while the other handles playback or configuration. This enhances workflow in small command centers or office security setups.

Optimized for Continuous Recording

Equipped with a single SATA interface supporting up to 10 TB HDD, the iDS-7116HQHI-M1/S ensures extended recording storage for multi-camera operations. Surveillance-rated hard drives (e.g., WD Purple, Seagate SkyHawk) are recommended for continuous 24/7 write cycles. Features like automatic overwrite, S.M.A.R.T. HDD health check, and USB backup keep your data secure and accessible.

Network Access and Remote Management

The integrated RJ-45 10/100 Mbps port connects directly to LAN or WAN networks. With Hik-Connect cloud integration, you can view live streams, manage playback, and receive alerts remotely via smartphone, tablet, or PC. The DVR supports standard protocols (TCP/IP, DHCP, DNS, HTTPS, NTP, UPnP, and ONVIF), ensuring smooth integration into diverse environments.

Compact Design and Low Power Efficiency

Measuring just 285 × 210 × 48 mm and weighing under 1 kg (without HDD), the DVR is remarkably compact. It’s engineered for low-power operation — only ? 12 W without HDD — making it ideal for continuous use in retail, offices, or residences where energy efficiency matters. The mini-1U metal chassis dissipates heat effectively for silent, reliable performance.

Technical Specifications

Installation & Best Practices

• Use surveillance-rated HDDs to ensure long-term stability and continuous operation.
• Place the DVR in a ventilated cabinet and away from heat or moisture.
• Connect through UPS or surge protection for stable power and to prevent data loss.
• Change default passwords, enable HTTPS, and regularly update firmware for security.
• Set up AcuSense motion zones and adjust sensitivity to balance detection accuracy.

Why Choose the Hikvision iDS-7116HQHI-M1/S?

The iDS-7116HQHI-M1/S merges AI analytics, hybrid flexibility, and efficiency into a single, value-driven solution. Its AcuSense detection, H.265 Pro+ storage efficiency, and low power profile make it perfect for businesses and institutions that need reliable, intelligent monitoring without complex maintenance or high cost.

From branch offices and schools to retail or residential environments, this DVR offers peace of mind, superior performance, and long-term scalability — all backed by Hikvision’s trusted engineering.

Frequently Asked Questions

Does this DVR support Turbo HD and AHD cameras?

Yes. It supports HDTVI (Turbo HD), AHD, HDCVI, CVBS, and IP formats simultaneously.

Is the AcuSense AI detection built-in?

Yes. Human and vehicle classification is integrated for all analog channels with Motion Detection 2.0 enabled.

What’s the maximum storage capacity?

One SATA port supports up to 10 TB HDD — enough for weeks of continuous 1080p recording.

Can I access it remotely via smartphone?

Yes. With Hik-Connect or a secure web portal, you can monitor, play back, and manage settings remotely.

Is it suitable for 24/7 operation?

Absolutely. It’s engineered for continuous duty with low heat output, efficient compression, and reliable data handling.
