CP PLUS 6MP Network IR Fisheye Camera 360° Panoramic View

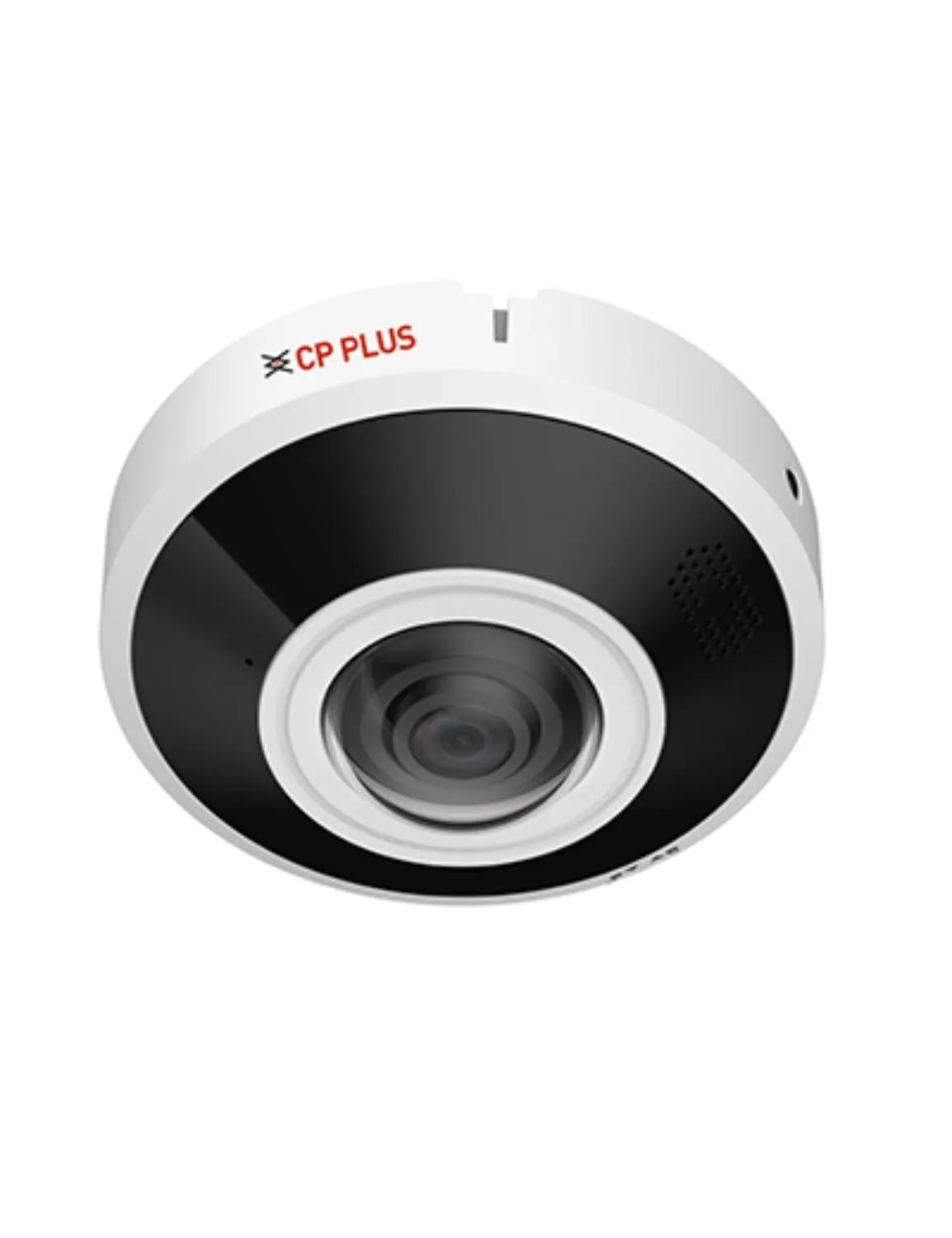

The CP PLUS CP-UNC-EE61L2C-VMD-Q is a 6MP network IR fisheye camera designed for surveillance locations where a wide panoramic view can reduce the number of separate camera positions required. Its 1.68mm fixed-focal lens, fisheye imaging, and digital dewarping capabilities make it suitable for monitoring open indoor areas, vehicle interiors, reception zones, retail floors, and other spaces where a conventional narrow-angle camera may leave blind spots. The camera uses a 1/2.5-inch 6MP progressive-scan CMOS sensor and supports multiple video streams, H.265 and H.264 compression, and network-based integration. For security installers and business buyers in Delhi NCR, the camera also offers practical installation features such as Power over Ethernet, a built-in microphone, local microSD storage support, and IP67/IK10 protection as specified in the available product documentation. If you are comparing CP PLUS network cameras for a new surveillance project, this fisheye model offers a different coverage approach from standard bullet and dome cameras. Thencix supplies GST invoices for business procurement. Contact +91 9891150949 for a quotation and compatibility assistance.

6MP Panoramic Imaging for Wide-Area Surveillance

The camera’s 6MP image sensor and fisheye lens are intended for scenes where broad coverage is more important than a tightly framed view of a distant subject. The available manufacturer datasheet identifies a 1/2.5-inch progressive-scan CMOS sensor and a maximum square image resolution of 2560 × 2560 pixels. This high-resolution image can provide useful visual information across a broad scene, provided that camera placement, lighting, installation height, and the selected viewing mode are appropriate for the location.

Fisheye cameras differ from conventional fixed-lens bullet cameras. Instead of concentrating on a single direction, a fisheye lens captures an extremely wide scene with characteristic geometric distortion. Compatible viewing software or a recorder can then present the image in panoramic or dewarped views. This helps operators inspect different portions of a room without needing a separate physical camera for every viewing direction.

For example, a retail shop in Delhi may need to monitor the sales floor, customer movement, and the area around a billing counter. A fisheye camera mounted at a suitable central position can capture a broad overview, while a dedicated camera can still be used where a narrow field of view or greater detail at a distance is necessary. The same principle applies to reception areas, waiting rooms, and open-plan offices in Noida and Gurgaon.

Resolution alone does not determine how clearly a person or object can be identified. The final image depends on the subject’s distance, lighting, pixel density, mounting position, and how the panoramic image is displayed or exported. A site survey is therefore useful before choosing a fisheye camera as the primary surveillance device for a large area.

1.68mm Fisheye Lens and Dewarped Viewing

The fixed 1.68mm lens is designed to capture a very wide scene. The available technical documentation describes an approximately 185-degree viewing angle, although the effective coverage in a deployed system depends on the camera’s mounting orientation and the viewing mode selected in compatible software.

Fisheye images can appear curved or stretched near the edges. Digital dewarping converts the captured image into a more familiar panoramic or multi-view presentation. Depending on the compatible software and supported display modes, an operator may be able to view a broad overview and select a section of the scene for closer inspection.

This capability is useful in environments such as shop floors, office lobbies, corridors opening into larger rooms, and vehicle interiors. In a small commercial reception area, for instance, the camera may provide an overview of people entering and moving through the space. The installer should test the actual mounting height and image orientation to ensure the resulting views remain useful for the intended monitoring task.

Dewarping does not create additional optical detail that the sensor did not capture. It rearranges the image to make the wide-angle scene easier to view. Buyers who require detailed identification of faces, documents, or objects at a long distance should assess pixel density at the intended subject position and consider a complementary camera with a narrower lens where necessary.

Infrared Night Vision and Low-Light Imaging

The CP-UNC-EE61L2C-VMD-Q is listed as a network IR fisheye camera with infrared illumination for low-light and dark environments. The available product specifications identify an infrared range of up to 20 metres. Actual useful range varies with scene reflectivity, subject distance, mounting height, environmental conditions, and the amount of detail required from recorded footage.

Infrared illumination enables the camera to continue capturing monochrome images when visible light is insufficient. The camera’s day/night function uses an IR-cut filter arrangement to support colour imaging in suitable lighting and infrared-assisted black-and-white imaging when illumination drops. This is useful for shops that close after business hours, office corridors that remain unoccupied overnight, and indoor access areas where lighting is reduced after closing.

The listed minimum illumination values in the available datasheets vary slightly between document revisions. The model is documented with low-light colour and black-and-white operation and zero-lux imaging when IR illumination is active. For formal technical submissions, use the latest datasheet supplied for the exact unit rather than copying an illumination figure from an older brochure.

For a warehouse or commercial property in Delhi NCR, infrared performance should be evaluated at the actual installation position. Reflective ceilings, glass surfaces, nearby walls, and dust can affect the resulting image. A practical commissioning test after dark is more useful than assuming the advertised IR distance guarantees identification at that range.

120dB WDR and Image Processing

Wide Dynamic Range helps a camera manage scenes containing both bright and dark areas. The available specifications list 120dB WDR alongside image-processing functions such as backlight compensation, highlight compensation, automatic gain control, automatic white balance, and noise reduction.

These functions matter when the camera faces an entrance with bright daylight outside and a comparatively dim interior, or when a room contains a mixture of window light and artificial lighting. Without suitable dynamic-range handling, bright regions may lose detail while darker portions become difficult to interpret. WDR is intended to help preserve usable information across these differences in brightness.

Noise reduction helps control image noise in challenging lighting conditions. The manufacturer documentation identifies 3D noise reduction, with some available datasheet versions also listing 2D noise reduction. The precise feature set should be checked against the current firmware and datasheet revision before it is used in a tender specification.

Image processing is not a substitute for adequate lighting. If a site requires reliable identification of people or small objects, the installer should check the camera’s output at the actual operating light level and adjust the lighting or camera placement where needed.

H.265 Compression and Triple-Stream Networking

The camera supports H.265 and H.264 video compression, along with additional formats listed in the product documentation. H.265 can reduce bitrate and storage requirements compared with H.264 at comparable visual quality in suitable conditions. The actual saving depends on scene movement, image complexity, frame rate, resolution, encoder settings, and the acceptable level of image degradation.

Triple-stream capability allows multiple video streams to be configured for different uses where supported by the camera’s firmware and the receiving system. A high-resolution stream may be used for recording, while a lower-resolution stream can be configured for live viewing on a mobile device or a remote connection with limited bandwidth.

This arrangement can be useful for Indian businesses that need local recording while staff access live video remotely over broadband or a mobile connection. The stream settings should be selected with the network’s available upload capacity and the recorder’s supported camera resolution in mind. Using a lower-resolution substream for remote viewing does not mean the main recording must use the same lower resolution.

For installations with several network cameras, the installer should calculate total incoming bandwidth and storage requirements before choosing a recorder. A compatible CP PLUS network video recorder can be considered after checking supported resolution, incoming bandwidth, ONVIF compatibility, and required fisheye display modes. Confirm these details with the recorder’s documentation before finalising the system.

Built-In Microphone and Local Storage

The available CP PLUS product documentation lists a built-in microphone, allowing audio capture without installing a separate microphone at the camera location. This can be useful where ambient sound provides additional context to recorded video, subject to local law, workplace policy, privacy requirements, and the camera’s configured audio settings.

Audio should not be enabled indiscriminately in private or sensitive areas. Business operators should determine whether audio recording is necessary, inform relevant people where required, and apply appropriate access controls to recordings. A built-in microphone is a technical capability, not a recommendation to record conversations without considering privacy and consent obligations.

The camera documentation also identifies microSD card support, with available product references listing capacity support up to 512GB. A memory card is a separate component unless specifically included in the quotation. Local recording can provide an additional recording option, but it should not automatically be treated as a replacement for a properly sized network video recorder or central storage system.

Before deploying microSD recording, verify the supported card specification, maximum capacity for the supplied firmware, recording mode, retention target, and overwrite behaviour. For continuous recording, storage life depends on bitrate, scene activity, recording schedule, and card endurance.

PoE Connectivity and Installation Planning

Power over Ethernet allows compatible network equipment to carry data and electrical power over the same Ethernet cable. The available documentation lists PoE support and a 12V DC power option. PoE can simplify cable routing in ceiling-mounted installations because a separate DC power cable may not be required when the camera is powered by a compatible PoE switch or injector.

Before installation, confirm the exact PoE standard and power requirements from the current datasheet. The network switch must provide sufficient power budget for all connected devices, not merely have enough physical ports. Cable length, cable quality, grounding and surge protection should also be considered, particularly in commercial premises with long cable runs.

The camera is a wired network device, not a Wi-Fi camera. It requires a suitable Ethernet connection for network operation. A dedicated VLAN or appropriately secured surveillance network can help separate cameras and recorders from general office devices. Change default credentials, restrict management access, and keep firmware updated according to the manufacturer’s guidance.

For multi-camera installations across offices, retail spaces, or institutional buildings in Delhi NCR, an installer should document camera addresses, recorder channels, time synchronisation, recording schedules, and remote access permissions. These operational details help make the system easier to maintain after handover.

IP67 and IK10 Physical Protection

The available documentation lists IP67 ingress protection and IK10 impact protection. IP67 indicates a tested level of protection against dust ingress and temporary immersion under defined test conditions. IK10 indicates a high level of resistance to mechanical impact under the relevant test standard. These ratings can be useful when selecting a camera for locations where dust, accidental contact, or tampering is a concern.

Protection ratings should be interpreted within their intended limits. They do not mean the camera is indestructible, suitable for every corrosive environment, or immune to incorrect installation. Cable glands, connectors, mounting surfaces, and installation practices affect the protection of the complete assembly.

For commercial premises, the installer should select a mounting location that provides the required field of view while protecting the cable entry and allowing service access. Outdoor or exposed installation should be checked against the manufacturer’s installation instructions and the environmental conditions at the site.

Key Features

• 6MP Fisheye Imaging: High-resolution panoramic capture for broad-area surveillance and reduced blind spots when installed and configured correctly.
• 1.68mm Fixed Lens: Ultra-wide imaging intended for rooms, lobbies, retail areas, and vehicle interiors.
• Infrared Night Vision: Listed IR range up to 20 metres for low-light and dark scenes.
• Video and Network Features: H.265/H.264 compression, triple-stream capability, PoE, and network integration.
• Physical Protection and Warranty: IP67 and IK10 ratings in the available datasheet, with a 2-Year CP PLUS warranty to be confirmed against the supplied unit and invoice.

Technical Specifications

Package Contents

• CP PLUS fisheye camera unit — 1
• Mounting accessories and documentation — confirm the exact supplied contents before publishing or dispatch
• NOT INCLUDED unless specifically quoted: microSD card
• NOT INCLUDED unless specifically quoted: PoE switch or PoE injector
• NOT INCLUDED unless specifically quoted: 12V DC power adapter
• NOT INCLUDED unless specifically quoted: Ethernet cable, network video recorder, storage drive, monitor, and installation labour

For a complete surveillance installation, check compatibility with a CP PLUS IP CCTV kit or specify a separate recorder, storage and PoE arrangement appropriate to the number of cameras and required retention period.

Ideal Applications for Indian Businesses

Retail Shops and Showrooms: A fisheye camera can provide a broad overview of a shop floor, reception or customer service area. It is useful for reviewing movement across an open space, although a dedicated camera may still be needed for close-up identification at a cash counter or entrance.

Offices and Reception Areas: Offices in Noida, Gurgaon and Delhi can use panoramic surveillance to monitor shared areas and visitor movement. The installer should select a position that captures the required area without recording private spaces unnecessarily.

Vehicle and Transport Environments: The product’s wide-angle imaging can be considered for suitable vehicle-interior applications after confirming power, vibration, mounting, temperature and recording requirements. Vehicle installations should use the manufacturer’s approved mounting and electrical arrangements.

Commercial Buildings and Shared Spaces: Lobbies, waiting areas and common rooms can benefit from wide-area monitoring where a conventional camera’s narrower field of view would require several viewing directions. A site survey helps determine whether one fisheye camera provides sufficient detail or whether it should be combined with standard cameras.

Why Buy From Thencix

• Warranty Clarity: CP PLUS camera listings commonly specify a 2-Year Manufacturer Warranty; confirm the exact terms and eligibility for this model before purchase. Keep the GST invoice for warranty documentation.
• GST Invoice: Thencix provides GST invoicing for business procurement and accounting.
• Procurement Support: Visit or contact Thencix at 109B Osian Building, 12 Nehru Place, Delhi 110019.
• Compatibility Assistance: Contact +91 9891150949 to discuss recorder compatibility, PoE requirements, storage and installation planning before ordering.

Frequently Asked Questions

What type of camera is this

It is a 6MP network IR fisheye camera designed for wide-angle panoramic surveillance. It differs from conventional bullet and dome cameras by capturing a much broader scene through a fisheye lens.

What is the maximum image resolution

The available manufacturer datasheet lists a maximum resolution of 2560 × 2560 pixels. Other reseller pages show different resolution formats, so confirm the latest datasheet for the exact unit before using it in a technical submission.

Does it support night vision

Yes. Available product documentation lists infrared night vision with a range of up to 20 metres. Actual usable detail depends on installation position, subject distance and scene conditions.

Does it support Power over Ethernet

Yes. The available product material lists PoE support as well as a 12V DC power option. Confirm the exact PoE requirements and power budget before choosing a switch or injector.

Can the camera record audio

The product documentation lists a built-in microphone. Audio recording should be enabled only where appropriate for the site and applicable privacy requirements.

Can it record to a microSD card

Available product documentation lists microSD support up to 512GB. The card is not assumed to be included; confirm the supported card specification and recording settings for the supplied unit.

Is it compatible with a CP PLUS NVR

Compatibility depends on the NVR model, supported resolution, incoming bandwidth, firmware and fisheye dewarping support. Share the recorder model with Thencix on WhatsApp at +91 9891150949 before ordering.

What do IP67 and IK10 mean

IP67 indicates a defined level of dust and water-ingress protection, while IK10 indicates a defined level of mechanical impact resistance. Correct installation is still required to maintain protection.

What warranty applies in India

Available Indian reseller listings specify a 2-Year CP PLUS Manufacturer Warranty. Confirm the applicable warranty terms for the supplied unit and retain the GST invoice for any claim.

Does the camera include a recorder and hard drive

No recorder or hard drive is assumed to be included in the camera package. These components must be purchased separately unless explicitly listed in the quotation.

Is this camera suitable for identifying people at long distances

A fisheye lens prioritises broad coverage rather than narrow-angle long-distance detail. If identification at a distance is a key requirement, evaluate pixel density at the target location and consider adding a camera with a narrower lens.

How can I get a quotation from Thencix

Contact [email protected] or WhatsApp +91 9891150949. Thencix is located at 109B Osian Building, 12 Nehru Place, Delhi 110019. Share your intended use, recorder model and installation quantity for a more accurate quotation.
