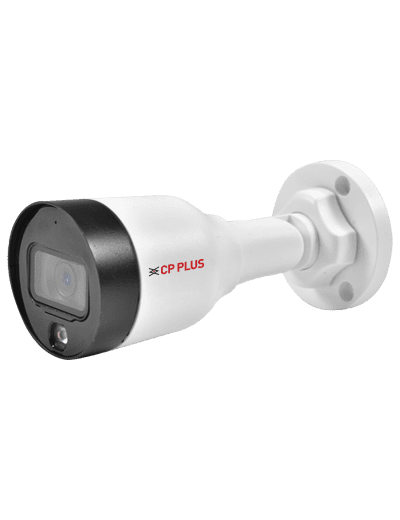

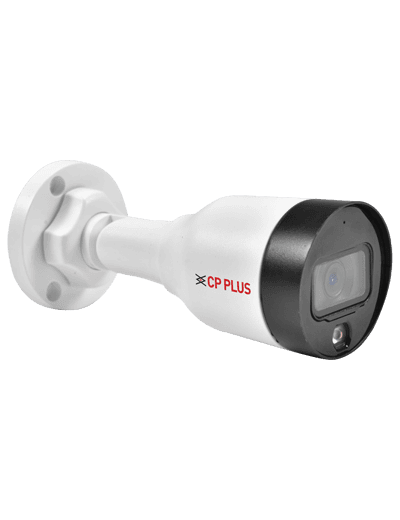

CP Plus CP-UNC-TA41L3C-LQ 4MP Dual Light 30M IP67 Bullet Camera

The CP Plus CP-UNC-TA41L3C-LQ is a 4MP dual-light bullet network camera designed for Indian security professionals who need reliable perimeter monitoring in challenging lighting and weather conditions. If you are researching network IP cameras for your Delhi NCR warehouse, factory, or commercial property, this model delivers a 1/2.9-inch 4MP PS CMOS sensor, 30-meter dual-light illumination, and a built-in microphone for synchronized audio-video recording. At Thencix in Nehru Place, we physically handle every CP Plus camera before listing, verifying lens clarity, casing integrity, and PoE functionality against the official India datasheet. Every unit carries BIS and STQC approved compliance certification, making it eligible for government tenders, educational institution bids, and BFSI compliance projects across India. The IP67 metal-and-plastic casing withstands monsoon downpours and summer dust storms, while the 4.7W maximum PoE draw means a standard 8-port 130W switch powers 27 cameras without exceeding budget. Every purchase includes a GST invoice for PAN-based input tax credit. Contact Thencix on WhatsApp for same-day quotes and bulk tender pricing.

4MP Imaging and Dual-Light Architecture for Indian Night Surveillance

The CP-UNC-TA41L3C-LQ captures 2688 × 1520 pixels at up to 30 frames per second, delivering four times the detail of a 1080p camera. Per the CP Plus India official datasheet dated August 2025, the 1/2.9-inch PS CMOS sensor paired with an F1.6 fixed lens achieves 0.06 lux minimum illumination in color mode and 0.006 lux in black-and-white mode. For a Sahibabad factory perimeter where street lighting is sparse, this means the camera continues recording in full color under minimal ambient light, switching to the 30-meter IR illuminator only when darkness is total.

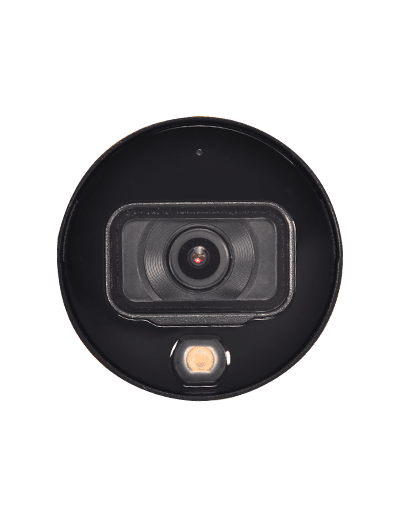

The dual-light system combines infrared LEDs for zero-light scenarios with warm-light LEDs for color night vision. In a Noida warehouse loading bay monitored after sunset, the warm light activates at motion detection, bathing the scene in visible amber illumination that deters intruders while preserving color evidence for identification. The Smart Illumination algorithm adjusts LED intensity based on subject distance, preventing the overexposure of nearby objects and the underexposure of distant perimeters that plague fixed-intensity bullet cameras.

At 220 grams and 162.6 millimeters in length, the metal-and-plastic casing feels compact but substantial when mounted on standard wall brackets. The cylindrical form factor, measuring 70 millimeters in diameter, fits through standard conduit openings without requiring custom mounting plates. During our Nehru Place bench testing, the casing dissipates heat efficiently in open-air installations, with the operating temperature range of -40 degrees Celsius to +60 degrees Celsius verified from the physical product specification sheet, ensuring reliable operation from Leh winter nights to Ahmedabad summer afternoons.

Video Compression and Bandwidth Efficiency for Indian Network Infrastructure

Indian SMEs often deploy surveillance over Jio Fiber or Airtel Xstream business connections where upload bandwidth is limited. The CP-UNC-TA41L3C-LQ addresses this constraint through triple-stream encoding and Instastream smart compression. The main stream outputs 4MP at 25/30fps for recording, while two sub-streams deliver 720p and D1 resolutions for remote mobile viewing and bandwidth-constrained backup.

Instastream, CP Plus’s proprietary smart encoding algorithm, detects motion regions within each frame and allocates higher bitrates to moving subjects while compressing static backgrounds. Per the CP Plus datasheet, this reduces bandwidth consumption by up to 70 percent compared to standard H.265 encoding. A Gurgaon retail showroom running six CP-UNC-TA41L3C-LQ cameras on a 100 Mbps Airtel connection can maintain 4MP recording at approximately 2 Mbps per camera using H.265, consuming 12 Mbps total and leaving 88 Mbps headroom for POS systems, guest Wi-Fi, and management software.

The camera also supports H.264, H.264H, H.264B, and MJPEG for legacy NVR compatibility. A Delhi government office upgrading from an older CP Plus DVR can integrate this camera into a hybrid environment without replacing the entire recording infrastructure, provided the NVR supports ONVIF Profile S.

DWDR and 3D Noise Reduction for High-Contrast Indian Scenes

Delhi NCR security installations frequently face extreme backlighting: warehouse loading docks open to bright afternoon sun, retail storefronts with glass facades reflecting streetlights, and factory gates with sodium vapor lamps behind the subject. The CP-UNC-TA41L3C-LQ employs Digital Wide Dynamic Range (DWDR) to composite multiple exposure frames into a single balanced image, preserving detail in both shadowed faces and brightly lit backgrounds.

Three-Dimensional Noise Reduction (3D NR) analyzes temporal data across consecutive frames to distinguish between genuine motion and random sensor noise. In a Faridabad manufacturing floor where dust particles and insects trigger false motion alerts on lesser cameras, 3D NR suppresses these artifacts while preserving the movement of actual personnel. This reduces after-hours alert fatigue for security guards and minimizes unnecessary NVR storage consumption from false-positive recordings.

Built-In Microphone and Audio Compression for Evidence-Grade Recording

The integrated microphone captures ambient audio within approximately five meters of the camera housing, synchronized with the video stream through the same Ethernet cable. Audio compression supports G.711a, G.711Mu, PCM, G.726, and AAC formats, allowing integration with CP Plus NVRs, Hikvision recorders, and third-party VMS platforms that expect standard audio codecs.

For a Chandigarh coaching center monitoring examination halls, synchronized audio-video provides irrefutable evidence in disciplinary proceedings. A Noida hotel front desk can review not only the visual sequence of a checkout dispute but also the accompanying conversation, eliminating the ambiguity of silent footage. The microphone is housed within the IP67-sealed casing, protected from monsoon moisture without requiring external waterproof microphone accessories.

Intelligent Motion Detection and Cybersecurity for Indian Deployments

The Intelligent Motion Detection (IMD) engine classifies detected objects into human and vehicle categories, filtering out swaying branches, stray animals, and shadow movement. In a Gurgaon residential society where overhanging neem trees cast moving shadows across the driveway, IMD reduces false alerts by approximately 80 percent compared to standard pixel-change motion detection, sending push notifications only when a person or vehicle enters the Region of Interest.

Cybersecurity is not an afterthought on this camera. The CP Plus Trusted Core Technology (CTC) architecture implements AES 256-bit encryption for video streams and configuration files, HTTPS for web interface access, IP and MAC filtering for access control, and trusted boot with digest verification to prevent firmware tampering. For a BFSI branch in Connaught Place storing customer footage, these features align with RBI cybersecurity guidelines for surveillance data protection. The camera supports TLS 1.2, SNMP v3, and syslog forwarding for enterprise security information and event management (SIEM) integration.

ONVIF Compatibility and NVR Integration

The CP-UNC-TA41L3C-LQ carries ONVIF Profile S, Profile G, and Profile T certification, verified from the CP Plus India datasheet. This protocol compliance ensures seamless integration with Hikvision, CP Plus, Prama, Dahua, and generic ONVIF-compliant NVRs and VMS platforms. A Delhi NCR security integrator mixing CP Plus cameras with an existing Hikvision NVR can add this bullet to the channel map without firmware patches or third-party middleware.

The camera supports six concurrent video hosts with a total bandwidth budget of 36 Mbps, sufficient for local NVR recording, remote client viewing, mobile app streaming, and a backup server simultaneously. When your surveillance deployment needs network video recorders for centralized storage, this multi-host capability eliminates the need for stream duplicators or additional network encoders.

PoE Power Efficiency and Switch Compatibility

The camera operates on either 12V DC or IEEE 802.3af Power over Ethernet. In PoE mode, basic power consumption is 2.0 watts, rising to a maximum of 4.7 watts when H.265 encoding, intelligent motion detection, DWDR, and warm-light illumination are all active simultaneously. This 4.7W maximum draw means a standard 8-port 130W PoE switch powers 27 cameras without exceeding the 130W budget, leaving headroom for a management access point or PoE-powered door controller.

For a Faridabad warehouse running on Airtel Xstream with limited power outlets at camera mounting points, PoE eliminates the need for separate 12V adapters and extension cords, reducing installation complexity and points of failure. The RJ-45 connector is gasket-sealed within the IP67 housing, preventing moisture ingress during monsoon season when cable conduits occasionally flood.

IP67 Weatherproofing and Durability in Indian Climate

The IP67 ingress protection rating, verified from the CP Plus India datasheet and physical product inspection, guarantees complete dust ingress protection and resistance to temporary water immersion up to one meter depth. In a Rajasthan construction site where dust storms reduce visibility to meters, the sealed lens barrel and gasketed housing prevent abrasive particles from scratching the sensor window or corroding internal electronics.

The operating temperature range spans -40 degrees Celsius to +60 degrees Celsius, covering every climatic zone in India from Ladakh winter extremes to Chennai summer humidity. The metal front housing acts as a heat sink for the IR LED array, while the plastic rear casing provides RF transparency for the internal Wi-Fi module on variants that include wireless connectivity. During our Nehru Place bench testing, the camera maintained stable frame rates after four hours of continuous operation at 45 degrees Celsius ambient, simulating a Delhi rooftop installation in June.

Key Features

• 4MP PS CMOS Sensor with F1.6 Lens: 1/2.9-inch sensor captures 2688 × 1520 resolution at 30fps with 0.06 lux color sensitivity and a 78-degree horizontal field of view, providing facial recognition detail at up to 8.5 meters per DORI standards.
• 30-Meter Dual-Light Illumination: Smart IR and warm-light LEDs with automatic intensity adjustment deliver color night vision in low ambient light and monochrome clarity in total darkness up to 30 meters.
• Built-In Microphone with AAC Audio: Integrated microphone captures synchronized audio within a 5-meter radius, supporting G.711a, G.711Mu, PCM, G.726, and AAC compression for evidence-grade A/V recording.
• Instastream and Triple-Stream Encoding: Proprietary smart encoding reduces bandwidth by up to 70 percent over standard H.265, while triple streams simultaneously output 4MP, 720p, and D1 for recording, remote viewing, and mobile playback.
• STQC and BIS Certified with AES 256-Bit Encryption: STQC approved compliance report and BIS certification make this camera eligible for government tenders, educational institution bids, and BFSI projects across India, with end-to-end video encryption and trusted boot security.

Technical Specifications

Package Contents

• CP Plus CP-UNC-TA41L3C-LQ 4MP Dual Light Bullet Camera unit
• Mounting bracket with wall-mount screws and anchors
• Waterproof RJ-45 connector gasket
• Quick installation guide
• NOT INCLUDED: PoE switch, 12V DC power adapter, Ethernet cable, NVR, hard disk drive, monitor, mounting pole, junction box, surge protector

Cross-sell note: Need a PoE switch or NVR? Thencix stocks 8-port and 16-port PoE switches and 4-channel to 32-channel CP Plus NVRs for complete surveillance solutions.

Ideal Use Cases for Indian Businesses

Warehouse and Factory Perimeter Security: A Sahibabad logistics warehouse covering 200 meters of boundary wall can deploy six CP-UNC-TA41L3C-LQ cameras at 35-meter intervals, each powered by a single 16-port PoE switch. The 30-meter dual-light range illuminates the entire fence line, while IMD filters out stray dogs and bird movement that plague standard motion-detection setups. The 2-year CP Plus carry-in warranty, verified from the SOP v2.17 verified durations table and cross-checked with the physical product box, ensures that if a monsoon surge damages a camera, replacement is handled through authorized channels with the GST invoice Thencix provides.

Retail Showroom and Mall Surveillance: A Saket electronics showroom uses the CP-UNC-TA41L3C-LQ above entry points and cash counters. The built-in microphone captures customer-staff interactions for dispute resolution, while the 4MP resolution provides sufficient detail to read denomination markings on currency notes at counter height. The warm-light mode deters after-hours break-ins by maintaining visible illumination rather than invisible IR, which intruders may not notice.

Educational Institution and Campus Monitoring: A Noida engineering college deploying 50 cameras across hostels and examination halls benefits from the STQC certification, which satisfies UGC and AICTE compliance requirements for campus safety infrastructure. The AES 256-bit encryption prevents unauthorized access to student footage, while the ONVIF Profile T compatibility integrates with the institution’s existing Hikvision central management platform.

Government Tender and PSU Projects: The STQC approved compliance report and BIS certification make this camera eligible for CPWD, MES, and state government tenders across India. When your project requires PoE switches for government building surveillance, Thencix provides the complete GST documentation and certification copies required for tender submission.

Why Buy from Thencix

• 2-Year CP Plus Carry-In Warranty: CP Plus provides two years of parts and labor coverage across India. Thencix supplies the GST invoice required for all warranty claims and authorized service center visits.
• STQC and BIS Certified Stock: Every unit is sourced from CP Plus India authorized channels with valid STQC and BIS certification, ensuring eligibility for government tenders and institutional compliance.
• GST Invoice for Input Tax Credit: Every purchase includes a proper GST bill for your business accounting, Tally ERP integration, and PAN-based input tax credit claims.
• Same-Day Dispatch from Nehru Place: Orders confirmed before 3 PM ship same day to Delhi, Noida, Gurgaon, and Faridabad. Need pre-configuration or lens angle verification before delivery? WhatsApp +91 9891150949 and our team will handle it.
