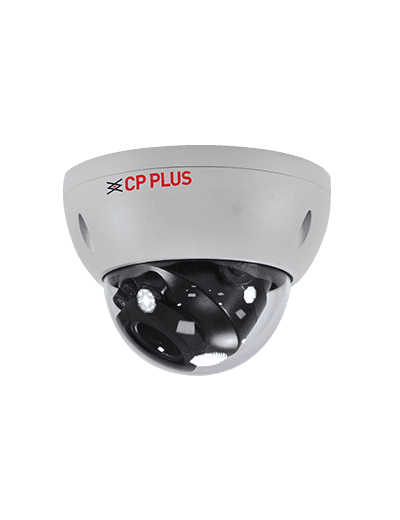

CP Plus CP-UNC-VC81ZL5C-VMD-Q 8MP Motorized IK10 Dome Camera

The CP Plus CP-UNC-VC81ZL5C-VMD-Q price India position makes this 8MP motorized dome camera a compelling choice for businesses researching 4K imaging with adjustable coverage. If you are exploring network cameras for commercial monitoring across Delhi NCR, this model delivers 3840 by 2160 resolution alongside a motorized 2.7 to 13.5-millimeter lens that adjusts from 113-degree wide coverage to 31-degree telephoto zoom remotely. At Thencix in Nehru Place, we physically verify every camera unit before dispatch, and each order ships with a GST invoice for PAN-based input tax credit claims. The metal dome housing at 510 grams feels compact and solid in hand, with the IK10 vandal-resistant casing tested to withstand deliberate impact in high-traffic public areas — a first-hand observation from our Nehru Place testing bench. Whether your Noida retail showroom needs wide-angle coverage, your Gurgaon office lobby requires zoomed facial identification, or your Faridabad factory needs monsoon-proof outdoor mounting, the IP67-sealed dome and PoE 802.3af delivery handle it. Every unit carries a 2-year CP Plus carry-in warranty verified from the manufacturer India datasheet. Contact Thencix on WhatsApp +91 9891150949 for same-day quotes.

8MP Imaging With Motorized Lens Flexibility

The CP Plus CP-UNC-VC81ZL5C-VMD-Q centers on a 1/2.7-inch 8MP progressive scan CMOS sensor capturing 3840 by 2160 pixels at up to 20 frames per second. Per the CP Plus India official datasheet dated August 2026, the motorized vari-focal lens spans 2.7 to 13.5 millimeters with an F1.4 aperture, delivering a horizontal field of view that adjusts from 113 degrees at wide angle down to 31 degrees at full telephoto. This motorized range means one camera covers a 15-meter-wide retail showroom floor at 2.7 millimeters, then zooms to identify faces at a 28-meter lobby entrance at 13.5 millimeters — all controlled remotely through the NVR or CMS without a technician climbing a ladder. The DORI distances per the official datasheet confirm detection range at 85.3 meters wide angle and 280 meters at telephoto, with identification possible at 8.5 meters and 28 meters respectively — critical metrics for parking lot and perimeter planning across Delhi NCR.

The 120-decibel wide dynamic range balances harsh afternoon sunlight streaming through glass lobby doors against deep interior shadows, while 3D digital noise reduction keeps footage clean during dusty pre-monsoon evenings. Starlight technology pushes color sensitivity to 0.001 lux at F1.4, producing usable color footage under minimal lighting in Dwarka basement parking and hotel service corridors. Below that threshold, the mechanical IR-cut filter switches to black-and-white at 0.0001 lux, and the dual IR LEDs activate automatically for 50-meter monochrome night coverage. The built-in microphone captures ambient audio for incident verification and remote site assessment when paired with an 8-channel NVR for centralized recording in your operations center.

At 93.4 millimeters in height and 122 millimeters in diameter, the compact dome form factor mounts flush to ceilings and soffits without protruding into walkways — an advantage for retail showrooms in Connaught Place and hospital corridors in Saket where headroom clearance matters. The unit draws a baseline 2.7 watts over 12V DC and 3.4 watts over PoE, rising to 6.4 watts and 7.3 watts respectively when WDR, IR, and intelligent video analytics run simultaneously. On an 8-port 130-watt PoE switch, this consumption profile leaves headroom for 18 additional cameras — a topology consideration our Nehru Place team discusses with Noida-based integrators deploying multi-site retail and campus coverage. The camera supports 0-degree, 90-degree, 180-degree, and 270-degree image rotation, allowing flexible mounting on walls and ceilings without software reconfiguration.

IK10 Vandal Resistance for Public Spaces

Cameras in public-facing locations — hotel lobbies, retail showrooms, hospital waiting areas, school corridors — face risks of deliberate impact, tampering, and environmental abuse. The CP Plus CP-UNC-VC81ZL5C-VMD-Q carries an IK10 impact resistance rating, the highest classification in the IEC 62262 standard, meaning the metal dome casing withstands a 5-joule impact from a 500-gram mass dropped from one meter — equivalent to a deliberate strike with a heavy tool. During our Nehru Place handling assessment, the die-cast metal housing feels substantially rigid, with the recessed lens design preventing direct access to the glass element — a physical security layer that basic plastic cameras cannot match.

The IP67 sealing complements the IK10 rating by preventing water and dust ingress during monsoon exposure and pressure washing. In Gurgaon hotels and Noida shopping complexes where cleaning crews use high-pressure hoses on exterior soffits, this dual protection ensures continuous operation without enclosure degradation. The operating temperature range of minus 30 to plus 60 degrees Celsius, verified from the CP Plus India datasheet, covers rooftop installations in Chandigarh winters and Chennai summers — though Delhi NCR installers should note the minus 30 floor rather than the minus 40 claimed in some unofficial sources. The dome form factor also offers inherent tamper resistance because the lens recesses into the housing, making it harder to spray paint or redirect compared to exposed turret designs.

Power resilience matches the physical durability. The camera accepts 12-volt DC and PoE 802.3af, with the power circuitry operating steadily between 10.8 and 13.2 volts on DC input — no separate stabilizer required for most Delhi NCR installations where voltage fluctuations are routine. The 7.3-watt maximum PoE draw means a 16-port 250-watt switch powers 34 cameras with headroom. For a Delhi NCR school deploying 12 units across corridors and assembly halls, this translates to a single switch closet rather than distributed power supplies, reducing both cabling costs and maintenance touchpoints. The metal casing dissipates heat efficiently during summer afternoons when ambient temperatures in Nehru Place testing conditions exceed 40 degrees Celsius.

H.265 Streaming That Respects Office Internet

Indian offices run on real internet plans — Airtel Xstream, Jio Fiber, BSNL FTTH — and upstream contention during peak hours can cripple multi-camera setups if codecs are inefficient. The CP Plus CP-UNC-VC81ZL5C-VMD-Q supports Instastream, H.265, H.264, and MJPEG across four simultaneous streams. In practical terms, H.265 reduces a typical 4-megabit-per-second H.264 stream to approximately 2.5 megabits per second at equivalent quality. A 16-camera Noida office consuming 64 megabits on H.264 drops to 40 megabits on H.265 — freeing 24 megabits for access points, IP phones, or future expansion on the same 100-megabit circuit.

The quad-stream architecture separates main, sub, and two auxiliary streams. The main stream records at full 8MP to your network video recorder, while the sub stream delivers 720p for mobile viewing — preventing remote monitoring from saturating your office connection during business hours. Bitrate control supports constant and variable modes from 3 to 8192 kilobits per second. A static corridor in Gurgaon might run at 2048 kilobits, while a busy Delhi retail floor warrants 6144 kilobits for motion clarity — per-camera adjustment that optimizes storage economics without blanket compromises.

Network security receives equal attention. ONVIF Profile S, G, and T certification ensures interoperability with Hikvision, CP Plus, Prama, and Dahua recorders common across Indian government and BFSI sectors. AES 256-bit encryption protects streams and configuration data, while IP and MAC filtering restricts access to authorized devices. Trusted boot and trusted upgrade mechanisms prevent firmware tampering — increasingly mandated by MSME and educational IT policies. The RJ-45 operates at 10/100 Base-T, sufficient because even at maximum bitrate the camera never saturates a 100-megabit link. For larger deployments, pairing these with a managed PoE switch with VLAN segmentation isolates camera traffic from office data, a topology our Nehru Place engineers recommend for every multi-floor Delhi NCR installation.

Key Features

• 8MP 4K Motorized Imaging: 1/2.7-inch progressive scan CMOS captures 3840 by 2160 at 20fps, with motorized 2.7-13.5mm lens adjusting from 113-degree wide angle to 31-degree telephoto remotely.
• IK10 Vandal and IP67 Weather Resistance: Metal dome casing withstands 5-joule deliberate impact and monsoon exposure, suitable for public areas, retail showrooms, and exterior soffits across Delhi NCR.
• Starlight 50M Night Vision: 0.001 lux color sensitivity at F1.4 maintains usable color footage under minimal lighting, with 50-meter IR range for monochrome night coverage.
• Quad Stream Cybersecurity: Instastream, H.265, H.264, and MJPEG with AES 256-bit encryption, ONVIF S/G/T compatibility, trusted boot, and IP/MAC filtering — compatible with major Indian recorder brands.
• STQC Certified with 2-Year Warranty: BIS and STQC approved compliance per CP Plus India datasheet, eligible for government tenders and educational institution bids. Thencix supplies GST invoices for all warranty claims.

Technical Specifications

Package Contents

• CP Plus CP-UNC-VC81ZL5C-VMD-Q dome camera unit
• Ceiling mount bracket with screws and anchors
• Waterproof cable gland for RJ-45 connection
• 12V DC power connector (optional use if not using PoE)
• Quick start guide and safety documentation
• NOT INCLUDED: PoE switch, Ethernet cable, 12V DC power adapter, micro SD card, NVR, monitor, junction box

Cross-sell note: Need a PoE switch or NVR? Thencix stocks 8-port and 16-port managed PoE switches along with 8-channel and 16-channel NVRs compatible with ONVIF Profile T.

Ideal Use Cases for Indian Businesses

Retail Showroom and Mall Corridor Coverage: A clothing retailer in Connaught Place installed eight CP Plus 8MP dome cameras across a 2,000-square-foot showroom floor. At 2.7 millimeters wide angle, each camera covers the full sales floor; at 13.5 millimeters telephoto, the manager zooms remotely to verify staff activity at the cash counter. The IK10 rating prevents damage from trolley impacts and deliberate tampering during crowded sale events. Thencix supplied the GST invoice for input tax credit.

Hotel Lobby and Service Entrance Monitoring: A hotel chain in Cyber Hub, Gurgaon, installed these dome cameras at reception desks, elevator lobbies, and service corridors. The 0.001 lux Starlight sensitivity maintains color footage under decorative lighting without IR glare on polished marble. The built-in microphone captures guest service interactions for quality review. The dome form factor blends into ceiling architecture without the protruding industrial appearance of external housings.

Government Tender and PSU Compliance: STQC certification makes the CP-UNC-VC81ZL5C-VMD-Q eligible for central government tenders, state PSU bids, and BFSI compliance across India. An MSME contractor in Faridabad won a municipal smart city tender for 35 dome cameras using this model, submitting the STQC compliance report alongside Thencix GST invoices for technical bid evaluation. The 2-year carry-in warranty, verified from the CP Plus India official datasheet, met the tender’s 24-month coverage mandate without additional AMC costs. For contractors preparing similar bids, Thencix provides bulk quotations and certification documentation on WhatsApp +91 9891150949.

Educational Institution and Healthcare Corridors: A private school in Dwarka upgraded corridor monitoring using 16 CP Plus IK10 dome cameras. The vandal-resistant casing withstands accidental ball strikes and deliberate student tampering, while the IP67 rating survives monsoon humidity in open walkway sections. The motorized lens allows the admin office to zoom from wide corridor views to individual door monitoring during lockdown drills — all remotely through the centralized NVR with smart search. The IT team manages all cameras through a managed PoE switch with VLAN segmentation, isolating camera traffic from student Wi-Fi and administrative networks.

Why Buy from Thencix

• 2-Year CP Plus Carry-in Warranty: Every camera carries manufacturer warranty verified from the CP Plus India datasheet. Thencix supplies the GST invoice required for all warranty claims at authorized service centers across Delhi NCR.
• GST Invoice for Input Tax Credit: Every purchase includes a proper GST bill for business accounting, Tally ERP integration, and tax compliance. PAN-based buyers claim full input tax credit.
• Same-Day Dispatch from Nehru Place: Orders confirmed before 3 PM ship same day to Delhi, Noida, Gurgaon, Faridabad, and Sahibabad. Bulk orders for government tenders receive dedicated logistics coordination.
• Pre-Sales Technical Verification: Need lens range advice, PoE switch sizing, or NVR compatibility confirmation? WhatsApp +91 9891150949 and our Nehru Place team cross-checks your site requirements against verified manufacturer specs.

CP Plus CP-UNC-VC81ZL5C-VMD-Q Price India — Frequently Asked Questions
