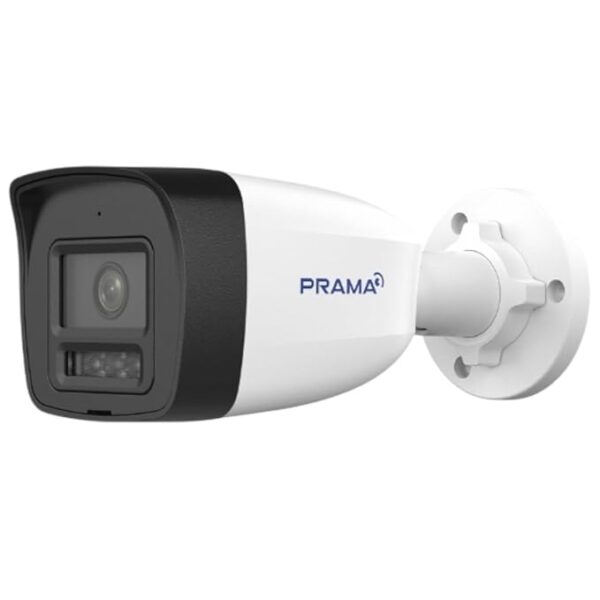

Prama PT-NC140D3-N(D2) 4MP STQC IR Bullet Network Camera

The Prama PT-NC140D3-N(D2) is a 4MP STQC-approved fixed bullet network camera with a 1/3-inch progressive scan CMOS sensor, 2560 × 1440 resolution, 30-metre smart IR night vision, 120 dB true WDR, intelligent human and vehicle classification, H.265+ compression, IP67 weatherproofing, and PoE support. This is the IR-only variant — no dual light, no built-in microphone — delivering 4MP resolution at a lower price point than the Ranginview WNM(D2) model with dual light and mic. The 4mm fixed lens provides a 78° horizontal field of view, covering driveways, perimeter walls, and shop entrances from a single wall mount. If you are looking for the Prama PT-NC140D3-N(D2) price in India with a 2-year warranty and valid GST invoice, Thencix is an authorised Prama partner in Nehru Place, Delhi. Browse our full range of IP cameras at Thencix for all resolutions and brands.

Prama PT-NC140D3-N(D2) — 4MP STQC IR Bullet Overview

The PT-NC140D3-N(D2) is the IR-only counterpart to the PT-NC140D3-WNM(D2) Ranginview bullet. Both share the same 1/3-inch 4MP sensor and bullet housing, but the N(D2) drops the dual light and built-in microphone to offer 4MP resolution at a budget-friendly price. For installations where colour night vision and audio recording are not critical — perimeter walls, parking lots, warehouse exteriors, and general outdoor monitoring — the N(D2) delivers the same sharp 4MP daytime footage and reliable IR night vision at a significantly lower cost per camera.

At 4MP (2560 × 1440), the camera captures 2x the detail of 2MP (1080p) cameras. The 4mm fixed lens provides a 78° horizontal field of view. DORI distances on the 4mm lens: detection at approximately 80 metres, observation at 32 metres, recognition at 16 metres, and identification at 8 metres — sufficient for reading number plates at gate distance and identifying faces at entrance points. 120 dB true WDR handles high-contrast scenes like entrances with bright sunlight behind visitors. H.265+ compression reduces storage by up to 50 percent versus H.264. STQC approval makes this camera compliant for government tenders. Pair this camera with a Prama or CP Plus NVR from Thencix for a complete system.

30m Smart IR, 120 dB WDR, and AI Classification

The 850nm IR LEDs illuminate scenes up to 30 metres in complete darkness. Smart IR automatically adjusts LED intensity based on scene distance — close-up subjects are not overexposed while distant objects remain visible. The 120 dB true Wide Dynamic Range is a significant upgrade over the 2MP N(D2) variant’s digital WDR — true WDR captures detail in both bright and dark areas simultaneously, essential for cameras facing building entrances where indoor darkness and outdoor sunlight create extreme contrast.

On-board intelligent algorithms classify detected motion as human, vehicle, or other — triggering alarms only for genuine security events. False alerts from animals, swaying branches, and shadows are filtered out. Combined with IP67 dust and water resistance and an operating temperature range of –30 °C to +60 °C, the camera handles outdoor Indian conditions year-round. The bullet housing with integrated sun shield protects the lens from direct rain and sun glare. For PoE switches to power this camera, explore our PoE switch range at Thencix.

Key Features — Prama PT-NC140D3-N(D2)

• 4MP Resolution, 2560 × 1440: 1/3″ CMOS sensor with 4mm lens (78° horizontal FOV). DORI: D 80m, O 32m, R 16m, I 8m. 2x the detail of 2MP cameras
• 30m Smart IR Night Vision: 850nm IR LEDs with auto-intensity adjustment. 0.01 lux colour sensitivity. IR cut filter for automatic day/night switching
• 120 dB True WDR: Handles high-contrast scenes — bright entrances, windows with backlight, indoor-outdoor transitions. Superior to digital WDR on 2MP models
• STQC Approved, IP67 Weatherproof: Government tender compliant. Dust-tight and waterproof bullet housing with sun shield. –30 °C to +60 °C
• H.265+ Compression, PoE (802.3af), ONVIF: 50% storage savings vs H.264. Single-cable PoE install. ONVIF Profile S and T for multi-brand NVR compatibility

Technical Specifications — Prama PT-NC140D3-N(D2)

Package Contents

• 1x Prama PT-NC140D3-N(D2) 4MP Bullet Camera
• 1x Mounting bracket and screw kit
• 1x Quick Installation Guide
• 1x Waterproof RJ-45 boot
• Note: Power adapter not included — supports PoE (802.3af) for single-cable installation. If using 12 VDC, adapter purchased separately.
• Note: NVR, PoE switch, and Ethernet cable not included. WhatsApp +91 9891150949 for system bundles at project pricing.

Ideal Use Cases — Prama PT-NC140D3-N(D2) in India

Government Tenders with 4MP Requirement: Many government RFPs now specify 4MP minimum resolution. The PT-NC140D3-N(D2) meets the 4MP STQC requirement at the lowest price point — ideal for installations where the tender specifies 4MP but does not require audio or colour night vision. Use these for general perimeter and outdoor coverage, and deploy the WNM(D2) variant only at critical identification points where colour night evidence matters. Thencix provides STQC documentation — WhatsApp +91 9891150949.

Commercial Perimeters, Warehouses, and Parking Lots: The 4MP resolution with 120 dB true WDR captures sharp footage at building entrances where lighting conditions change dramatically between indoor and outdoor. The 30m IR range covers parking lot sections, loading docks, and perimeter fence lines. At the N(D2) price point, you can deploy more cameras for the same budget compared to the WNM(D2), giving better overall coverage. GST invoice from Thencix for full input tax credit.

Why Buy the Prama PT-NC140D3-N(D2) from Thencix

Thencix is an authorised Prama partner in Nehru Place, Delhi — every product is genuine, specification-verified, and backed by our in-house warranty support team.

• 100% genuine Prama product — authorised partner, sealed box
• 2-year Prama India manufacturer warranty — Thencix handles everything: diagnostics, pickup, replacement, return. You don’t lift a finger
• Valid GST invoice with every order — claim full input tax credit
• STQC documentation available for tender submissions
• Compatible NVRs, PoE switches, and cables available to bundle
• Express delivery across Delhi, Noida, Gurgaon, and Faridabad
• Pan-India delivery available
• Cash on Delivery available
• Walk-in: 109B Osian Building, 12 Nehru Place, Delhi 110019
• WhatsApp: +91 9891150949
