Prama PT-NC163D3-WNM(D2) 6MP STQC Dual Light Turret Camera

The Prama PT-NC163D3-WNM(D2) is a 6MP STQC-approved dual light fixed turret network camera with a 1/2.4-inch CMOS sensor, 3200 × 1800 resolution at 20 fps, combined IR and white light up to 30 metres, built-in microphone, human and vehicle classification, H.265+ compression, 120 dB WDR, and IP67 weatherproofing. The turret form factor offers a wider 105° horizontal FOV with the 2.8mm lens option and a compact Ø112 mm dome profile that blends into ceilings and soffits. If you are looking for the Prama PT-NC163D3-WNM(D2) price in India with a 2-year warranty and valid GST invoice, Thencix is an authorised Prama partner in Nehru Place, Delhi. Browse our full range of IP cameras at Thencix for all form factors and resolutions.

Prama PT-NC163D3-WNM(D2) — 6MP Turret Camera Overview

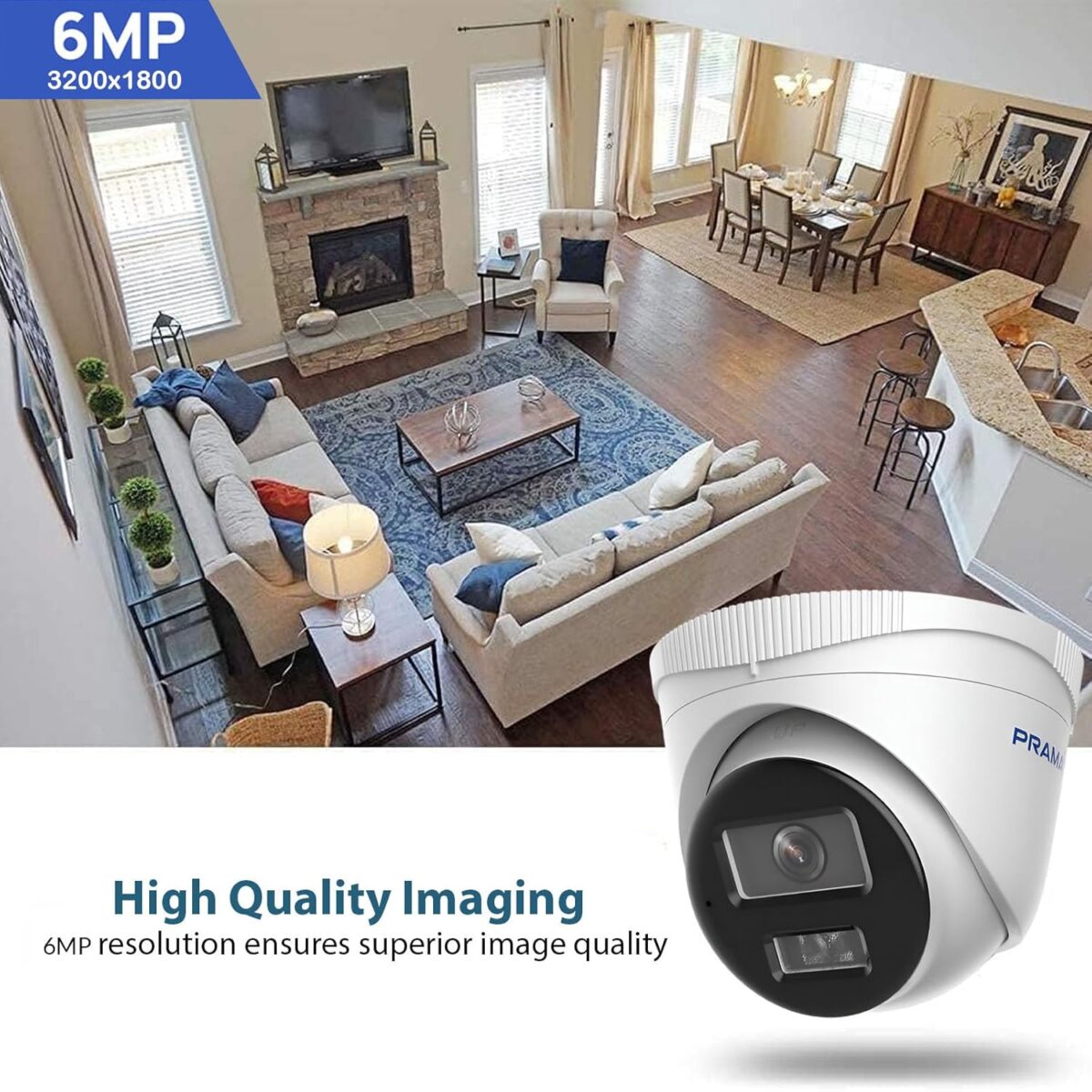

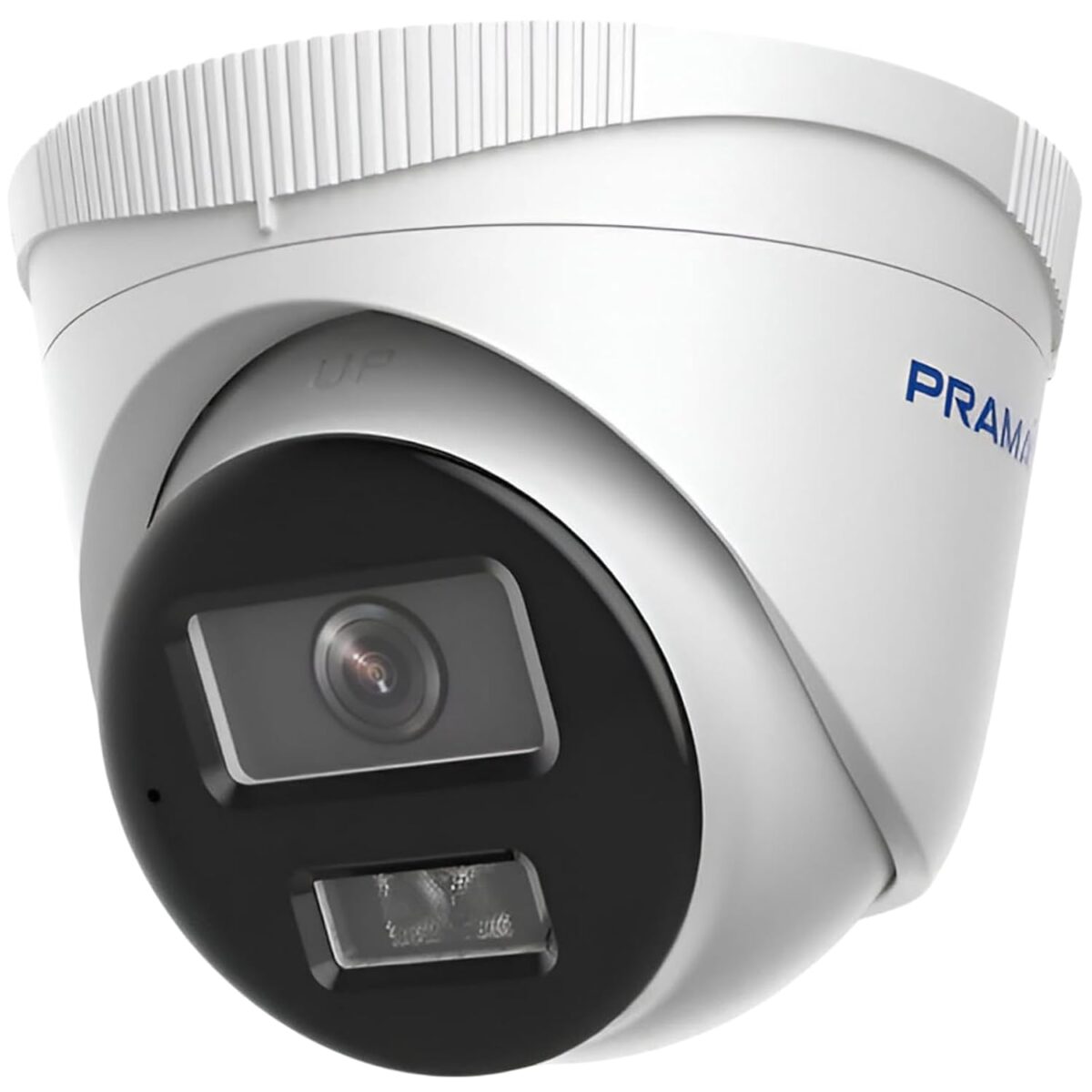

The PT-NC163D3-WNM(D2) is the turret variant of Prama’s Rangin View 6MP series — sharing the same 1/2.4-inch progressive scan CMOS sensor, dual light system, and AI detection as the bullet model (PT-NC160D3), but in a compact dome-style turret housing designed for ceiling-mount and soffit-mount installations. The turret form factor is preferred for indoor corridors, lobbies, retail ceilings, and covered outdoor areas where a low-profile camera is needed. At 6MP (3200 × 1800 at 20 fps), it captures significantly more detail than 4MP cameras in the same price range — faces, text, and number plates are clearly readable in both live view and playback.

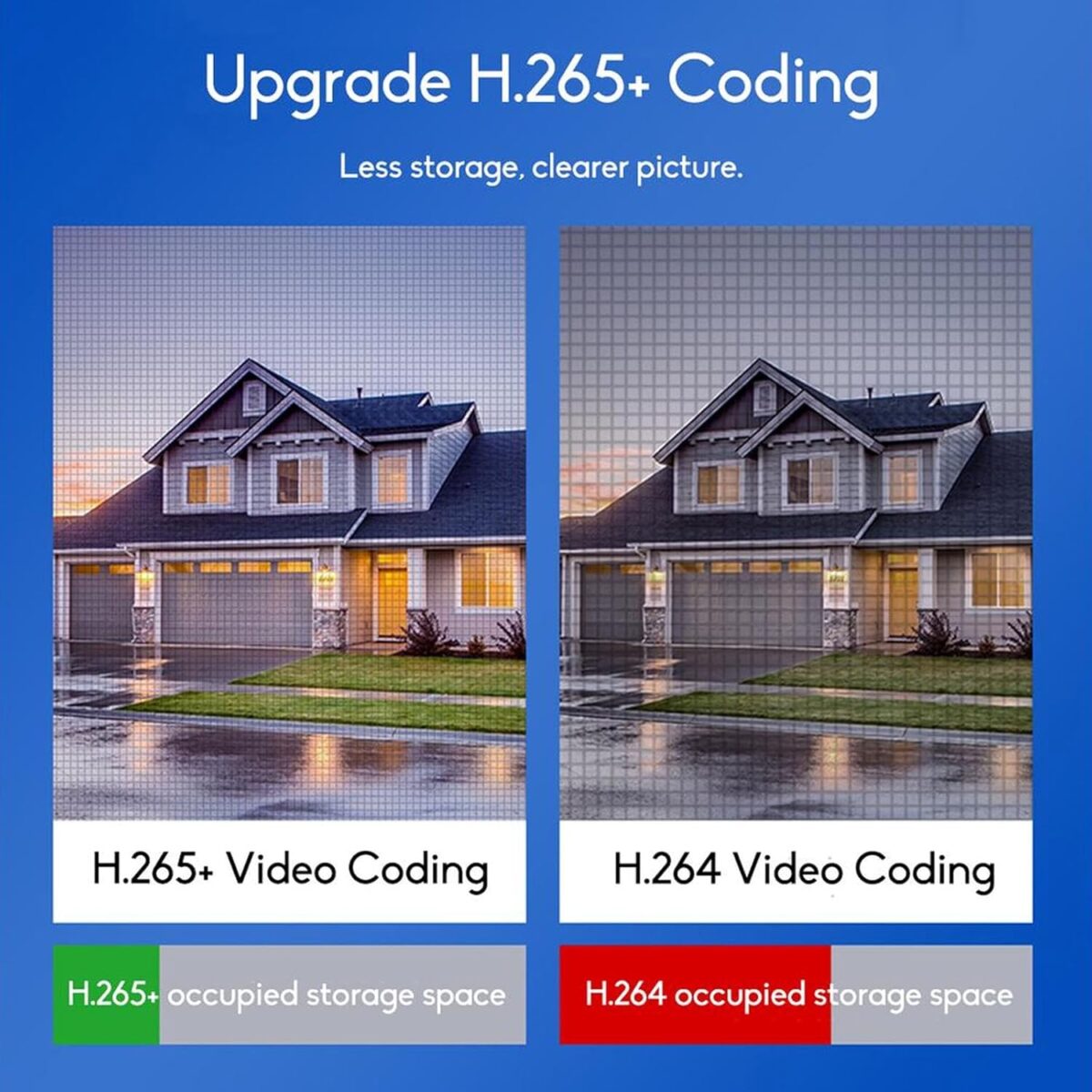

The camera ships with 2.8mm and 4mm lens options. The 2.8mm lens provides a wide 105° horizontal field of view — covering an entire room, corridor, or wide entrance from a single mount point. The 4mm lens narrows the FOV to 78° but increases the recognition distance from 15 metres (2.8mm) to 23 metres (4mm). H.265+ compression reduces bandwidth and storage by up to 50 percent versus H.264 with bit rates configurable from 32 Kbps to 16 Mbps. The F1.6 aperture with 0.005 lux minimum illumination in colour delivers usable footage in very low ambient light before the IR cut filter switches to night mode.

Smart Dual Light — IR and White Light Combined

The PT-NC163D3-WNM(D2) integrates 850nm infrared LEDs and white light LEDs with three modes and a 30-metre range. IR mode captures covert black-and-white footage without visible light. White light mode provides full-colour night footage capturing clothing colours, vehicle colours, and details monochrome IR misses. Smart dual light mode runs in IR until motion is detected, then switches to white light automatically — capturing colour evidence at the moment of intrusion while acting as a visible deterrent. For Indian retail, office, and residential installations, smart mode provides covert surveillance by default with colour capture when it matters. Pair this camera with a Prama or CP Plus NVR from Thencix that supports 6MP input for a complete system.

Built-In Microphone and AI Classification

The factory-calibrated built-in microphone with environmental noise filtering records synchronised audio alongside video — no external mic needed. Audio compression supports G.711, G.722.1, G.726, MP2L2, PCM, and AAC-LC at 8 kHz or 16 kHz sampling rates. On-board intelligent algorithms classify detected motion as human, vehicle, or other — sending alerts only for genuine security events and filtering out false triggers from animals, branches, and shadows. This is particularly valuable in Indian outdoor-mounted turret installations where stray animals and weather generate constant false alerts on standard motion detection.

Key Features — Prama PT-NC163D3-WNM(D2)

• 6MP Resolution at 20 fps: 1/2.4″ CMOS sensor, 3200 × 1800 with 2.8mm (105° FOV) or 4mm (78° FOV) lens options. F1.6 aperture, 0.005 lux colour — superior low-light performance
• Smart Dual Light — 30m IR + White Light: Three modes — covert IR, full-colour white light, and smart auto-switch on motion detection. 850nm IR for invisible monitoring, warm white for colour evidence capture
• Built-In Microphone with Noise Filtering: Synchronised audio in G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC. No external mic required. Human and vehicle AI classification reduces false alerts
• STQC Approved, ONVIF, H.265+: Government tender compliant. ONVIF Profile S and T for multi-brand NVR integration. 120 dB WDR handles extreme contrast at entrances

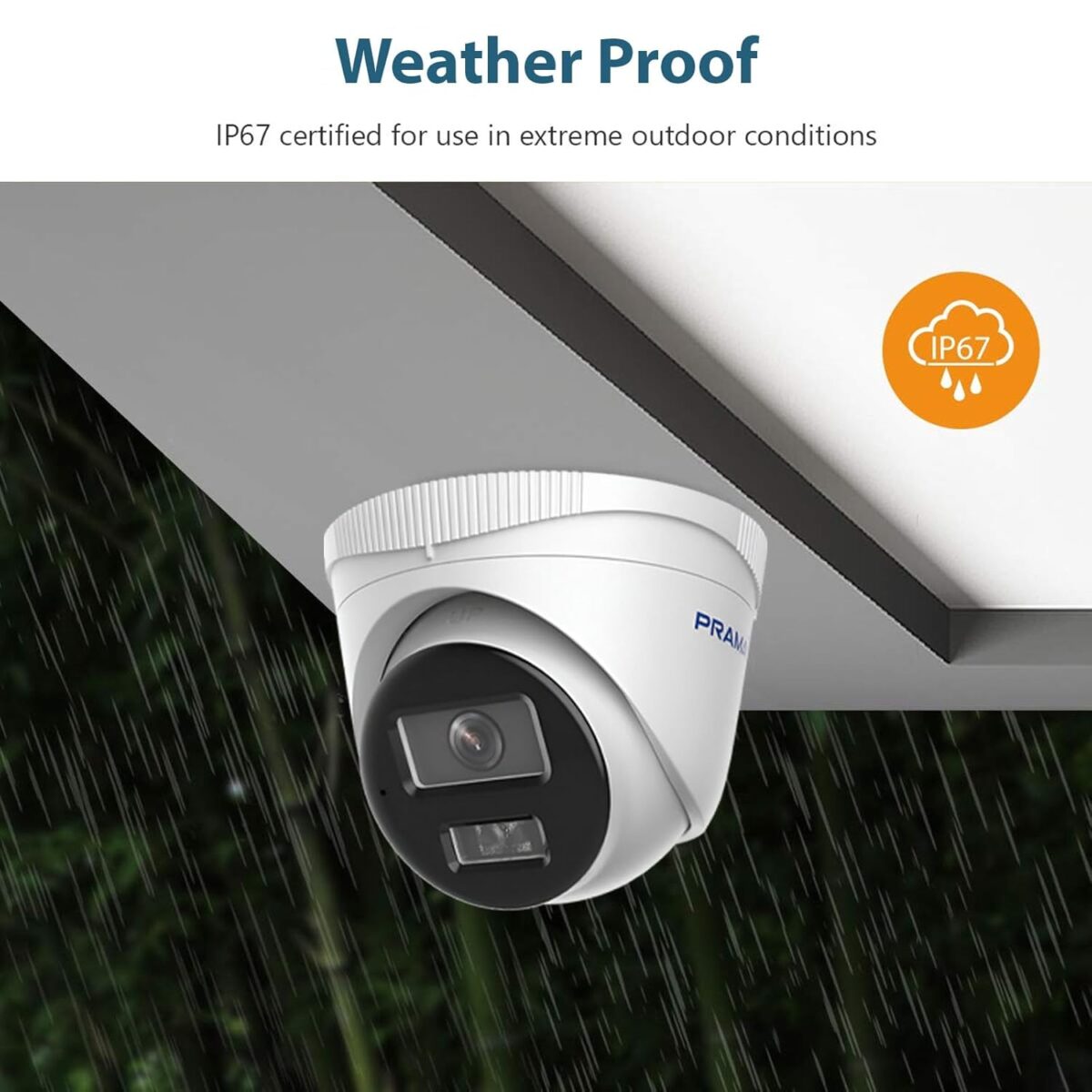

• Compact Turret, IP67, PoE (6.5W max): Ø112 × 82 mm dome profile at 340g — ceiling or soffit mount. PoE 802.3af at just 6.5W. –30 °C to +60 °C. Metal + plastic construction

Technical Specifications — Prama PT-NC163D3-WNM(D2)

Package Contents

• 1x Prama PT-NC163D3-WNM(D2) 6MP Turret Camera
• 1x Mounting bracket and screw kit
• 1x Quick Installation Guide
• 1x Waterproof RJ-45 boot
• Note: Power adapter not included — supports PoE (802.3af, max 6.5W) for single-cable installation. If using 12 VDC, adapter purchased separately.
• Note: NVR, PoE switch, and Ethernet cable not included. WhatsApp +91 9891150949 for system bundles at project pricing.

Ideal Use Cases — Prama PT-NC163D3-WNM(D2) in India

Government Projects and STQC Tenders: STQC approval makes this camera compliant for central and state government tenders, smart city projects, and public-sector installations. The turret form factor is preferred for indoor government buildings, corridors, and covered walkways where a low-profile ceiling mount is required. 6MP resolution, built-in mic, and ONVIF compliance meet typical government RFP specifications. Thencix provides certification documentation for tender submissions — WhatsApp +91 9891150949.

Retail Shops, Offices, and Indoor Commercial Spaces: The 2.8mm lens with 105° FOV covers an entire shop floor, billing counter, or office room from a single ceiling mount. The compact Ø112 mm turret profile blends into dropped ceilings without drawing attention. Smart dual light mode captures colour evidence at night only when motion is detected. Built-in mic records audio at billing counters and entry points. PoE at 6.5W max means a basic 60W switch powers 8 cameras. GST invoice from Thencix for full input tax credit.

Residential Lobbies, Corridors, and Covered Areas: The turret design is the natural choice for apartment lobbies, lift landings, stairwells, and covered parking areas across Delhi NCR. Human and vehicle classification sends alerts only on genuine events — not stray animals. IP67 and –30 °C to +60 °C operating range handles all Indian weather. At 340g and Ø112 mm, it mounts flush to any ceiling surface. For outdoor perimeter coverage, consider the bullet variant — explore our full CCTV range at Thencix.

Why Buy the Prama PT-NC163D3-WNM(D2) from Thencix

Thencix is an authorised Prama partner in Nehru Place, Delhi — every product is genuine, specification-verified, and backed by our in-house warranty support team.

• 100% genuine Prama product — authorised partner, sealed box
• 2-year Prama India manufacturer warranty
• Valid GST invoice with every order — claim full input tax credit
• STQC documentation available for tender submissions
• Compatible NVRs, PoE switches, and cables available to bundle
• Express delivery across Delhi, Noida, Gurgaon, and Faridabad
• Pan-India delivery available
• Cash on Delivery available
• Walk-in: 109B Osian Building, 12 Nehru Place, Delhi 110019
• WhatsApp: +91 9891150949
