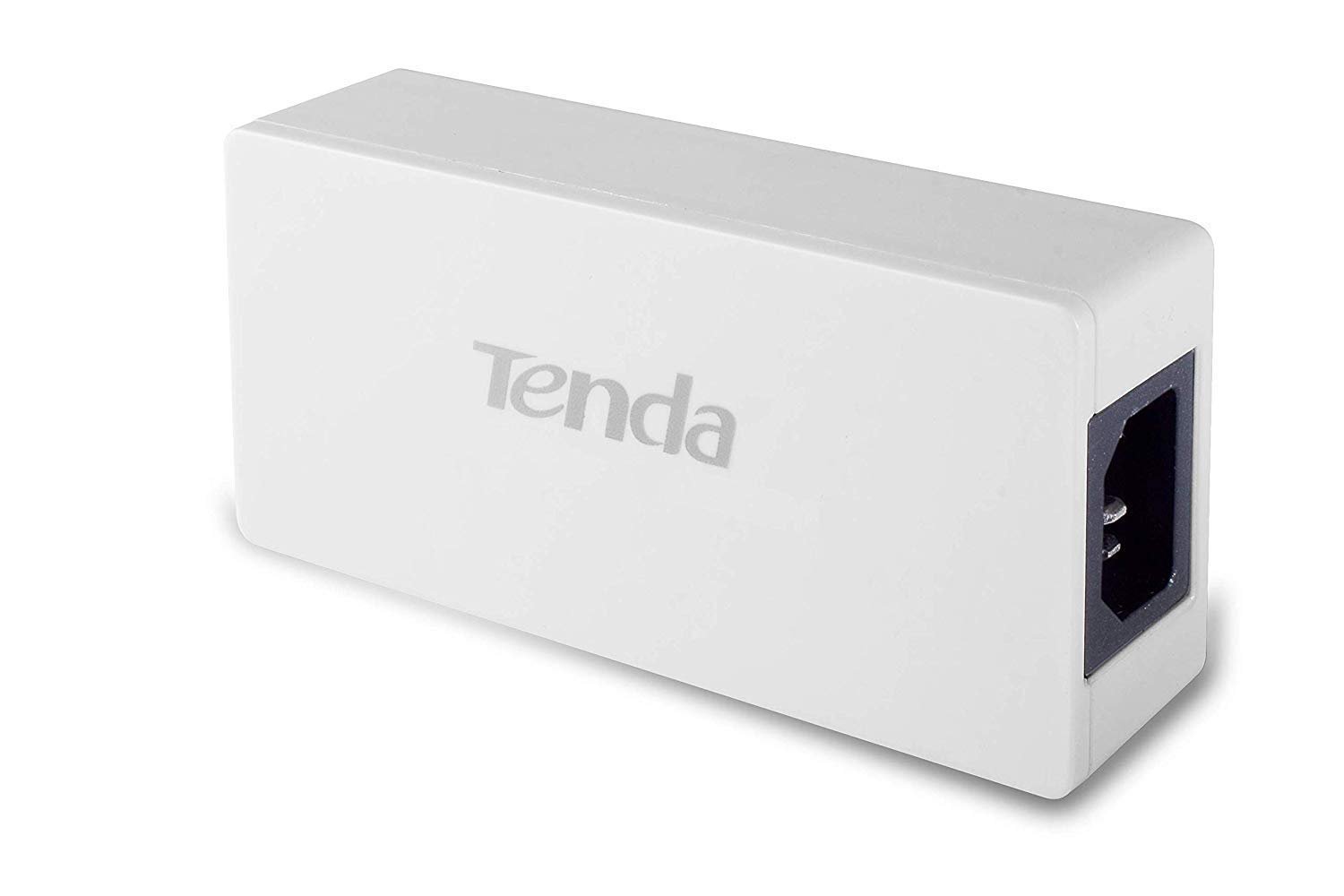

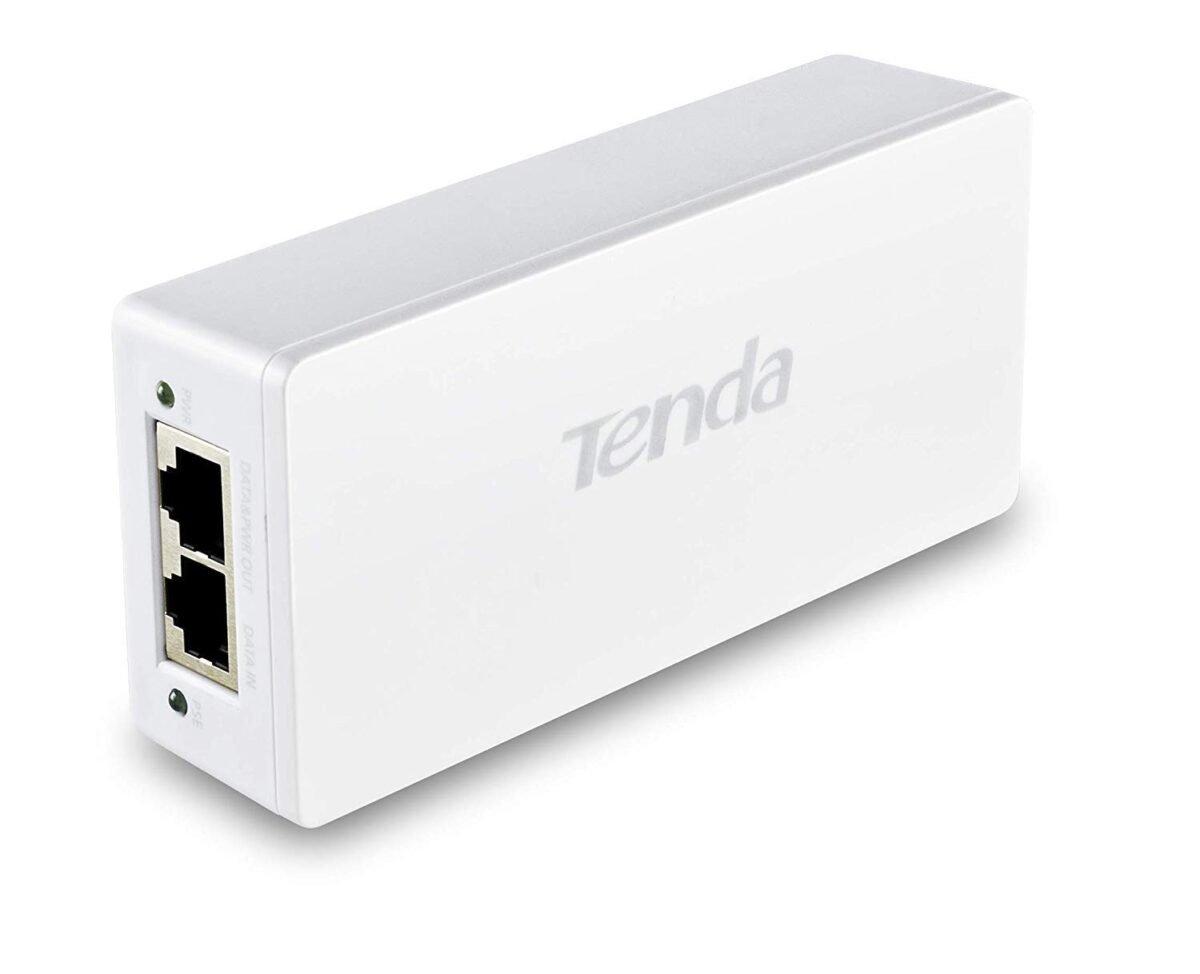

Tenda PoE30G-AT Gigabit PoE+ Injector 30W 802.3at/af 100m Range 3Yr

The Tenda PoE30G-AT is a professional-grade Gigabit Power over Ethernet injector designed to deliver both data and electrical power through a single Ethernet cable. Fully compliant with IEEE 802.3at and IEEE 802.3af standards, this PoE+ injector provides up to 30 watts of power output, making it ideal for powering wireless access points, IP cameras, VoIP phones, and other network devices that require PoE support. With its plug-and-play design and robust metal housing, the Tenda PoE30G-AT simplifies network installations by eliminating the need for separate power outlets at device locations, enabling flexible deployment in offices, homes, and commercial environments .

Explore the complete range of Tenda networking solutions at our dedicated Tenda PoE injector and networking collection. Every unit is sourced from authorised channels and carries manufacturer-verified specifications.

Power over Ethernet Plus – 30W Output for High-Power Devices

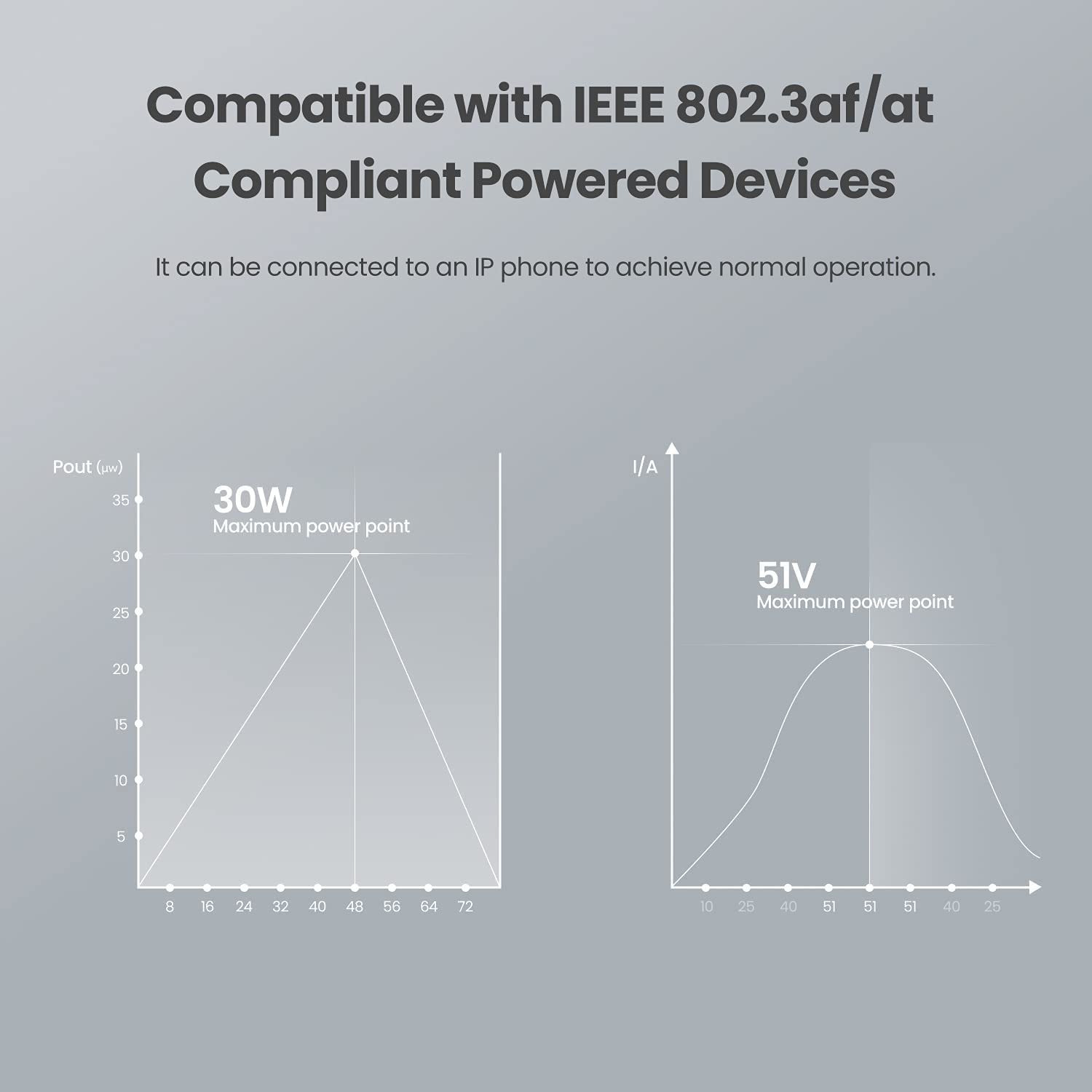

The Tenda PoE30G-AT supports both IEEE 802.3at (PoE+) and IEEE 802.3af (PoE) standards, providing flexible power delivery for a wide range of powered devices . Key power features include:

• 30 Watts Power Output: Delivers up to 30W at 53.5V DC, sufficient for powering high-consumption devices such as PTZ cameras, outdoor access points, and video phones
• IEEE 802.3af/at Compliance: Automatically detects and supplies appropriate power levels to connected PoE devices, ensuring safe and efficient operation
• 53.5V DC Output Voltage: Optimized voltage level for reliable power transmission over standard Ethernet cabling
• 0.6A Output Current: Stable current delivery ensures consistent performance under full load

Gigabit Ethernet Speed – Blazing-Fast Data Transmission

Equipped with two Gigabit RJ45 ports (10/100/1000Mbps), the PoE30G-AT ensures high-speed data transfer without bottlenecks:

• 1 GE Input Port (Data Only): Connects to your network switch, router, or non-PoE Ethernet source
• 1 Data & Power Output Port (PoE): Delivers both data and PoE power to the connected device over a single cable
• 1000 Mbps Throughput: Full gigabit speed supports bandwidth-intensive applications such as HD video surveillance, VoIP communications, and large file transfers
• Auto MDI/MDIX: Eliminates the need for crossover cables by automatically detecting and adapting to connected cable types

For expanding your network infrastructure, explore our range of Tenda PoE switches and networking equipment for comprehensive coverage.

100 Metre Transmission Distance

The Tenda PoE30G-AT supports standard Ethernet cable lengths up to 100 metres (328 feet) for both data transmission and PoE power delivery. This allows flexible placement of powered devices in optimal locations without being constrained by proximity to power outlets. For best results, we recommend using high-quality Cat5e or Cat6 Ethernet cables .

Plug-and-Play Simplicity

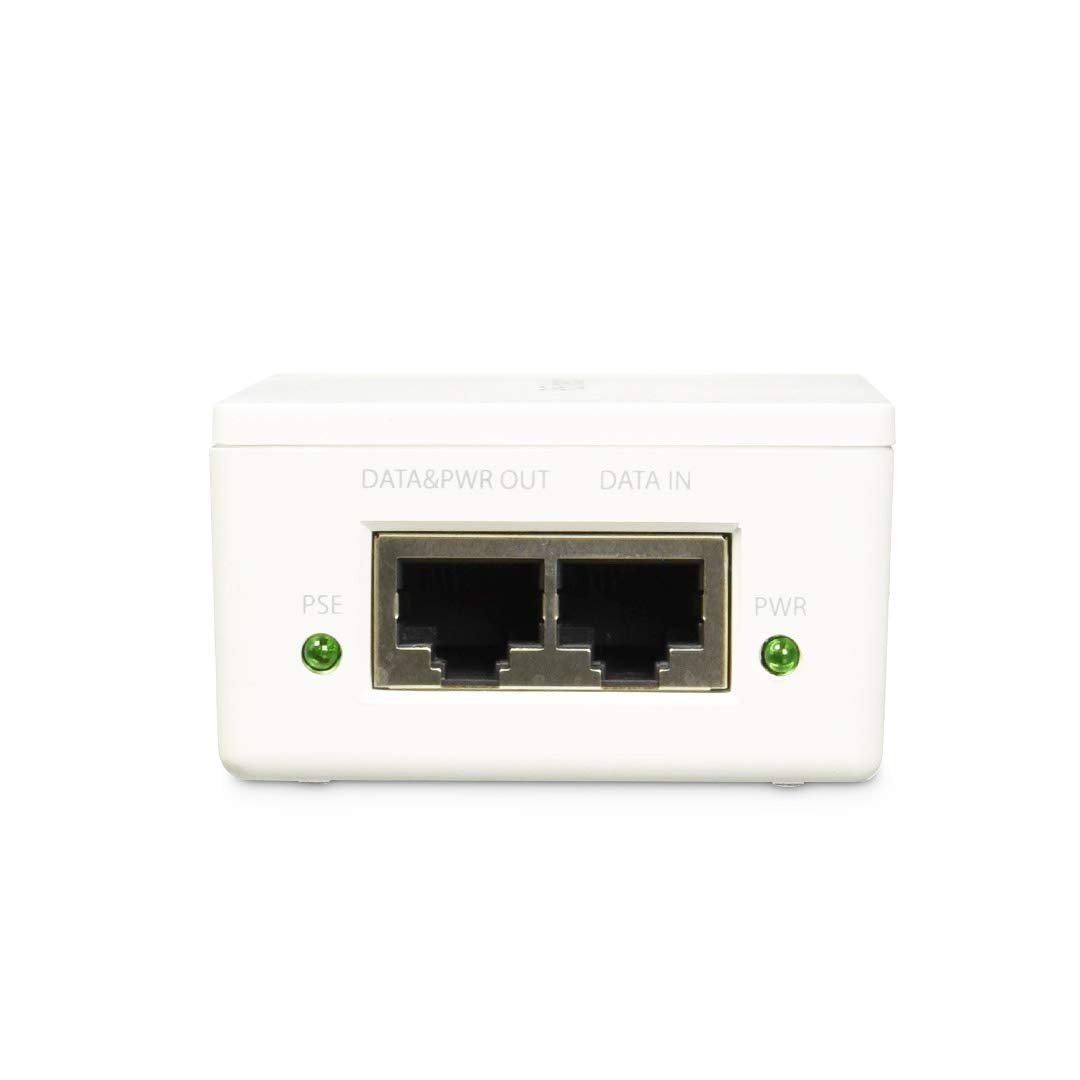

No configuration or software installation is required – simply connect your non-PoE switch or router to the input port, connect your PoE device to the output port, and plug in the power cord. The injector automatically handles the rest . The integrated LED indicators provide clear visual status:

• PWR LED: Illuminates green when power is connected
• PoE LED: Indicates active PoE power delivery to the connected device

Technical Specifications

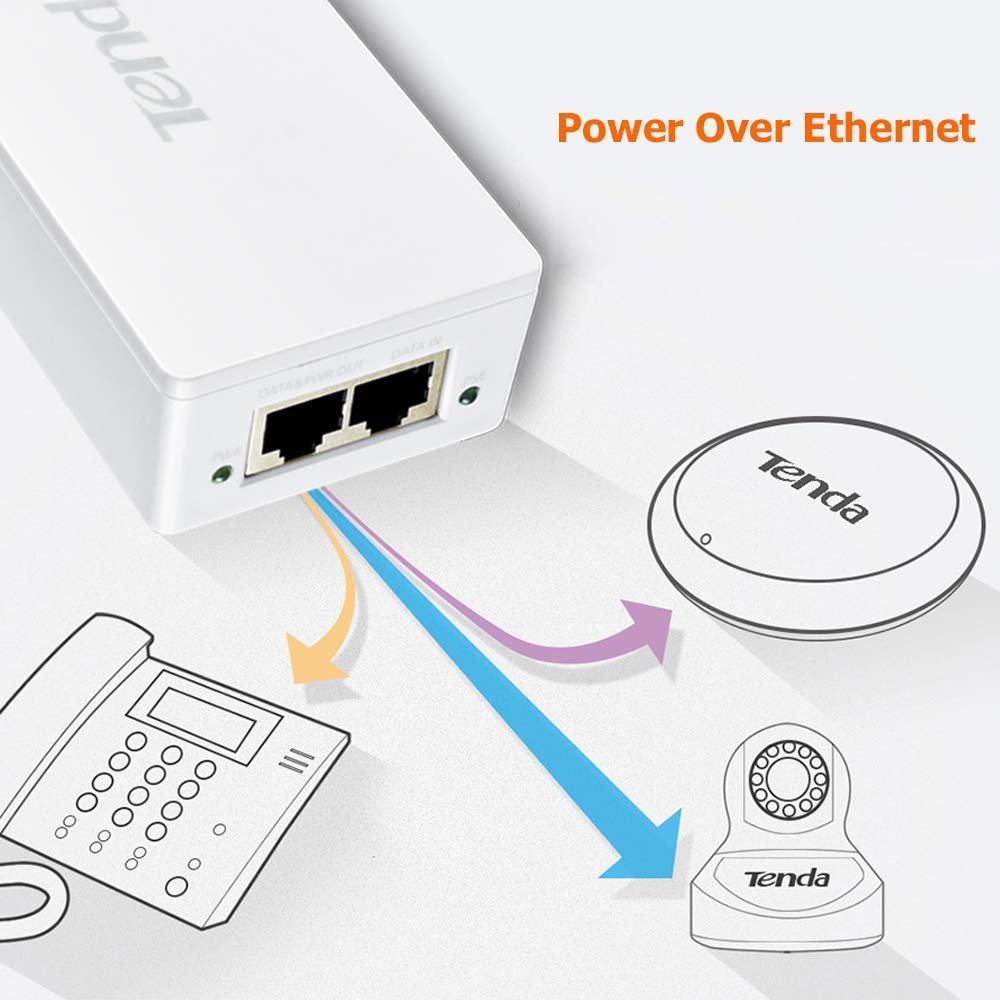

Ideal Applications

• Wireless Access Points: Power Wi-Fi access points in remote ceiling locations without electrical outlets
• IP Surveillance Cameras: Simplify security camera installations with single-cable power and data
• VoIP Phones: Deploy office phones anywhere with network connectivity
• Network Extenders and Repeaters: Power network extension devices in hard-to-reach areas
• Remote Device Deployment: Install PoE devices in optimal locations without power outlet constraints
• Network Upgrades: Add PoE capability to existing non-PoE switches and routers

Package Contents

• Tenda PoE30G-AT Gigabit PoE+ Injector (main unit)
• Detachable AC Power Cord (C13 to country-specific plug)
• Quick Installation Guide
• Warranty Card (3 Years Registration)

Note: This is a PoE injector only – it does not function as a network switch or router. Requires connection to an existing Ethernet source (switch, router, or modem).
