Tenda S110GPC 10-Port Fast Ethernet PoE+ Switch with 2 Gigabit Uplink & 80W Budget

The Tenda S110GPC is a 10-port unmanaged PoE+ switch designed specifically for high-resolution IP surveillance systems and small-to-medium business networks. Featuring 8 Fast Ethernet PoE ports and 2 Gigabit uplink ports, this switch delivers reliable power and data transmission for up to 8 cameras or wireless access points. With a total PoE budget of 80W and support for IEEE 802.3af/at standards, the S110GPC provides up to 30W per port – sufficient for powering PTZ cameras, outdoor access points, and other high-power devices. The extended mode feature allows PoE transmission distances up to 250 metres, making it ideal for large properties, warehouses, and perimeter surveillance applications. Its robust metal housing, plug-and-play design, and advanced features make it the perfect backbone for modern security installations.

Explore the complete range of Tenda networking solutions at our dedicated Tenda switch and networking collection. Every unit is sourced from authorised channels and carries manufacturer-verified specifications.

10-Port Configuration with 8 PoE+ Ports

The S110GPC features a total of 10 Ethernet ports optimized for surveillance and network expansion:

• 8 Fast Ethernet PoE Ports (10/100Mbps): Dedicated ports for IP cameras, VoIP phones, and wireless access points. These ports deliver both data and power over a single Ethernet cable, dramatically simplifying installation by eliminating the need for separate power outlets at each device location.

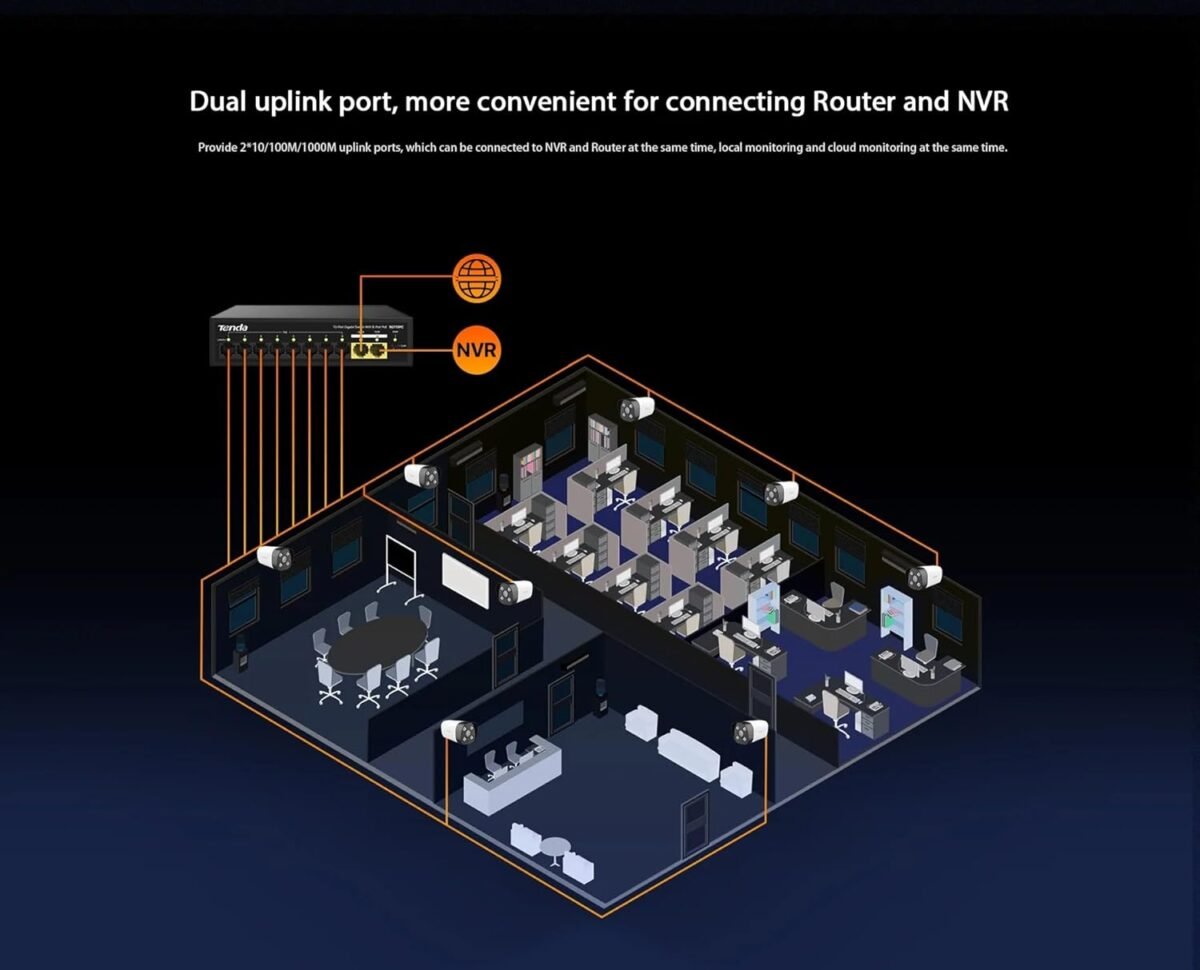

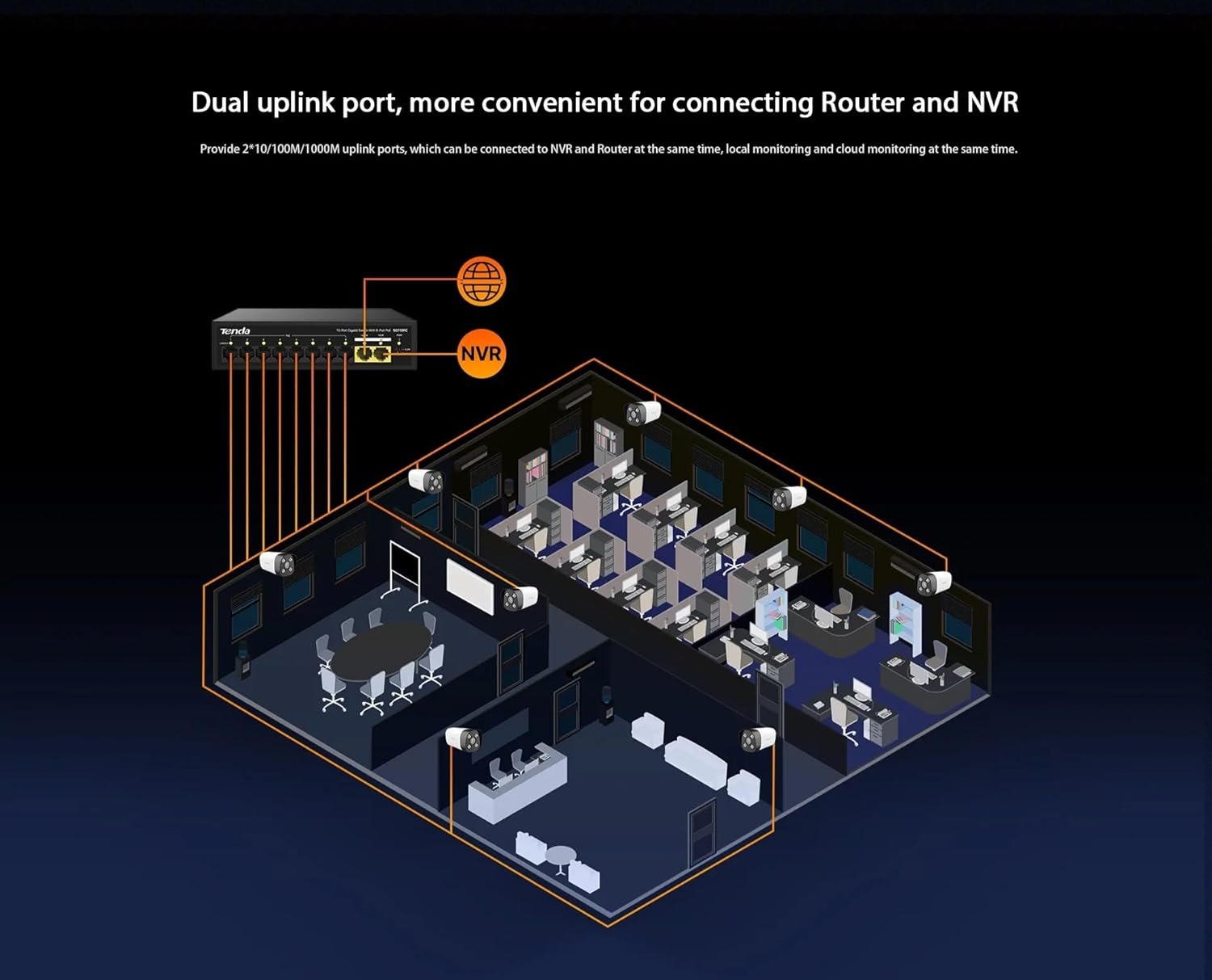

• 2 Gigabit Uplink Ports (10/100/1000Mbps): High-speed ports for connecting to your NVR, main router, or upstream network switch. The gigabit uplink ensures that video traffic from all 8 cameras can be transmitted without bottlenecking, maintaining smooth recording and remote viewing.
• Total Port Speed: The combination of Fast Ethernet for edge devices and Gigabit for uplinks provides the optimal balance of performance and cost-effectiveness for surveillance deployments.

For expanding your surveillance infrastructure, explore our range of Tenda PoE switches and networking equipment for comprehensive coverage.

Power over Ethernet – 80W Total Budget with 30W Per Port

The S110GPC supports both IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standards, providing flexible power delivery for a wide range of powered devices. Key PoE features include:

• Total PoE Budget: 80W across all 8 PoE ports, sufficient for powering multiple high-resolution cameras, PTZ domes, or outdoor access points simultaneously.
• Maximum Power Per Port: Up to 30W per port when using PoE+ (802.3at), suitable for high-power devices such as motorized PTZ cameras, outdoor access points with heaters, and video phones.
• Intelligent Device Detection: Automatically identifies compatible powered devices and delivers appropriate power levels, preventing damage to non-PoE equipment. Simply connect your devices and the switch handles the rest.
• PoE Power Management: Smart power allocation ensures that available power is distributed efficiently across connected devices, prioritizing critical equipment when approaching the total budget limit.

Extended Mode – PoE Transmission Up to 250 Metres

One of the most valuable features of the S110GPC is its Extended Mode, which pushes the boundaries of standard Ethernet cabling. When enabled on ports 1-8:

• Extended Distance: Supports PoE power and data transmission up to 250 metres – 2.5 times the standard 100-metre limit.
• Ideal Applications: Perfect for monitoring large perimeters, long driveways, warehouses, parking lots, and remote areas where running power to cameras would be impractical or costly.
• Reduced Infrastructure: Eliminates the need for intermediate switches or extenders, saving on equipment costs and installation complexity.
• Simple Activation: Extended Mode is typically enabled via a DIP switch or hardware configuration – no complex software setup required.

Note that when Extended Mode is enabled, port speeds are reduced to 10Mbps to achieve the longer transmission distance – still sufficient for most surveillance applications.

Robust Metal Housing and Surge Protection

The S110GPC is built for reliable 24/7 operation in demanding environments:

• Metal Enclosure: Durable metal housing provides excellent heat dissipation and physical protection compared to plastic switches, ensuring long-term reliability.
• Fanless Design: Silent operation makes it perfect for noise-sensitive environments like offices, conference rooms, and recording studios.
• Desktop or Wall Mountable: Compact design allows for flexible placement – can be placed on a desk or mounted on a wall using the integrated mounting slots.
• Surge Protection: Built-in protection safeguards your valuable equipment against power spikes and electrical transients.

Technical Specifications

Plug-and-Play Installation

The S110GPC is designed for effortless deployment with zero configuration required:

• Auto-Negotiation: Automatically detects and configures optimal speed and duplex settings for each connected device.
• Auto MDI/MDIX: Eliminates the need for crossover cables by automatically detecting cable type and adjusting accordingly.
• LED Status Indicators: Clear visual feedback for power, PoE status, and link/activity on each port simplifies troubleshooting.
• Hardware Configuration: Extended Mode can be enabled via DIP switch – no software or technical expertise required.

Package Contents

• Tenda S110GPC 10-Port Fast Ethernet PoE+ Switch
• External Power Adapter
• Power Cord
• Quick Installation Guide
• Warranty Card
• Mounting Screws and Rubber Feet (where applicable)

Why Buy from Thencix?

Thencix is your reliable source for genuine networking equipment — every router, switch, and extender is specification-verified, securely packed, and fully supported.

• 100% authentic products with manufacturer-verified specifications
• Professional, damage-safe packaging
• Fast delivery across India
• GST invoice with every order
• Cash on Delivery available
• Guided networking setup support via WhatsApp
• In-house warranty assistance — no need to contact the brand directly
• Warranty appointments arranged for you

Support:
Email: support@thencix.com
WhatsApp: +91 98911 50949

Browse our complete catalog of Tenda switches, PoE injectors, and networking equipment to find the perfect solution for your connectivity needs.

Ideal Applications

• IP Surveillance Systems: Perfect for powering and connecting up to 8 IP cameras to your NVR. Extended mode covers long distances for perimeter monitoring.
• Small to Medium Businesses: Connect office devices, VoIP phones, and wireless access points with reliable PoE power.
• Warehouses and Logistics: Extended coverage for security cameras across large floor spaces and storage areas.
• Parking Lots and Perimeter Security: 250-metre transmission capability ideal for monitoring boundaries and entrances.
• Retail Stores and Restaurants: Power surveillance cameras and guest Wi-Fi access points with simplified single-cable installation.
• Educational Campuses: Connect security cameras across school grounds and building perimeters.
