Tenda SG106PC 6-Port Gigabit Lite PoE Switch with 4x PoE+ 55W Uplink 3Yr

The Tenda SG106PC is a 6-port gigabit Lite PoE switch engineered for small-scale surveillance networking and business connectivity needs. Independently developed by Tenda, this unmanaged switch features 4 Power over Ethernet ports and 2 dedicated uplink ports, delivering reliable power and high-speed data transmission for IP cameras, wireless access points, VoIP phones, and other network devices. With a total PoE budget of 55W and support for both IEEE 802.3af and 802.3at PoE+ standards, the SG106PC provides intelligent device detection and efficient power management in a compact, fanless design. Ideal for small businesses, convenience stores, restaurants, offices, and home networks, this plug-and-play switch combines simplicity with advanced features like one-key VLAN isolation and QoS priority to optimize network performance for video surveillance and real-time applications.

Explore the complete range of Tenda networking solutions at our dedicated Tenda switch and networking collection. Every unit is sourced from authorised channels and carries manufacturer-verified specifications.

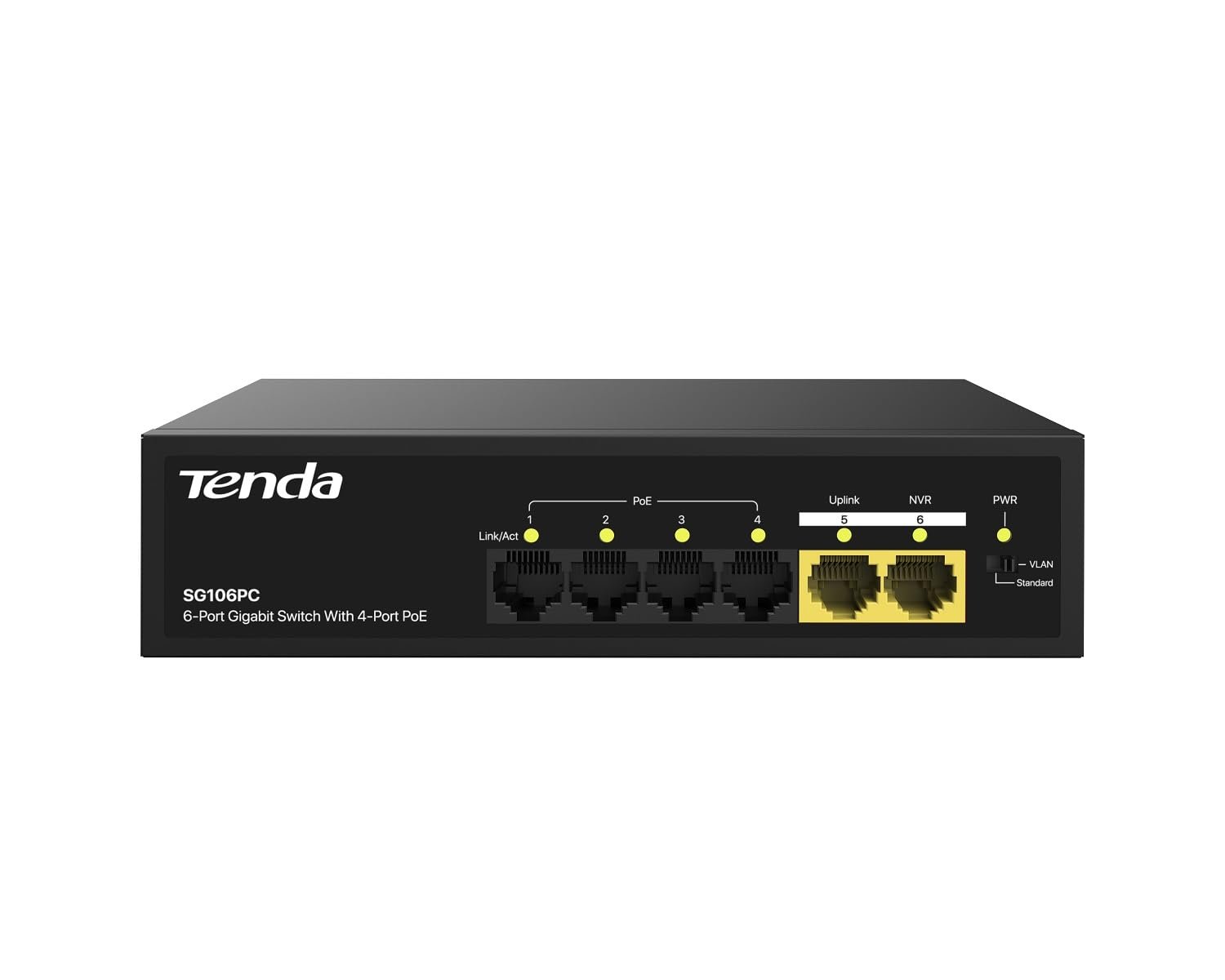

6-Port Gigabit Connectivity with 4 PoE Ports

The SG106PC features six auto-negotiation 10/100/1000Mbps Ethernet ports, including four ports with integrated PoE support (Data/Power) and two dedicated uplink ports for data transmission only. This thoughtful configuration provides:

• 4 PoE Ports (Ports 1-4): Deliver both data and electrical power over a single Ethernet cable, dramatically simplifying installation for IP cameras and wireless access points by eliminating the need for separate power outlets at each device location

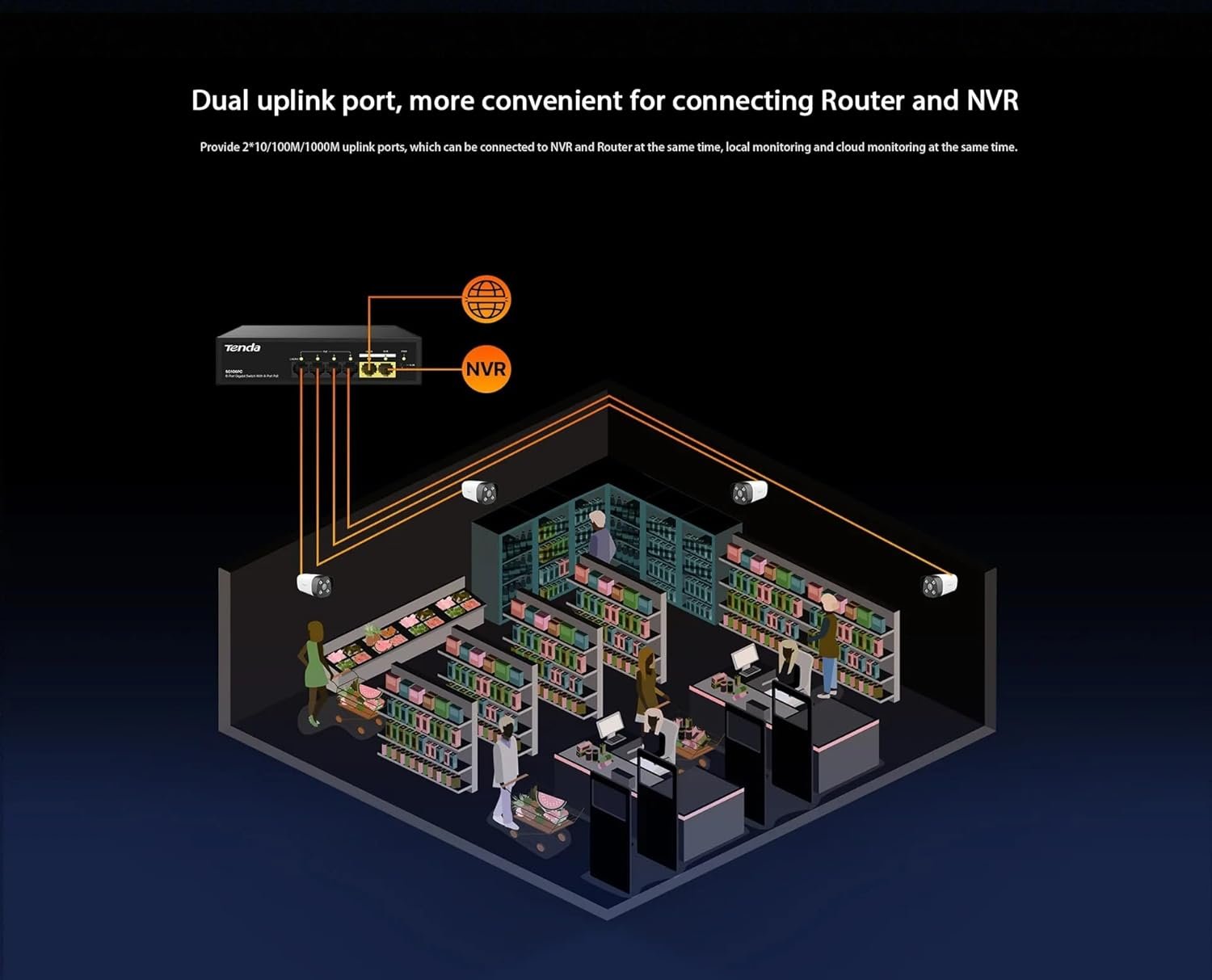

• 2 Uplink Ports (Ports 5-6): Dedicated ports for connecting to your main router, network video recorder, or additional switches, providing flexible network expansion options
• Full Gigabit Speed: All ports support 1000Mbps throughput, ensuring smooth high-definition video transmission, large file transfers, and lag-free network performance
• 12Gbps Switch Capacity: Non-blocking wire-speed forwarding architecture delivers a 12Gbps backplane bandwidth with 8.9 Mpps packet forwarding rate, eliminating bottlenecks even when all ports are operating at maximum capacity
• Auto MDI/MDIX Detection: Eliminates the need for crossover cables by automatically detecting and adapting to connected cable types

For expanding your network infrastructure, explore our range of Tenda PoE switches and networking equipment for comprehensive coverage.

Power over Ethernet – IEEE 802.3af/at Compatible

The SG106PC supports both IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standards, providing flexible power delivery for a wide range of powered devices. Key PoE features include:

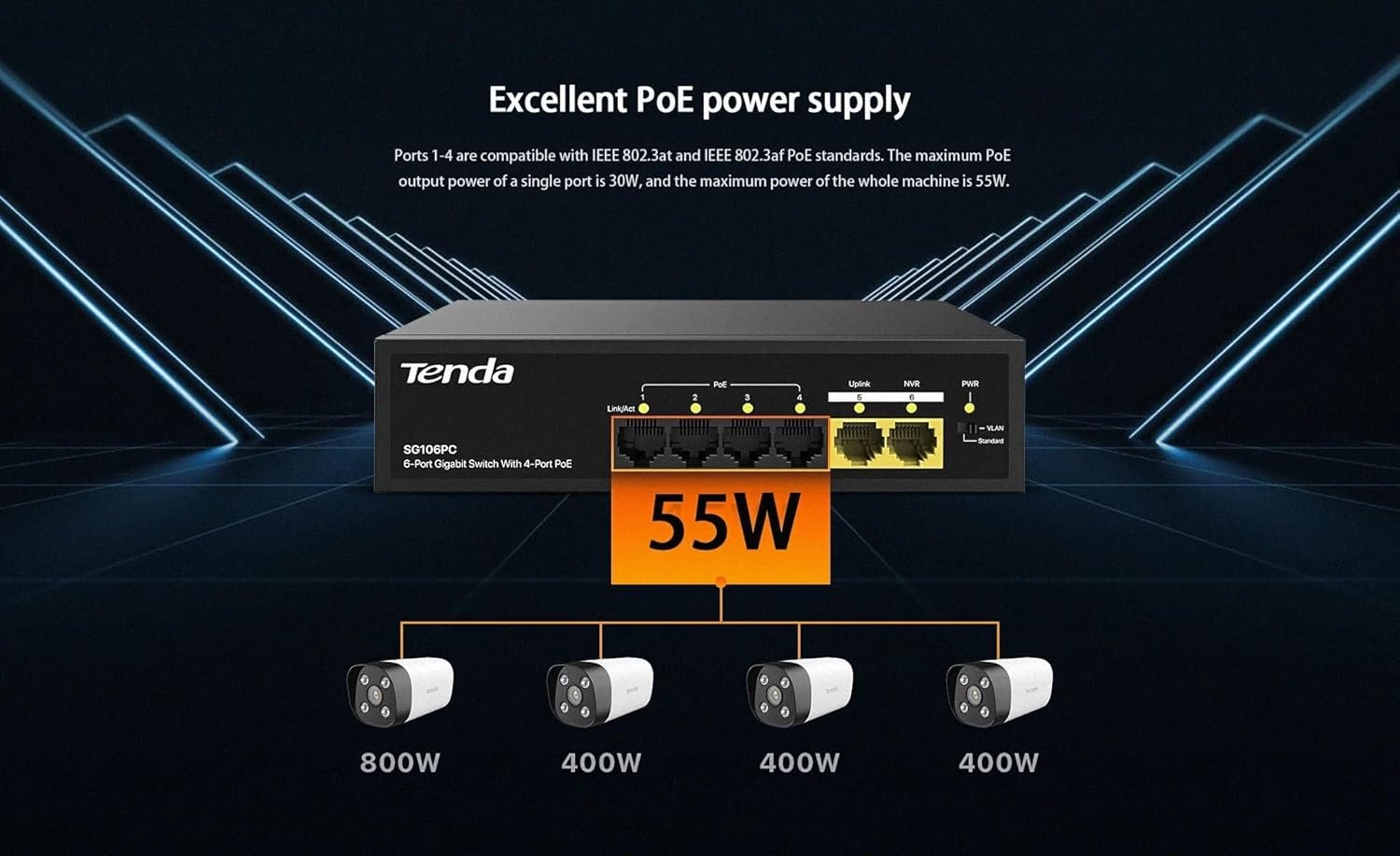

• Total PoE Budget: 55W across all four PoE ports, sufficient for powering multiple cameras, access points, or other network devices simultaneously
• Maximum Power Per Port: Up to 30W per port when using PoE+ (802.3at), suitable for high-power devices such as PTZ cameras, outdoor access points with heaters, and video phones
• Intelligent Device Detection: Automatically identifies compatible powered devices and delivers appropriate power levels, preventing damage to non-PoE equipment

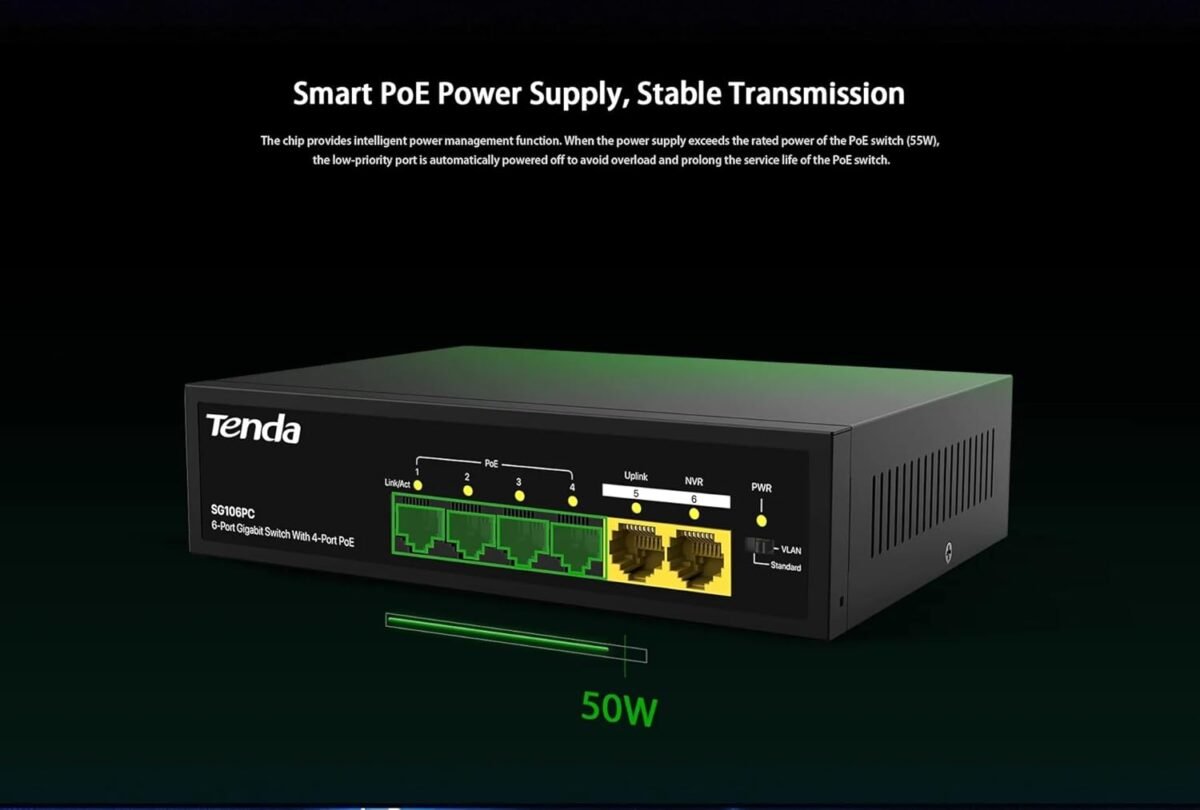

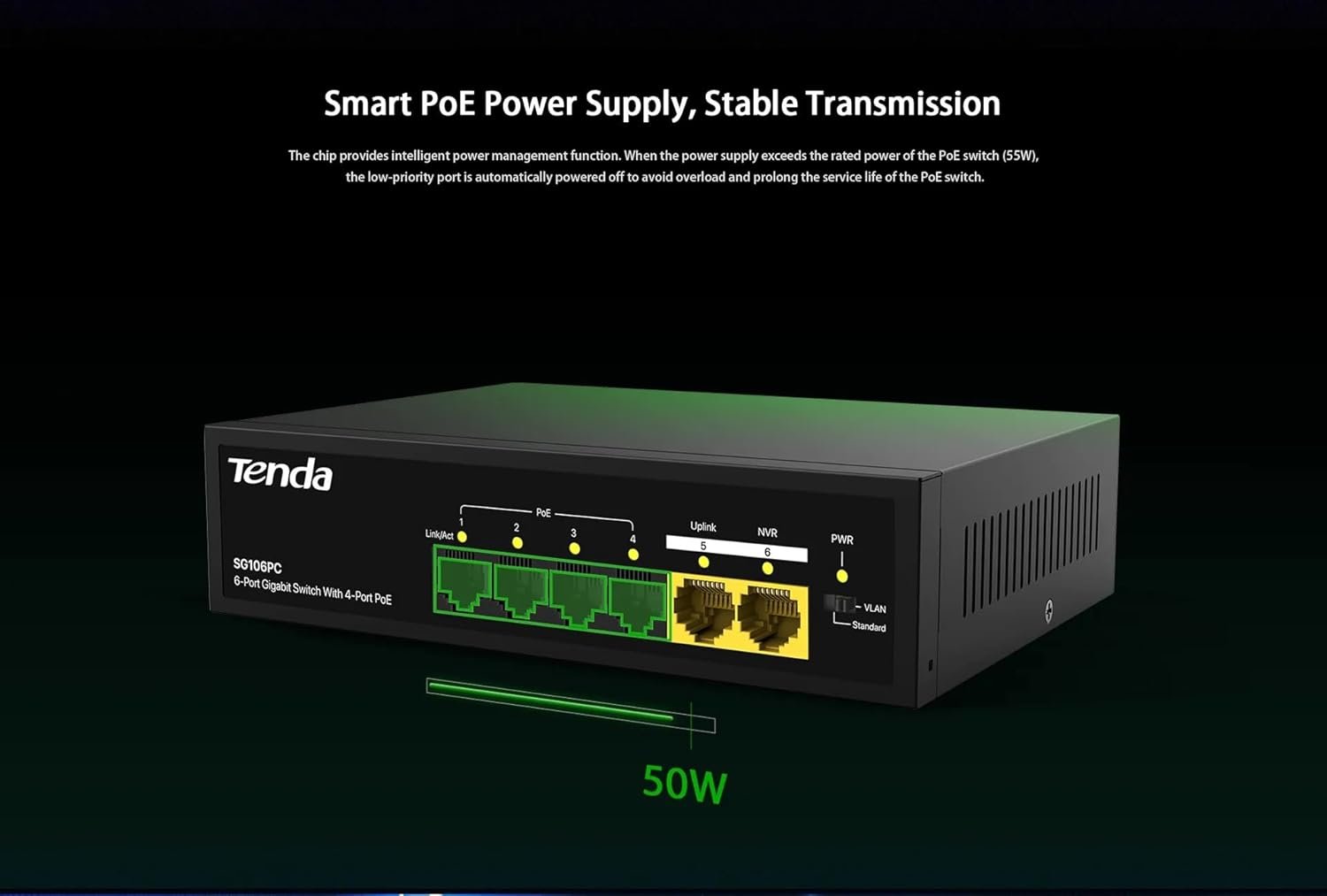

• PoE Power Management: Smart power allocation ensures that available power is distributed efficiently across connected devices, prioritizing critical equipment when approaching the total budget limit
• Surge Protection: Built-in 4KV surge protection safeguards your valuable equipment against power spikes, lightning-induced surges, and electrical transients

One-Key VLAN and QoS Priority

The SG106PC includes advanced features typically found only in managed switches, accessible via a simple DIP switch configuration on the front panel. These features provide enhanced network control without the complexity of managed switch configuration:

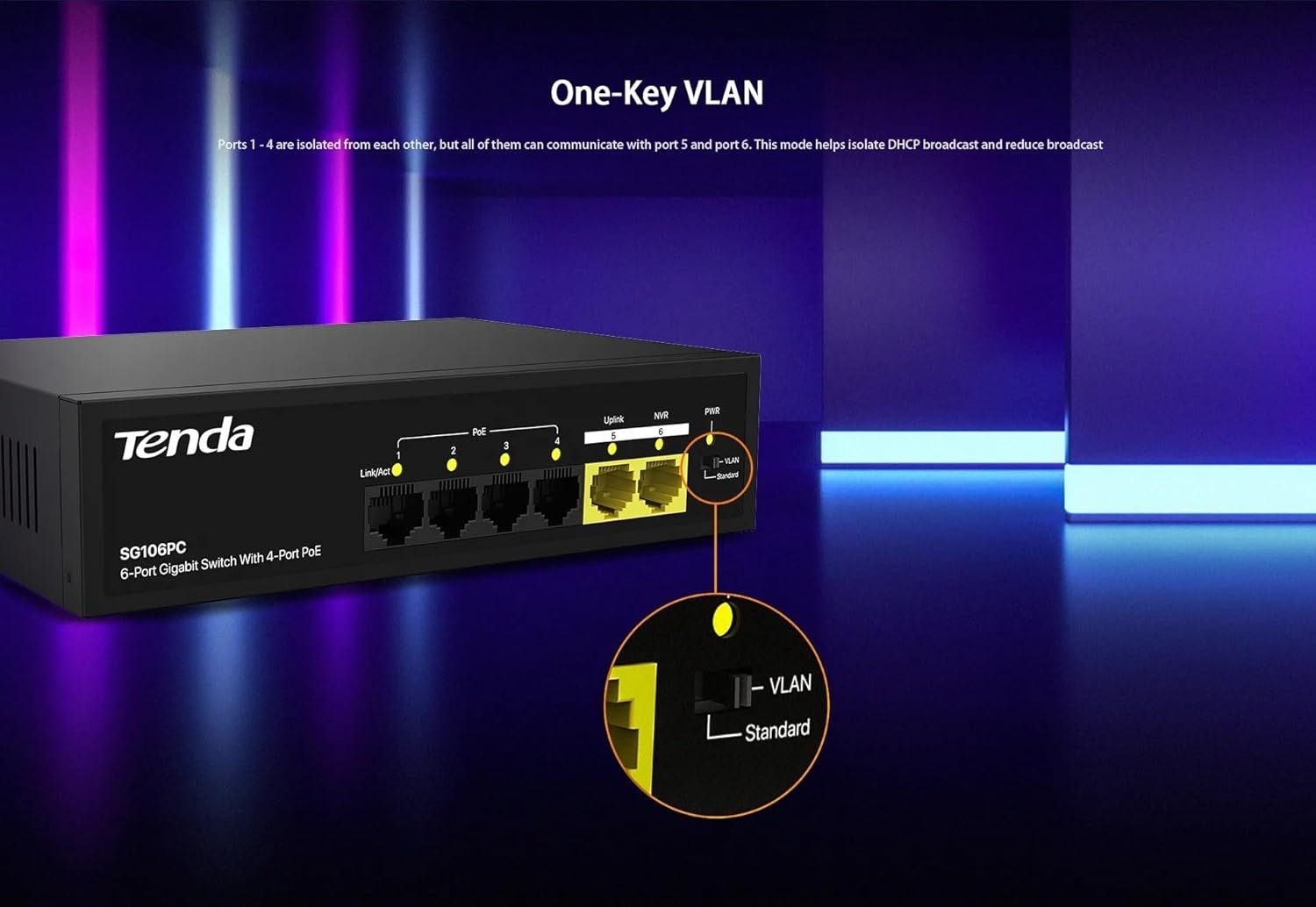

• One-Key VLAN (Port Isolation): When enabled, this feature isolates ports 1-4 from communicating with each other while maintaining connectivity to the uplink ports (5-6). This is particularly valuable for surveillance deployments because:
  • Prevents broadcast storms that can degrade video quality
  • Enhances network security by isolating camera traffic
  • Eliminates unnecessary traffic between cameras
  • Ensures all camera traffic is directed to the NVR connected to the uplink port
• QoS Priority: When enabled, this feature prioritizes video and voice traffic to ensure smooth, uninterrupted streaming and clear communication. Benefits include:
  • Prioritizes real-time applications like video surveillance and VoIP calls
  • Reduces latency and jitter for time-sensitive data
  • Ensures critical traffic receives bandwidth priority during network congestion
  • Essential for maintaining video quality in multi-camera installations

These features can be enabled or disabled independently with simple DIP switch toggles, providing deployment flexibility without requiring technical networking expertise.

Technical Specifications

Plug-and-Play Installation

The SG106PC is designed for effortless deployment with zero configuration required. Simply connect your powered devices to the PoE ports, link the switch to your network via the uplink ports, and the switch automatically handles the rest. Features include:

• Auto-Negotiation: Automatically detects and configures optimal speed and duplex settings for each connected device
• Auto MDI/MDIX: Eliminates the need for crossover cables by automatically detecting cable type and adjusting accordingly
• DIP Switch Configuration: Enable advanced features like VLAN and QoS with a simple toggle – no technical expertise required
• LED Status Indicators: Clear visual feedback for power, PoE status, and link/activity on each port simplifies troubleshooting

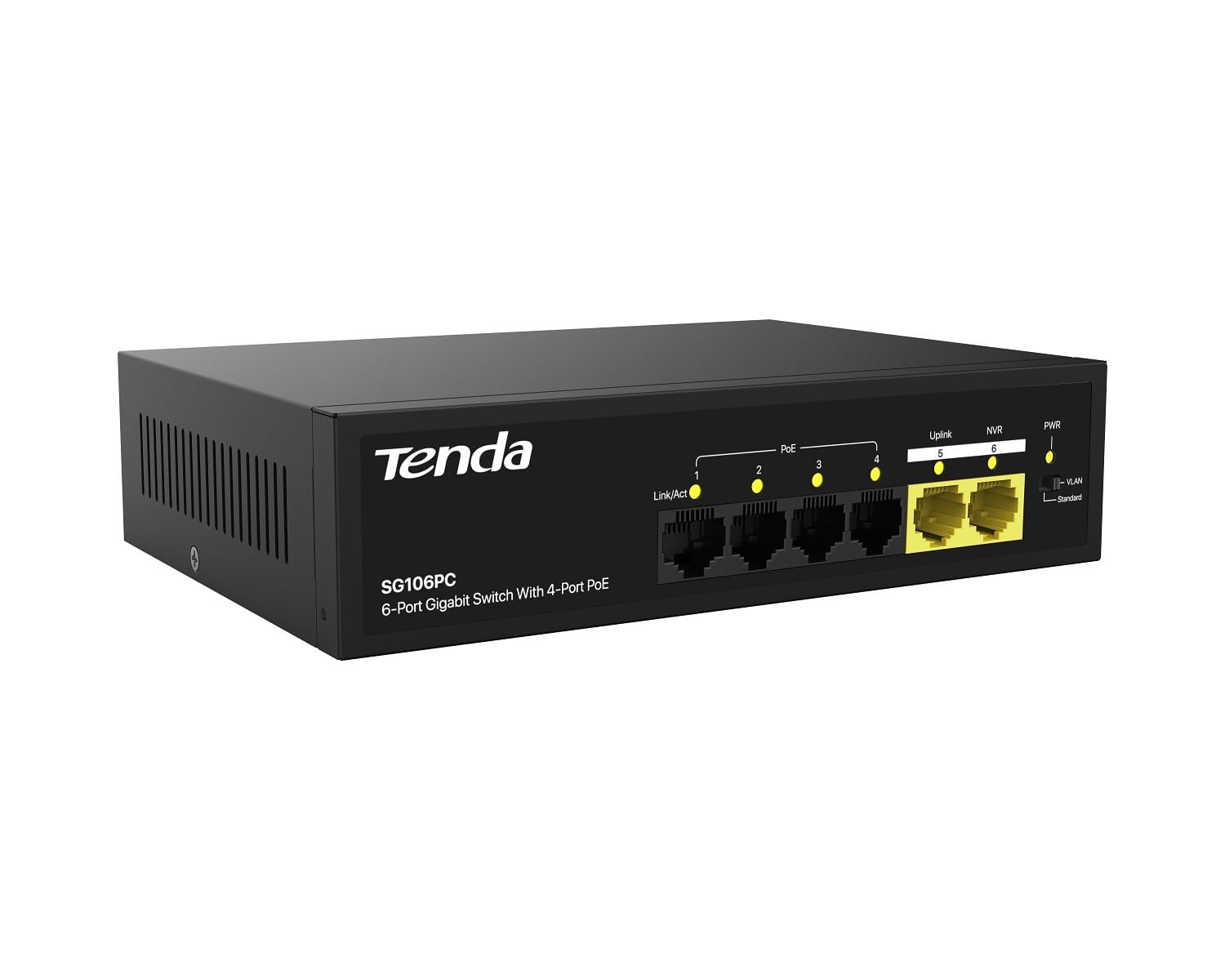

Compact and Durable Design

The SG106PC features a robust metal housing that provides excellent durability and heat dissipation for reliable 24/7 operation. Its compact dimensions (152 x 98 x 28 mm) allow for flexible placement options:

• Desktop Use: Small footprint fits easily on desks or shelves
• Wall Mountable: Keyhole slots enable secure wall mounting for permanent installations
• Fanless Design: Silent operation makes it perfect for noise-sensitive environments like offices, conference rooms, and recording studios
• Metal Enclosure: Provides better heat dissipation and physical protection compared to plastic switches

Package Contents

• Tenda SG106PC 6-Port Gigabit Lite PoE Switch
• External Power Adapter (48V DC, 1.25A)
• Power Cord
• Quick Installation Guide
• Warranty Card (3 Years Registration)
• Mounting Screws and Rubber Feet

Why Buy from Thencix?

Thencix is your reliable source for genuine networking equipment — every router, switch, and extender is specification-verified, securely packed, and fully supported.

• 100% authentic products with manufacturer-verified specifications
• Professional, damage-safe packaging
• Fast delivery across India
• GST invoice with every order
• Cash on Delivery available
• Guided networking setup support via WhatsApp
• In-house warranty assistance — no need to contact the brand directly
• Warranty appointments arranged for you

Support:
Email: support@thencix.com
WhatsApp: +91 98911 50949

Browse our complete catalog of Tenda switches, PoE injectors, and networking equipment to find the perfect solution for your connectivity needs.

Ideal Applications

• IP Surveillance Systems: Perfect for powering and connecting 4 PoE IP cameras to your NVR. One-key VLAN isolates camera traffic for enhanced security and performance
• Small Office Networks: Connect computers, printers, and servers with gigabit speeds while powering VoIP phones or wireless access points via PoE
• Convenience Stores and Retail: Reliable networking for POS systems, security cameras, and customer Wi-Fi access points
• Restaurants and Cafes: Power wireless access points for guest Wi-Fi while connecting kitchen display systems and payment terminals
• Home Offices: Expand your home network with PoE support for security cameras and mesh satellite nodes
• Educational Facilities: Power classroom access points and surveillance cameras with simplified single-cable installation
• Temporary Installations: Quick and easy deployment for events, exhibitions, and construction sites requiring temporary surveillance
