TP-Link TL-SG3452XP 48-Port PoE+ L2+ Managed Switch 4x10G SFP+

The TP-Link TL-SG3452XP is a JetStream L2+ fully managed PoE+ switch with 48 Gigabit RJ-45 PoE+ ports (802.3at/af, up to 30W per port, 500W total budget), 4 × 10G SFP+ uplink slots, 176 Gbps non-blocking switching capacity, 130.9 Mpps packet forwarding rate, 16K MAC address table, Omada SDN integration, static routing, enterprise-grade QoS, 802.1X RADIUS authentication, DHCP Snooping, ACL, IP-MAC-Port Binding, and standalone management via web GUI, CLI (console + Telnet + SSH), SNMP, and RMON. Designed for campus networks, large office floors, hotel networks, and enterprise deployments where a single switch powers and connects 48 devices — IP cameras, access points, VoIP phones — while 10G uplinks provide high-speed fibre connectivity to the core network. If you are looking for the TP-Link TL-SG3452XP price in India with a 3-year warranty and valid GST invoice, Thencix stocks genuine TP-Link enterprise products at our Nehru Place, Delhi store. Browse our full range of PoE switches at Thencix for all port counts.

TP-Link TL-SG3452XP — 48-Port PoE+ with 10G Uplinks

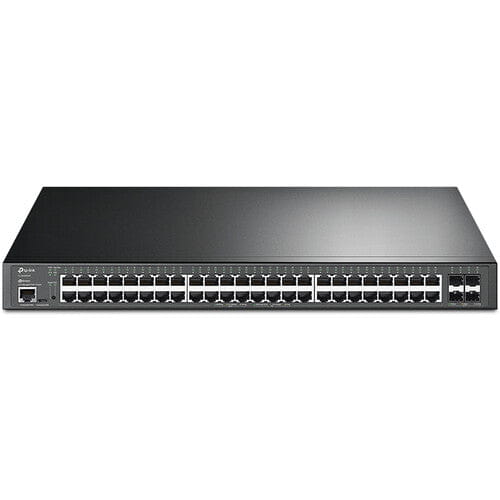

The TL-SG3452XP is the high-density PoE+ switch in TP-Link’s JetStream enterprise range — 48 ports in a single 1U rackmount chassis. A typical enterprise deployment connects IP cameras, ceiling access points, and VoIP phones on the 48 PoE+ ports, while the 4 × 10G SFP+ slots connect to the core switch, firewall, or NAS at 10 Gbps per uplink. The 500W total PoE budget powers up to 48 devices simultaneously — averaging 10W per device at full population, which covers most IP cameras (5–12W) and standard access points (12–18W).

The 176 Gbps switching fabric is non-blocking — all 48 Gigabit ports plus 4 × 10G uplinks can run at full wire speed simultaneously without any internal bandwidth bottleneck. This matters in high-density surveillance deployments where 48 IP cameras at 4MP H.265+ generate approximately 150–200 Mbps combined — a fraction of the available switching capacity, ensuring zero packet loss and smooth simultaneous recording and remote viewing.

Omada SDN Integration and Standalone Management

The TL-SG3452XP integrates with the Omada SDN (Software-Defined Networking) platform — the same ecosystem as TP-Link’s EAP access points, SafeStream routers, and OC300 hardware controller. In Omada mode, the switch is managed centrally from the Omada controller alongside all other Omada devices — a single dashboard for the entire network. This is particularly powerful in multi-site deployments where one IT team manages networks across multiple floors, buildings, or locations.

Standalone mode provides full management without a controller: web GUI for graphical configuration, CLI via console port (RJ-45 + Micro-USB) or Telnet/SSH for command-line administration, SNMP v1/v2c/v3 for integration with existing network management systems, RMON for traffic monitoring and analysis, and Dual Image for firmware backup — if a firmware update fails, the switch boots from the secondary image automatically. For TP-Link access points to deploy with this switch, browse our networking equipment at Thencix.

L2+ Features, Security, and QoS

L2+ features include static routing for inter-VLAN routing without a dedicated router, IGMP Snooping for efficient IP camera multicast traffic, 802.1Q VLAN with up to 4K VLAN IDs, STP/RSTP/MSTP for loop prevention, Link Aggregation (LACP) for bonding multiple uplinks, and port mirroring for network monitoring. Quality of Service (QoS) provides 8 priority queues per port with 802.1p CoS/DSCP classification, SP/WRR/SP+WRR scheduling, and port/flow-based bandwidth rate limiting — ensuring IP cameras and VoIP traffic are prioritised over general browsing and file transfers.

Security features include IP-MAC-Port Binding (IMPB) to prevent unauthorised devices from connecting, ACL (Access Control List) for granular traffic filtering, 802.1X RADIUS authentication for port-level network access control, DHCP Snooping to prevent rogue DHCP servers, Dynamic ARP Inspection to block ARP spoofing attacks, Storm Control for broadcast/multicast/unknown unicast traffic limiting, and DoS Defence against common network attacks. PoE Recovery automatically detects and restarts unresponsive PoE devices (such as a frozen IP camera) without manual intervention. For Prama and CP Plus cameras to connect to this switch, explore our IP camera range at Thencix.

Key Features — TP-Link TL-SG3452XP

• 48 × PoE+ Ports, 500W Budget: 802.3at/af compliant, up to 30W per port. Powers 48 IP cameras, APs, or VoIP phones. PoE Recovery for automatic device restart
• 4 × 10G SFP+ Uplinks: Non-blocking 176 Gbps switching capacity. 130.9 Mpps forwarding rate. Wire-speed performance at full 48-port density
• Omada SDN + Standalone Management: Centralized Omada controller management. Web GUI, CLI (console + Telnet + SSH), SNMP v1/v2c/v3, RMON, Dual Image
• L2+ Features — Static Routing, QoS, IGMP: 802.1Q VLAN (4K IDs), RSTP/MSTP, Link Aggregation (LACP), IGMP Snooping, 8-queue QoS with CoS/DSCP
• Enterprise Security — 802.1X, ACL, DHCP Snooping: IP-MAC-Port Binding, ARP Inspection, Storm Control, DoS Defence. 3-year TP-Link warranty

Technical Specifications — TP-Link TL-SG3452XP

Package Contents

• 1x TP-Link TL-SG3452XP 48-Port PoE+ Switch
• 1x Power cord
• 1x RJ-45 console cable
• 1x Rackmount kit (brackets and screws)
• 1x Quick Installation Guide
• Note: SFP+ transceivers not included. Order TP-Link 10G SFP+ modules (TL-SM5110-T or TL-SM5110-LR) separately for fibre or DAC uplink connections.
• Note: Omada controller not required for standalone operation. For centralised multi-device management, pair with the TP-Link OC300 hardware controller or install the free Omada Software Controller.

Ideal Use Cases — TP-Link TL-SG3452XP in India

Large CCTV Deployments — 48-Camera Floors: A single TL-SG3452XP powers and connects 48 IP cameras on one floor of a campus, hospital, mall, or government building. Each camera draws 5–12W PoE, well within the 500W budget. The 10G SFP+ uplinks carry all camera streams at wire speed to the NVR or storage server. PoE Recovery automatically restarts any camera that freezes without manual intervention. Paired with Prama STQC cameras for government-compliant CCTV systems — WhatsApp +91 9891150949 for project pricing.

Campus Wi-Fi Deployments with Omada APs: A floor or building with 48 ceiling access points (TP-Link EAP series) managed by an OC300 controller. Each AP draws 15–20W PoE, so 48 APs draw 720–960W total — in practice, deploy 25–35 APs per switch at typical load to stay within the 500W budget. The 10G SFP+ uplinks connect to the core network at line speed. Omada SDN manages all APs and this switch from a single dashboard.

Hotel and Hospitality Networks: A hotel floor with wall-plate access points (1 per room, 10–15W each), IP phones (5–7W each), and IP cameras (7–12W each) connected to a single TL-SG3452XP per floor. VLAN segmentation separates guest Wi-Fi, staff network, VoIP, and CCTV. 802.1X RADIUS controls staff network access. QoS prioritises VoIP traffic. The 10G SFP+ uplinks connect to the network core in the main switch room.

Why Buy the TP-Link TL-SG3452XP from Thencix

Thencix stocks genuine TP-Link enterprise products at our Nehru Place, Delhi store — available for immediate pickup or delivery.

• 100% genuine TP-Link product — authorised channel, sealed box
• 3-year TP-Link manufacturer warranty — Thencix handles everything: diagnostics, pickup, replacement, return. You don’t lift a finger
• Valid GST invoice with every order — claim full input tax credit
• Compatible SFP+ transceivers, DAC cables, and Omada controllers available to bundle
• Network design guidance — WhatsApp for PoE budget and VLAN design assistance
• Express delivery across Delhi, Noida, Gurgaon, and Faridabad
• Pan-India delivery available
• Cash on Delivery available
• Walk-in: 109B Osian Building, 12 Nehru Place, Delhi 110019
• WhatsApp: +91 9891150949
