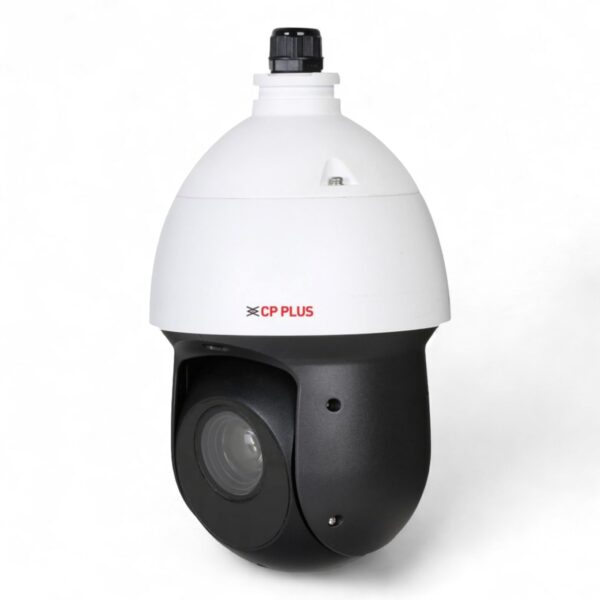

CP Plus CP-UNP-D2521L10-DAQ 2MP STQC 25x PTZ Camera 100m IR

The CP Plus CP-UNP-D2521L10-DAQ is a 2MP STQC-approved 25x optical zoom PTZ speed dome camera with 100-metre IR range, 120 dB WDR, Starlight low-light technology, 360° endless pan at 240°/s, and IP66 weatherproofing. Designed for government projects, defence installations, smart city deployments, and large commercial campuses where STQC certification is mandatory for procurement compliance. The 25x zoom (4.8–120mm) with 16x digital zoom delivers a combined 400x magnification, covering vast outdoor areas from a single mount point. If you are looking for the CP Plus CP-UNP-D2521L10-DAQ price in India with a valid GST invoice and STQC documentation, Thencix is an authorised CP Plus dealer in Nehru Place, Delhi. Browse our full range of PTZ cameras at Thencix for all resolutions and zoom ranges.

CP Plus CP-UNP-D2521L10-DAQ — STQC Approved 2MP 25x PTZ Overview

The CP-UNP-D2521L10-DAQ is the STQC-certified variant of CP Plus’s proven 2MP 25x PTZ platform — the same optical and mechanical design as the DP and DN models, but with STQC approval that qualifies it for central and state government tenders, public-sector undertaking procurements, defence campus surveillance, smart city projects, and any installation where STQC certification is a mandatory requirement in the RFP. The “DAQ” suffix denotes this STQC-compliant version. Thencix provides all STQC documentation for tender submissions — WhatsApp +91 9891150949.

The 1/2.8-inch 2MP progressive scan CMOS sensor with Starlight technology delivers colour footage at illumination as low as 0.005 lux — usable colour images in near-complete darkness before switching to IR. In full darkness, the 100-metre IR illumination range provides clear monochrome coverage of perimeters, parking lots, campus boundaries, and long corridors that would require 3–4 fixed cameras to cover. H.265+ compression reduces storage by up to 50 percent versus H.264, and the camera supports multiple simultaneous streams for live monitoring, recording, and remote viewing without bandwidth conflicts.

25x Optical Zoom with 240°/s Pan Speed

The 25x optical zoom with a focal range of 4.8mm to 120mm provides a horizontal field of view from 62.8° (wide) down to 2.6° (telephoto). At full zoom, the camera can identify a person’s face at distances well beyond 100 metres — critical for perimeter monitoring, gate surveillance, and incident investigation where the camera needs to zoom into a distant subject without physically repositioning. The 16x digital zoom on top of the optical zoom provides a combined 400x magnification for extreme close-up detail during live monitoring.

The PTZ mechanism delivers pan speed up to 240°/s and tilt speed up to 200°/s at preset positions — fast enough to track a vehicle moving across a campus or a person running along a perimeter wall. The 360° endless pan rotation means no dead zone — the camera can continuously rotate in one direction without hitting a mechanical stop. Tilt range from –15° to +90° with auto-flip at 180° ensures coverage directly below the mount point and beyond the horizon. With 300 programmable presets, 8 tours, 5 patterns, and 5 auto-scan modes, the camera can be programmed to patrol large areas autonomously — cycling through pre-defined positions and zoom levels on a schedule, covering an entire campus perimeter without operator intervention.

120 dB WDR, Starlight, and 100m IR

The 120 dB Wide Dynamic Range handles extreme contrast scenarios — a gate entrance where bright sunlight floods in from outside while the interior is dark, a building lobby with floor-to-ceiling windows, or a parking lot at dusk where headlights create harsh glare. WDR ensures both the bright and dark areas of the frame are visible simultaneously, preventing the washed-out or silhouetted images that standard cameras produce in these conditions.

Starlight technology enables the sensor to capture colour images at 0.005 lux in colour and 0.0005 lux in black-and-white — meaning the camera produces usable colour footage under moonlight or distant streetlight illumination, well before the IR LEDs need to activate. This preserves colour evidence (clothing, vehicle colour, signage) in low-light conditions where standard cameras would already be in monochrome IR mode. When ambient light drops to zero, the IR illuminators provide 100 metres of clear night vision — covering a full cricket pitch length of perimeter wall or parking lot from a single camera position. For NVR pairing, browse our CP Plus NVR collection at Thencix.

Smart Features and Network Integration

The camera includes 2 alarm inputs and 1 alarm output for integration with perimeter intrusion detection systems, door sensors, and external sirens. Region of Interest (ROI) encoding prioritises bandwidth allocation to user-defined areas of the frame — keeping the gate or entrance in high bitrate while reducing quality on less important background areas. Up to 24 privacy masks can be configured to block sensitive areas from recording — windows, neighbouring properties, or restricted zones.

Network connectivity is via RJ-45 Ethernet with PoE+ (802.3at) support for single-cable power and data — eliminating the need for separate power cabling to the camera mount point. The camera supports ONVIF for multi-brand NVR integration and is managed via CP Plus’s gCMOB (Android/iOS) and iCMOB mobile apps for remote live view, PTZ control, and playback, and KVMS Pro CMS software for enterprise multi-camera management. For PoE switches to power this camera, explore our PoE switch range at Thencix.

Key Features — CP Plus CP-UNP-D2521L10-DAQ

• 2MP STQC Approved PTZ Camera: 1920 × 1080 @25fps with STQC certification — compliant for government tenders, defence projects, smart city deployments, and public-sector procurements across India
• 25x Optical Zoom + 16x Digital (400x Total): 4.8–120mm focal range, F1.6–F4.4. Horizontal FOV from 62.8° wide to 2.6° telephoto — identify faces and number plates at 100+ metres
• 100m IR, Starlight, 120 dB WDR: Colour at 0.005 lux (Starlight), 100-metre IR in total darkness. 120 dB WDR handles gates, lobbies, and parking lot glare. 3D DNR, Defog, BLC, HLC
• 360° Endless Pan, 240°/s Speed: Tilt –15° to +90°. 300 presets, 8 tours, 5 patterns, 5 auto-scan. Autonomous perimeter patrol without operator intervention
• IP66, PoE+, Alarm I/O: Weatherproof for outdoor Indian deployments. PoE+ (802.3at) single-cable install. 2/1 alarm in/out for perimeter integration. ONVIF, gCMOB, KVMS Pro

Technical Specifications — CP Plus CP-UNP-D2521L10-DAQ

Package Contents

• 1x CP Plus CP-UNP-D2521L10-DAQ PTZ Speed Dome Camera
• 1x Mounting bracket and hardware kit
• 1x Quick Installation Guide
• Note: Wall/pole mount bracket may need to be purchased separately — verify included mount type against your installation requirement. WhatsApp +91 9891150949 to confirm.
• Note: Power supply, PoE switch, NVR, and Ethernet cable not included. This camera supports PoE+ (802.3at) — ensure your PoE switch or NVR provides sufficient per-port wattage. WhatsApp +91 9891150949 for complete system bundles.

Ideal Use Cases — CP Plus CP-UNP-D2521L10-DAQ in India

Government and Defence Installations: The STQC certification makes this camera compliant for central and state government tenders, defence campus surveillance, smart city projects, PSU procurements, and any installation where STQC is a mandatory RFP requirement. The 25x zoom with 100m IR covers perimeters, gate entries, and open areas at government buildings, military campuses, and critical infrastructure sites. Thencix provides STQC certification documentation for tender submissions — WhatsApp +91 9891150949 for documentation packages.

Smart City and Traffic Surveillance: The 240°/s pan speed and autonomous patrol with 300 presets make this camera suitable for intersection monitoring, highway surveillance, and public space monitoring in Indian smart city deployments. The Starlight sensor captures number plates in low-light conditions without dedicated external lighting. The 120 dB WDR handles the extreme contrast of headlights against dark roads. Multiple cameras can be managed centrally via KVMS Pro CMS software.

Industrial Campuses, Warehouses, and Large Commercial Sites: Factory perimeters, logistics yards, warehouse complexes, and commercial campuses across Delhi NCR, Noida, and Gurgaon need PTZ cameras that can cover 200+ metre perimeter stretches from a single mount point. The 25x zoom identifies individuals and vehicles at distances fixed cameras cannot reach. Auto-patrol modes cycle through preset positions covering all entry points, loading docks, and perimeter sections on a timed schedule. The 2/1 alarm I/O integrates with perimeter intrusion sensors for event-triggered zoom and tracking.

Housing Societies and Residential Complexes: Main gate PTZ providing 360° coverage of the gate area, approach road, and immediate surroundings. The 100m IR eliminates the need for external lighting at night. Residents and security guards control the camera remotely via gCMOB on their phones. GST invoice from Thencix for full input tax credit on society purchases.

Why Buy the CP Plus CP-UNP-D2521L10-DAQ from Thencix

Thencix is an authorised CP Plus dealer in Nehru Place, Delhi — every product is genuine, specification-verified, and backed by our in-house warranty support team.

• 100% genuine CP Plus product — authorised dealer, sealed box
• 1-year CP Plus India manufacturer warranty
• STQC certification documentation available for tender submissions
• Valid GST invoice with every order — claim full input tax credit
• System design guidance — WhatsApp for PTZ + NVR + PoE switch sizing
• Compatible NVRs, PoE+ switches, mounting brackets, and cables available
• Express delivery across Delhi, Noida, Gurgaon, and Faridabad
• Pan-India delivery available (insured shipping for high-value items)
• Cash on Delivery available
• Walk-in: 109B Osian Building, 12 Nehru Place, Delhi 110019
• WhatsApp: +91 9891150949
