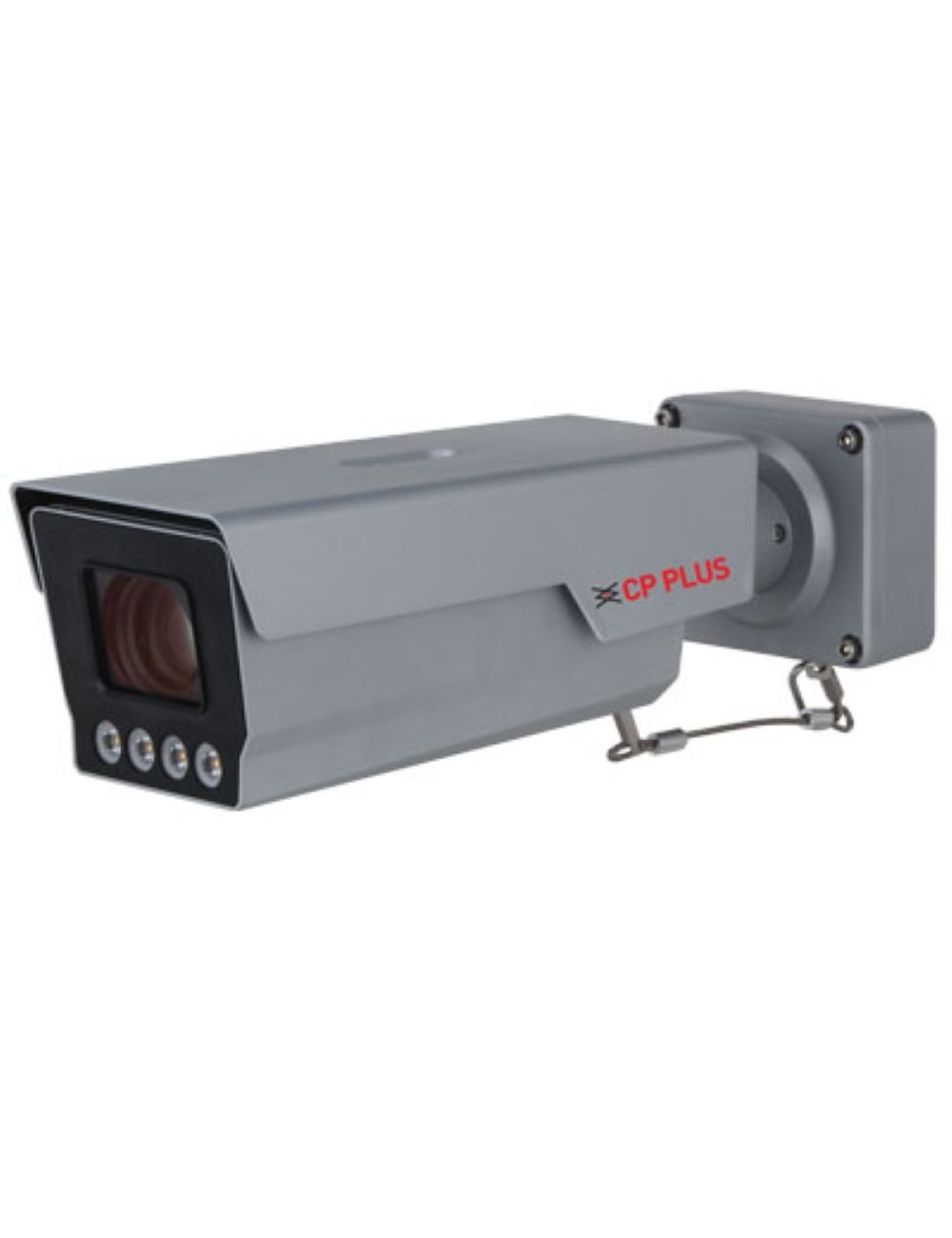

CP Plus CP-UNC-TT41L3-VMD-Q 4MP ANPR AI Enforcement Camera

The CP Plus CP-UNC-TT41L3-VMD-Q is a 4MP AI-powered ANPR (Automatic Number Plate Recognition) enforcement camera designed for traffic monitoring, parking management, toll plazas, and law enforcement applications across Delhi NCR. Built around a 1/1.8 inch 4MP starlight CMOS sensor with 0.0001 Lux minimum illumination, this camera captures clear license plates and vehicle details even in complete darkness. The motorized 10-50mm varifocal lens covers 1-2 lanes at distances from 3 to 50 meters, while 140dB WDR handles challenging backlight at toll gates and parking entries.

At Thencix, we supply genuine CP Plus products with GST invoice and 2-year brand warranty. For government tenders, parking operators, and corporate clients requiring input tax credit, we provide compliant billing with PAN verification support. Same-day dispatch available for Delhi, Noida, Gurgaon, and Faridabad with express delivery. Need help with ANPR integration, radar connection, or LPR algorithm tuning? WhatsApp us at +91 9891150949 for pre-sales technical support and site-specific recommendations.

CP Plus CP-UNC-TT41L3-VMD-Q ANPR Camera Overview

This CP Plus 4MP ANPR enforcement camera is purpose-built for license plate recognition and traffic violation detection. The 1/1.8 inch starlight sensor delivers 2688 x 1520 resolution at 25/30fps with exceptional low-light performance — critical for 24-hour toll plazas and parking gates on Delhi NCR highways. The motorized 10-50mm lens adjusts remotely for optimal plate capture distance, while 4 x 850nm IR LEDs provide adjustable illumination up to 30 meters for nighttime operation.

The embedded AI engine recognizes license plates from all Indian states and union territories, supports black-list and white-list management, and detects vehicle type, colour, and logo from a database of 50+ manufacturers including Maruti, Hyundai, Tata, Mahindra, Toyota, Honda, and luxury brands. Traffic violation capture includes speeding (0-180 km/h range), wrong-way driving, illegal lane change, and red-light violation when paired with compatible trigger systems.

Advanced ANPR and Vehicle Recognition

The CP-UNC-TT41L3-VMD-Q uses CP Plus proprietary deep learning algorithms for license plate recognition with high accuracy even on dirty, damaged, or non-standard plates common on Delhi roads. The system supports single-line and double-line plates, recognizes plate colour (yellow, white, black, green, red, blue), and stores plate images with metadata including timestamp, GPS coordinates, lane number, and vehicle speed.

Vehicle logo recognition covers 50+ brands from Acura to Volvo, while vehicle type classification identifies SUV, sedan, hatchback, light truck, heavy truck, bus, van, pickup, and MPV. Vehicle colour recognition works in daylight for white, black, red, blue, silver, grey, green, yellow, brown, and purple vehicles. This data enables automated parking fee calculation, access control, and traffic flow analytics without manual intervention.

Traffic Violation Detection and Evidence Capture

For law enforcement and traffic police applications, the camera captures speeding violations across 0-180 km/h with radar trigger integration via dual RS-485 and RS-232 ports. Wrong-way driving, illegal lane change, and red-light violations are detected through video analytics with composite evidence images combining overview, close-up plate, and violation timestamp. The camera supports overlay of channel title, time, GPS coordinates, lane number, plate number, plate colour, vehicle logo, vehicle type, vehicle colour, vehicle speed, and violation name directly on the video stream for court-admissible evidence.

Motorcycle violation capture includes passenger overload detection, helmet non-wear detection, and wrong-way riding — increasingly important for Delhi NCR traffic enforcement where two-wheelers represent the majority of violations. All evidence images include digital watermark verification to prevent tampering.

Key Features

• 4MP Starlight ANPR: 1/1.8 inch CMOS, 2688 x 1520 at 25/30fps, 0.0001 Lux minimum illumination for clear plate capture at night.
• Motorized 10-50mm Lens: Remote focus and zoom adjustment, 10-44 degrees horizontal FOV, covers 1-2 lanes at 3-50 meter distance.
• AI Vehicle Recognition: License plate, vehicle logo (50+ brands), vehicle type (9 categories), vehicle colour (10 colours), and speed detection.
• Traffic Violation Capture: Speeding, wrong-way driving, illegal lane change, red-light violation, motorcycle overload, no helmet.
• Robust Outdoor Design: IP67 weatherproof and IK10 vandal-resistant, -40C to +65C operating range, 3.9kg reinforced housing.

Technical Specifications

Package Contents

• CP Plus CP-UNC-TT41L3-VMD-Q 4MP ANPR AI Enforcement Camera x 1
• Power Adapter (12-36V DC) x 1
• Mounting Bracket and Screws x 1 Set
• Weatherproof Gland for Cable Entry x 1
• Software CD / Quick Start Guide x 1
• RS-485/RS-232 Connection Cables x 2

NOT INCLUDED: Radar trigger device (for speed enforcement), Micro SD card (for local backup), PoE injector (if not using PoE switch), network cables, mounting pole, junction box, and installation labor. We supply network cables and POE accessories, POE switches, and compatible NVRs separately for complete site readiness.

Ideal Use Cases for Indian Buyers

Toll Plazas and Highway Gates: The CP-UNC-TT41L3-VMD-Q captures license plates at speeds up to 180 km/h with radar trigger integration, making it ideal for NHAI toll plazas, expressway entry/exit gates, and state border checkpoints around Delhi NCR. The 10-50mm motorized lens adjusts remotely for optimal capture distance as traffic patterns change. The 140dB WDR handles headlight glare from oncoming vehicles at night, while IP67 and IK10 ratings withstand monsoon rains and vandalism attempts.

Parking Management Systems: For commercial parking lots, malls, hospitals, and office complexes in Delhi, Noida, Gurgaon, and Faridabad, this camera automates entry/exit with plate recognition. White-list management allows seamless access for monthly pass holders, while black-list alerts security for stolen or unauthorized vehicles. The vehicle type and colour recognition enable dynamic pricing for SUVs and trucks versus sedans and hatchbacks. Integration with boom barriers and payment systems creates fully automated parking without manual attendant intervention.

Traffic Police and Law Enforcement: The violation capture features support Delhi Traffic Police and NCR enforcement agencies in automated challan generation. Speeding detection with radar integration, wrong-way driving alerts, and red-light violation capture reduce manual patrolling needs. The composite evidence image combining overview, plate close-up, and violation metadata meets legal evidence standards for court proceedings. GPS tagging and timestamp verification prevent disputes over location and time of violation.

Residential Society Gates and RWA Security: High-end residential complexes in South Delhi, Gurgaon, and Noida use ANPR cameras for automated visitor management. The camera recognizes resident vehicles by plate and opens gates automatically, while logging visitor plates for security review. The compatible NVR stores plate logs with video evidence for 30-90 days, helping RWAs resolve security incidents and track unauthorized entries. The built-in audio channel supports intercom communication with security cabin.

Industrial and Logistics Parks: Warehouses, logistics hubs, and factory campuses around Faridabad and Ghaziabad use ANPR for truck entry/exit tracking, delivery vehicle scheduling, and unauthorized vehicle alerts. The vehicle type recognition distinguishes between trucks, vans, and private vehicles, while speed detection ensures safety compliance within campus limits. The -40C to +65C operating range handles Delhi summer heat and winter fog without performance degradation.

Why Buy from Thencix

• Genuine CP Plus products with 2-year brand warranty — verified from physical stock, not third-party claims
• GST invoice with HSN code for input tax credit — essential for registered Delhi NCR businesses and government tenders
• Cash on Delivery available across India — pay only after inspection
• Same-day dispatch for Delhi, Noida, Gurgaon, Faridabad with express courier
• Pre-sales technical support via WhatsApp — lens positioning, radar integration, ANPR algorithm tuning, and NVR pairing
• Post-installation support for plate recognition calibration, violation rule configuration, white-list/black-list management, and mobile app setup
• Bulk pricing for toll operators, parking management companies, municipal corporations, and security system integrators
• Easy returns within 10 days for DOA (Dead on Arrival) units

Questions about the CP Plus CP-UNC-TT41L3-VMD-Q ANPR camera? Need a complete traffic management system with radar, NVR, and barrier integration? WhatsApp us at +91 9891150949 or email [email protected]. Visit our store at 109B Osian Building, 12 Nehru Place, Delhi 110019 for live demo and stock verification.

CP Plus CP-UNC-TT41L3-VMD-Q ANPR Camera FAQ
