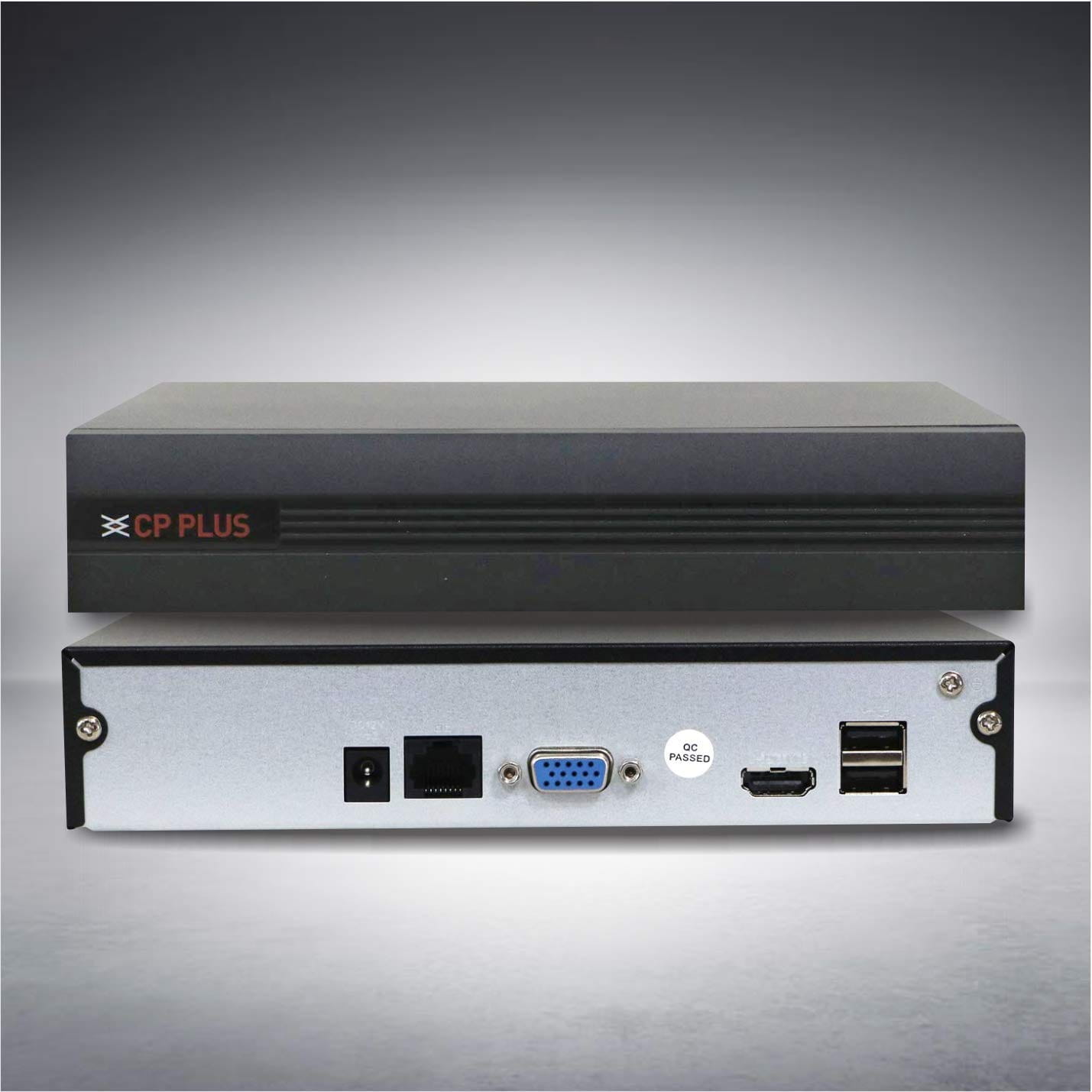

CP Plus CP-UNR-216F1-V3 16 Channel 8MP AI NVR

The CP Plus CP-UNR-216F1-V3 is a 16-channel AI network video recorder designed for businesses, warehouses, and residential complexes across India that need reliable, high-resolution surveillance without the complexity of enterprise-grade systems. Whether you are upgrading an existing CCTV setup in Nehru Place or building a new security infrastructure for a factory in Faridabad, this NVR delivers 8MP preview and playback capability along with AI-powered perimeter protection and SMD Plus smart motion detection. If you are looking for a complete range of network video recorders for your project, Thencix stocks this model with GST invoice and same-day dispatch for Delhi NCR.

CP Plus CP-UNR-216F1-V3 Overview and Main Value Proposition

The CP-UNR-216F1-V3 belongs to CP Plus’s Lite Series, a product line that brings 4K-ready decoding and H.265 compression technology to mid-budget security installations. This NVR supports up to 16 IP cameras simultaneously, making it ideal for medium-sized commercial properties, educational institutions, retail chains, and apartment societies in Delhi, Noida, Gurgaon, and Faridabad. The unit runs on an embedded Linux operating system with an industrial-grade processor, ensuring 24/7 stability without the bloat of Windows-based alternatives.

What sets this model apart is its Instastream encoding strategy. CP Plus’s proprietary Smart H.264+ and H.265 compression algorithms reduce bandwidth consumption by up to 70% compared to standard H.264, which matters significantly when you are streaming over Jio Fiber or Airtel Xstream broadband connections with limited upload speeds. For Indian buyers dealing with fluctuating internet bandwidth and monthly data caps, this efficiency translates directly into lower operational costs and smoother remote viewing through the gCMOB and iCMOB mobile apps.

AI Perimeter Protection and SMD Plus for Indian Security Needs

The CP-UNR-216F1-V3 supports AI by camera, meaning it can process perimeter protection and SMD Plus (Smart Motion Detection) alerts from compatible CP Plus IP cameras. This is not a gimmick feature — it is a practical advantage for Indian environments where false alarms from stray animals, moving tree branches during monsoon, and changing light conditions are common pain points.

SMD Plus uses advanced algorithms to distinguish between human and vehicle shapes versus irrelevant motion. When deployed at a construction site gate in Gurgaon or a warehouse loading dock in Noida, this means your security team receives alerts only when a person or vehicle actually enters a restricted zone. The system supports up to 4 channels of SMD Plus simultaneously, giving you targeted coverage for the most critical entry points without overwhelming your monitoring staff with nuisance notifications.

Perimeter protection adds another layer by allowing you to draw virtual lines and zones around sensitive areas. If someone crosses a boundary line after hours at a factory in Faridabad or a school campus in Delhi, the NVR triggers recording, snapshots, buzzer alerts, and email notifications instantly. The alarm linkage system also supports preset camera tours and log entries, giving you a complete audit trail for compliance and incident review.

Decoding Power and Multi-Brand Camera Compatibility

Decoding capability is where many budget NVRs fall short, but the CP-UNR-216F1-V3 handles 1-channel 12MP at 30 fps, 1-channel 8MP at 30 fps, 2-channel 5MP at 30 fps, 3-channel 4MP at 30 fps, or 6-channel 1080p at 30 fps. This adaptive decoding ensures smooth live viewing and playback regardless of your camera mix. If you have a combination of 4MP dome cameras at entry gates and 2MP bullet cameras along perimeter walls, the NVR allocates decoding resources intelligently.

Crucially, this NVR supports multi-brand network cameras via ONVIF Profile T, S, and G compatibility. You are not locked into CP Plus cameras exclusively. If your existing setup includes Hikvision or Dahua IP cameras, the CP-UNR-216F1-V3 will integrate with them through standard protocols including RTSP, HTTP, HTTPS, TCP/IP, IPv4, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, DDNS, and Alarm Server. For businesses in Nehru Place migrating from analog systems or mixing brands across multiple locations, this flexibility eliminates vendor lock-in and protects your existing investment.

Key Features

• 16-Channel IP Camera Input: Supports up to 16 network cameras simultaneously with independent configuration per channel.
• 12MP Decoding Capability: Adaptive decoding up to 1x 12MP@30fps, 1x 8MP@30fps, 2x 5MP@30fps, 3x 4MP@30fps, or 6x 1080p@30fps for flexible camera deployments.
• Instastream H.265/Smart H.264+ Compression: Reduces bandwidth and storage usage by up to 70% compared to standard H.264, critical for Indian broadband constraints.
• AI by Camera — Perimeter Protection and SMD Plus: Human and vehicle detection with secondary filtering to eliminate false alarms from weather, animals, and lighting changes.
• 1 SATA III HDD up to 16TB: Single hard drive bay supporting large-capacity surveillance-grade HDDs for extended recording retention.

Technical Specifications

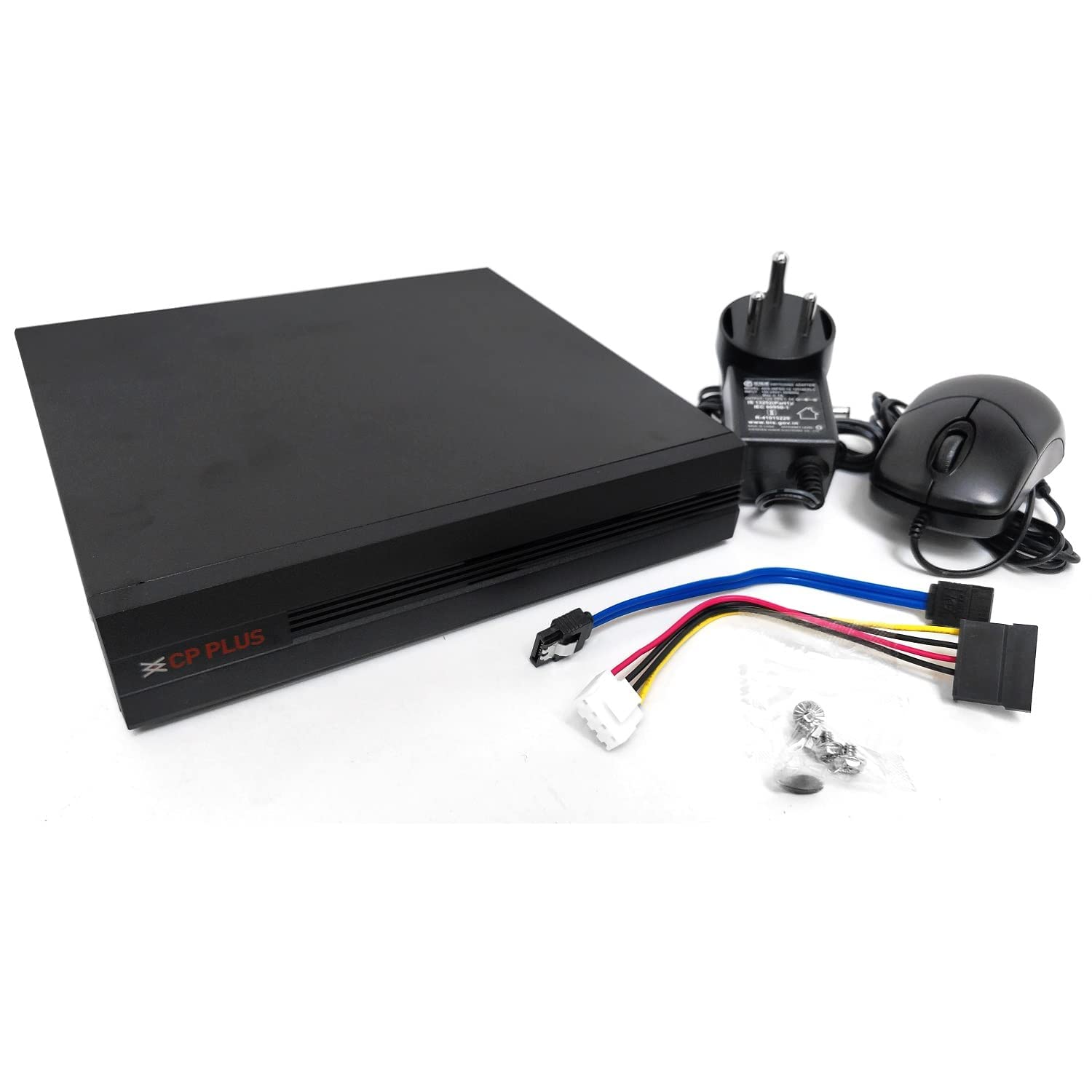

Package Contents

• CP Plus CP-UNR-216F1-V3 16-Channel AI Network Video Recorder — 1 unit
• Power Adapter (12V DC, 1.5A) — 1 unit
• Mouse — 1 unit
• SATA Data Cable — 1 unit
• Quick Start Guide — 1 copy
• Installation Screws — 1 set

NOT INCLUDED: Hard disk drive (HDD) — must be purchased separately. We recommend surveillance-grade HDDs (WD Purple or Seagate SkyHawk) for 24/7 operation. IP cameras are NOT included — sold separately. Browse our network camera range for compatible CP Plus and Hikvision models. HDMI cable, VGA cable, and Ethernet patch cables are NOT included. Network switch or router required for multi-camera setups — NOT included.

Ideal Use Cases

1. Retail Chain Stores and Showrooms in Delhi NCR

A clothing showroom in Lajpat Nagar or an electronics store in Nehru Place can deploy up to 16 cameras covering entry gates, billing counters, trial rooms, and stockrooms. The SMD Plus feature reduces false alerts from customer movement while flagging actual suspicious behavior after hours. With GST invoice from Thencix, retailers can claim input tax credit on their security investment.

2. Warehouse and Logistics Hubs in Noida and Gurgaon

Warehouses handling inventory for e-commerce or manufacturing need perimeter protection around loading docks and storage zones. The CP-UNR-216F1-V3’s 160 Mbps incoming bandwidth handles high-resolution camera feeds without bottlenecking, while the -10°C to +55°C operating range ensures reliability in non-air-conditioned godowns during Delhi summers. The alarm linkage system can trigger email alerts to facility managers when motion is detected outside business hours.

3. Educational Institutions and Coaching Centers

Schools, colleges, and coaching centers across Faridabad and Delhi require multi-camera coverage for classrooms, corridors, playgrounds, and entry gates. The 16-channel capacity covers large campuses, and the simultaneous HDMI/VGA outputs allow connection to both a main monitor in the security room and a secondary display in the principal’s office. The complete security camera range at Thencix includes dome, bullet, and PTZ options compatible with this NVR.

4. Residential Societies and Apartment Complexes

RWA-managed societies in Gurgaon and Noida use this NVR for gate monitoring, parking area surveillance, and common area coverage. The compact 260mm form factor fits into small security cabins, and the low 10W power consumption (without HDD) keeps electricity bills manageable. Residents can view live feeds on their phones via gCMOB or iCMOB apps, with InstaOn Cloud support for remote access even on Jio Fiber or BSNL FTTH connections.

Why Buy from Thencix

• Genuine CP Plus Product: Sourced directly from authorized distribution. Every unit carries original CP Plus warranty and serial number for verification.
• GST Invoice Provided: Full tax invoice with HSN code for input tax credit claim. Essential for businesses filing GST returns in Tally or similar accounting software.
• Same-Day Dispatch Delhi NCR: Orders confirmed before 3 PM ship same day via express courier to Delhi, Noida, Gurgaon, and Faridabad.
• Pan-India Delivery: Secure packaging and insured shipping to all states. Tracking number shared via WhatsApp within 2 hours of dispatch.
• Technical Support: Post-sale assistance for NVR configuration, camera addition, and mobile app setup. Our team has hands-on experience with CP Plus, Hikvision, and Dahua systems.
• Cash on Delivery Available: COD option for select locations. Prepaid orders processed faster with additional discount.
• WhatsApp Support: Quick queries, configuration help, and order tracking via WhatsApp at +91 9891150949. No IVR, no hold time — message and get a response.

FAQ — CP Plus CP-UNR-216F1-V3 Price India
