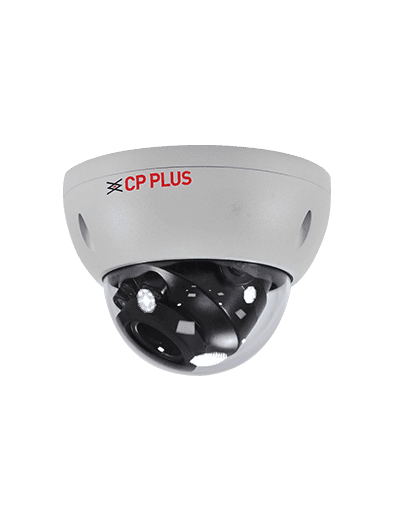

CP Plus CP-UNC-VC41ZL5C-VMD-Q 4MP IR Vandal Dome Camera 50m

The CP Plus CP-UNC-VC41ZL5C-VMD-Q is a 4MP network IR vandal dome camera built for professional installations that demand flexibility, durability, and intelligent video analytics. At the heart of this camera is a motorized varifocal lens spanning 2.7mm to 13.5mm — a range that allows installers and security teams to remotely adjust the field of view from wide-angle lobby coverage to a narrow long-range corridor shot without ever physically touching the camera or climbing a ladder. For dealers and integrators across Delhi NCR seeking a versatile IP network camera for professional surveillance installations, the CP-UNC-VC41ZL5C-VMD-Q is one of the strongest entries in the CP Plus lineup at the 4MP tier. It is BIS certified, manufactured by Aditya Infotech Limited (CP Plus) at their Noida facility, and carries CE, FCC, and RoHS compliance.

Overview of the CP Plus CP-UNC-VC41ZL5C-VMD-Q

The CP-UNC-VC41ZL5C-VMD-Q belongs to CP Plus’s professional network camera series targeting medium-to-large commercial and institutional installations. The model name breaks down as follows: VC denotes a vandal dome, 41 indicates 4MP resolution, ZL denotes a zoom (motorized varifocal) lens, 5C is the lens aperture classification, VMD indicates video motion detection with optional IVS intelligence, and Q represents the standard variant. The camera runs on a 1/2.7-inch PS CMOS image sensor with effective pixels of 2960 × 1668, producing a maximum resolution of 4MP (2688 × 1520) at up to 25/30fps in either PAL or NTSC mode. Starlight technology enables the sensor to produce colour images at extremely low light levels — down to 0.001 lux in colour mode and 0.0001 lux in black and white — before switching to infrared night vision when ambient light drops to zero lux.

Motorized Varifocal Lens — The Key Differentiator

The 2.7mm–13.5mm motorized varifocal lens is what separates the CP-UNC-VC41ZL5C-VMD-Q from fixed-lens alternatives in the same price bracket. At the widest setting (2.7mm), the horizontal field of view opens to 113° — suitable for open lobbies, retail floors, and parking entrances where wide situational awareness is needed. At the telephoto end (13.5mm), the horizontal angle narrows to 31°, enabling face-level detail capture at distances that a fixed 3.6mm lens simply cannot achieve. The DORI (Detection, Observation, Recognition, Identification) distance at the telephoto end reaches 210 metres for detection and 21 metres for identification — making this camera a strong choice for gates, long driveways, highways-facing installations, and large open areas in industrial estates and logistics parks across the National Capital Region.

Because the lens is motorized, focus and zoom are adjusted electronically via the NVR interface or the camera’s web GUI — no manual adjustment of a physical ring is required after installation. This dramatically reduces commissioning time on multi-camera projects and allows re-configuration without scaffolding or cherry pickers. The maximum aperture of F1.4 ensures excellent light intake at all focal lengths, contributing to the camera’s strong low-light performance in combination with the Starlight sensor.

Night Vision — 50 Metre IR Range with Starlight Sensitivity

The CP-UNC-VC41ZL5C-VMD-Q uses 2 IR LEDs to illuminate scenes up to 50 metres in complete darkness. IR control can be set to Auto or Manual — in Auto mode the camera adjusts IR intensity based on scene brightness, preventing IR overexposure on nearby objects (a common issue with fixed-intensity IR cameras in Indian installations where walls or pillars are close to the camera). Starlight technology means the camera captures usable colour footage in environments lit only by street lamps, signage, or ambient urban light, preserving colour clues — clothing, vehicle colour, signage — that black-and-white IR footage would lose. This is particularly valuable for parking areas, building perimeters, and stairwells in Delhi NCR where outdoor lighting varies significantly between markets and residential colonies.

IVS Analytics — Tripwire and Intrusion Detection

The CP-UNC-VC41ZL5C-VMD-Q includes optional IVS (Intelligent Video Surveillance) capabilities covering Tripwire and Intrusion detection. Both functions support classification of detected objects as human or vehicle, filtering out false alarms caused by animals, moving foliage, or lighting changes. Tripwire alerts when a target crosses a defined virtual line in a specified direction — ideal for perimeter monitoring of warehouses, rooftops, server rooms, and restricted zones. Intrusion detection triggers when a target enters or exits a defined zone — suitable for securing ATM vestibules, cash rooms, pharmaceutical storage, or any area requiring controlled access in commercial and institutional installations. The camera also offers motion detection across 4 configurable rectangular zones, privacy masking across 4 areas, and ROI (Region of Interest) encoding across 4 areas, allowing bandwidth prioritisation for the most critical parts of the frame.

The smart search capability works in conjunction with a CP Plus AI NVR to perform refined post-event searches, extract specific events, and merge them into event videos — reducing the time an operator needs to spend reviewing footage after an incident. For security teams managing large campuses, retail chains, or multi-site corporate offices across Delhi, Noida, and Gurugram, this AI-NVR pairing significantly reduces the investigative burden. The CP Plus 32-channel 4K NVR available at Thencix is a natural pairing for larger CP Plus camera installations.

Build Quality — IK10 Vandal Resistance and IP67 Weatherproofing

The metal casing of the CP-UNC-VC41ZL5C-VMD-Q is rated IK10 for impact resistance — the highest IK rating, meaning the dome can withstand impacts of up to 20 joules, equivalent to a 5kg mass dropped from 400mm. This makes the camera suitable for installations in areas with elevated vandalism risk: schools, public transportation nodes, stadiums, parking structures, and industrial environments. IP67 weatherproofing certifies complete protection against dust ingress and submersion in water up to 1 metre for 30 minutes, ensuring reliable performance through Delhi’s monsoon season and dusty dry months alike. The operating temperature range of -30°C to +60°C is exceptional — extending well below the coldest Delhi winters and comfortably above the hottest Indian summer afternoons.

Cybersecurity — AES-256 Encryption and TLS 1.2

CP Plus has implemented enterprise-grade cybersecurity features in the CP-UNC-VC41ZL5C-VMD-Q, including AES 256-bit encryption, configuration encryption, trusted execution, digest authentication, security logs, video encryption, IP and MAC filtering, HTTPS support, trusted boot, and trusted firmware upgrade. TLS Version 1.2 is supported for secure protocol communication. Account lockout and WSSE (Web Services Security Specification) are included to protect against brute-force access attempts — an important consideration for cameras exposed to the internet for remote monitoring over Jio Fiber or Airtel Xstream connections in Indian installations. OTA (Over-The-Air) firmware updates mean security patches can be applied across an entire installation without physical access to each camera.

Key Features

• 4MP Motorized Varifocal 2.7mm–13.5mm Lens: Remote zoom and focus adjustment from the NVR interface eliminates the need for physical lens access post-installation; wide 113° to narrow 31° field of view in a single camera covers lobby-to-perimeter use cases. DORI identification range reaches 21 metres at telephoto, detection at 210 metres.
• Starlight Technology + 50m IR, 0.001 Lux Sensitivity: Produces colour video in near-dark environments down to 0.001 lux; automatic IR cut filter (ICR) switches the camera to full monochrome IR night vision at 0 lux, with 50 metres of IR coverage from 2 smart IR LEDs that adjust intensity to avoid overexposure.
• IVS Analytics — Tripwire, Intrusion, Human/Vehicle Classification: Optional intelligent video analytics filter alarms to human and vehicle targets only, dramatically reducing false alerts; supports smart search with compatible CP Plus AI NVR for efficient post-event investigation.
• IK10 Vandal Proof + IP67 Weatherproof + Metal Casing: Highest impact-resistance rating; complete dust and water protection; operates reliably from -30°C to +60°C — built for Indian outdoor and semi-outdoor environments year-round.
• AES-256 Encryption + TLS 1.2 + OTA Updates: Enterprise cybersecurity stack including video encryption, IP/MAC filtering, trusted boot, and remote firmware upgrade; BIS, CE, FCC, and RoHS certified; supports micro SD up to 512GB for standalone edge recording without an NVR.

Technical Specifications

Package Contents

• CP Plus CP-UNC-VC41ZL5C-VMD-Q camera unit — 1
• Mounting hardware (screws, anchors) — as included
• Waterproof connector — 1
• Quick start guide — 1

Not included: Micro SD card (up to 512GB, sold separately), PoE switch or 12VDC power adapter, network cable, NVR. A CP Plus PoE switch is the cleanest single-cable power and data solution for this camera — ask Thencix for compatible switch options.

Ideal Use Cases for Indian Buyers

The motorized varifocal capability of the CP-UNC-VC41ZL5C-VMD-Q makes it most valuable in installations where the required field of view is not known at the time of procurement, or where site conditions demand remote adjustment after initial setup. Schools and colleges across Delhi NCR frequently specify this camera for corridors, main gates, and outdoor areas where a single camera must cover variable distances depending on the specific location. Warehouses and logistics facilities in Kundli, Bhiwandi, and Manesar prefer motorized domes for dock doors and loading bays where the zoom range can be adjusted seasonally based on operational requirements without camera replacement. Hospitals and healthcare facilities in South Delhi and Gurugram use this camera for medication storage areas, server rooms, and critical care corridors where long-range recognition capability is required without placing a bulky PTZ camera that would look intrusive in a patient environment.

For retail installations across high street markets — Connaught Place, Khan Market, Lajpat Nagar, Sarojini Nagar — the IK10 vandal dome body prevents opportunistic tampering while the IVS tripwire and intrusion features deliver genuinely actionable alerts rather than the constant false alarms generated by cheaper motion-detection-only cameras. At Thencix’s Nehru Place showroom, our team can walk you through the full CP Plus camera range and help you design an installation with the right mix of fixed, motorized, and PTZ cameras for your specific premises — whether it is a single shop or a multi-floor commercial complex.

Why Buy from Thencix

• Authorised dealer at 109B Osian Building, 12 Nehru Place, Delhi 110019 — inspect the physical unit before purchase
• GST invoice on every sale — eligible for business input tax credit
• Cash on Delivery for Delhi, Noida, Gurugram, Faridabad; pan-India shipping available
• Expert pre-sales support — lens selection, NVR compatibility, PoE switch sizing — on WhatsApp at +91 9891150949
• Post-purchase technical support including configuration assistance for IVS rules and remote access setup

Order or enquire now — WhatsApp +91 9891150949

CP Plus CP-UNC-VC41ZL5C-VMD-Q — Frequently Asked Questions
