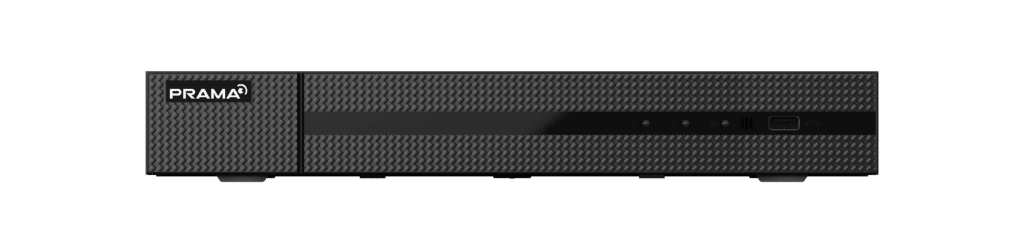

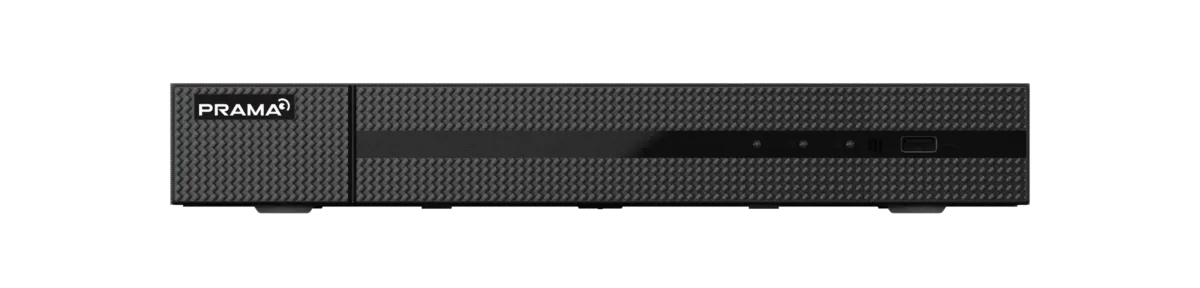

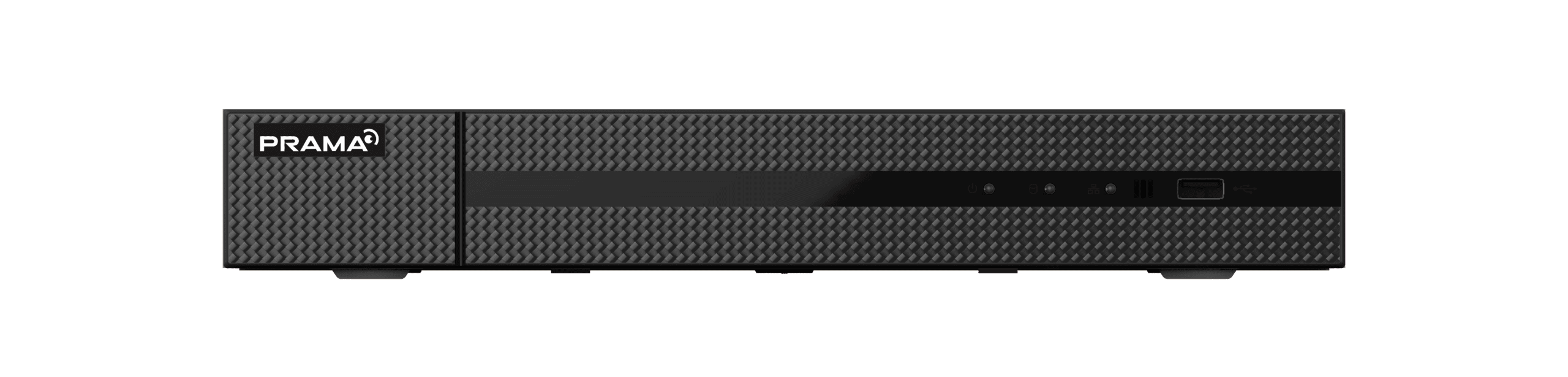

Prama PT-NR2A04-Q1 4CH 4K NVR 1 SATA 8MP

Small business owners and homeowners looking for Prama PT-NR2A04-Q1 price India options will find this 4-channel 4K network video recorder handles up to 8MP IP cameras through a single gigabit Ethernet port, with simultaneous HDMI and VGA outputs that drive a modern 4K TV and a legacy monitor from the same box. The 1U metal chassis measures just 315 × 240 × 48 mm and weighs under 1 kg without the hard drive — small enough to hide inside a shop counter drawer or sit on a bookshelf in a Noida apartment. If you need a compact 4-channel NVR with 4K output for your Delhi NCR retail store, home, or small office that works with Prama, Hikvision, and CP Plus cameras, the PT-NR2A04-Q1 from Prama India offers flexible recording with GST invoice from Thencix Nehru Place.

Most home and small shop NVR buyers in India start with the wrong assumption: that a basic recorder from the local market will do the job. Three months later they are staring at grainy 720p playback, struggling to add a new IP camera, and wondering why the remote app never connects. The PT-NR2A04-Q1 costs a bit more upfront but saves you from that replacement cycle. It records up to 8MP per camera, outputs true 4K to your TV, and plays nicely with third-party cameras through ONVIF — so you are not locked into one brand forever.

The 40 Mbps incoming bandwidth is the practical sweet spot for 4 cameras. Run four 4MP streams at roughly 6 Mbps each and you still have headroom for a fifth camera or bitrate spikes. Four 1080p cameras at 3 Mbps each barely tickle the pipeline. For a Karol Bagh boutique with two entrance cameras, one cash counter camera, and one storage room camera, this means smooth recording without the frame drops that plague underpowered recorders.

4K HDMI output at 3840 × 2160 is the feature that separates this from sub-Rs 3,000 generic recorders. Plug it into a 43-inch 4K TV at a Connaught Place cafe and the live feed actually uses those pixels — sharp enough to read a menu board reflection or identify a repeat visitor’s face from across the room. The VGA port runs simultaneously, so you can drive a secondary monitor in the back office without splitting the signal or buying an HDMI splitter. Both outputs stay live at their native resolutions.

H.265+ smart compression is where the math works in your favor. Standard H.264 eats roughly 4 to 6 Mbps per 1080p camera. H.265+ drops that to 2 to 3 Mbps without visible quality loss. On a Jio Fiber or Airtel Xstream 100 Mbps plan shared with POS systems and guest Wi-Fi, that bandwidth difference means the difference between smooth remote viewing and a choking network. For storage, the math is equally compelling — a 4 TB surveillance-grade drive retains approximately 35 to 45 days of 4-channel 1080p footage at H.265+, versus 20 to 25 days at H.264 — almost double the retention on the same drive.

The 1 SATA interface accepts drives up to 6 TB. While dual-bay NVRs offer more raw capacity, the single-bay design keeps the chassis compact, the price accessible, and the power draw low. For most 4-camera deployments — home, Kirana shop, small clinic, co-working cabin — 6 TB at H.265+ provides more retention than you will likely need. When longer archiving is required, the dual USB 2.0 ports accept external drives for manual backup, or configure network backup to an FTP server or NAS for automated off-site redundancy.

Third-Party Camera Compatibility and ONVIF Integration

The PT-NR2A04-Q1 is not locked to Prama cameras. It connects to third-party IP cameras from Hikvision, CP Plus, Dahua, and any ONVIF-compliant brand through the gigabit RJ-45 port. This matters for Indian buyers who inherit mixed-camera environments or want the freedom to shop for cameras by feature rather than brand loyalty.

ONVIF Profile S ensures basic video streaming works out of the box. For advanced features like motion detection, line crossing, and area entry alerts, the NVR supports VCA alarm recording from smart IP cameras that push metadata alongside the video stream. A Prama PT-NC123D3-WNM(D2) turret camera with human detection can trigger the NVR to start recording, send an email alert, and flag the event timeline — all without a separate analytics server.

The web interface is straightforward. Add cameras by IP address, ONVIF discovery, or Prama’s own protocol. The channel list shows resolution, frame rate, and connection status at a glance. Drag-and-drop camera assignment to the live view grid takes seconds. For non-technical shop owners, the Prama VMS mobile app offers a simpler dashboard — tap a camera thumbnail for fullscreen, swipe for playback timeline, and pinch to zoom on 4K streams.

Remote Viewing and Mobile Access for Home and Small Business Users

Remote access runs through the free Prama VMS app for iOS and Android, plus web browser access via HTTPS. The P2P cloud setup avoids port forwarding headaches on Jio Fiber, Airtel Xstream, and BSNL FTTH routers — scan the QR code on the NVR’s network menu, enter the device ID in the app, and the encrypted tunnel establishes automatically. For users who prefer direct control, DDNS configuration and manual port forwarding are available through the network settings.

The multi-user account system supports different permission levels. Create view-only logins for family members or shop staff who should not change settings, and admin credentials for the owner. Password complexity rules and IP address filtering add basic hardening against unauthorized access. For home users in Gurgaon and Noida who share the system with domestic help or tenants, this separation matters.

Two-way audio through the RCA input and output lets you connect an external microphone and speaker for gate intercom applications. A homeowner in Faridabad can verify a delivery person’s identity before opening the gate, with the conversation recorded alongside video for review. The audio output drives a powered speaker for announcements or alerts during security events.

Compact Design and Power Efficiency for Indian Spaces

The 315 × 240 × 48 mm chassis is smaller than most laptop bags. It slides into standard CCTV rack cabinets, sits on a shelf behind a shop counter, or hides inside a TV console cabinet where the router lives. The metal construction dissipates heat without a noisy fan, keeping the unit silent in bedrooms and small offices where fan hum is distracting.

Power consumption stays under 10 watts without the hard drive and roughly 15 to 18 watts with a 4 TB drive spinning. At Delhi NCR electricity rates, that translates to roughly Rs 60 to 100 per month in power costs for 24/7 operation — less than the cost of two cups of chai. The 12 VDC power adapter is included, and the unit runs comfortably on the voltage fluctuations common in Indian residential grids without needing a separate voltage stabilizer.

The -10°C to +55°C operating range covers air-conditioned server rooms in Nehru Place as well as non-AC security cabins in Ghaziabad summers. The 10% to 90% humidity tolerance handles monsoon seasons without condensation damage. For a recorder that costs less than a mid-range smartphone, the build quality punches above its weight.

Key Features

• 4-channel IP video input with 40 Mbps incoming bandwidth, supporting up to 8MP resolution per camera and 4-channel synchronous playback for incident review
• 4K HDMI and simultaneous VGA output with 3840 × 2160 at 30 Hz on HDMI and up to 1920 × 1080 at 60 Hz on VGA, both active from the same recorder
• H.265+/H.265 smart compression reducing bandwidth and storage consumption by 40 to 50 percent compared to H.264, extending retention on the same drive capacity
• Third-party ONVIF camera compatibility with Prama, Hikvision, CP Plus, Dahua, and other brands, plus VCA alarm recording from smart IP cameras
• Compact 1U metal chassis with 6 TB SATA support, dual USB 2.0 backup, P2P cloud remote viewing, two-way audio RCA, and under-1-kg weight

Technical Specifications

Package Contents

• Prama PT-NR2A04-Q1 NVR unit
• 12 VDC 2A power adapter
• Wired USB mouse
• SATA data cable
• Installation guide and quick start manual

NOT INCLUDED: Hard disk drive (SATA up to 6 TB), HDMI cable, VGA cable, Ethernet cable (Cat 6), IP cameras, PoE switch, monitor. Cross-sell available: surveillance-grade HDD (2 TB/4 TB/6 TB), high-speed HDMI 2.0 cable, Prama IP cameras, gigabit PoE switch, Cat 6 patch cables.

Who Actually Buys This and Why

1. Kirana Store and Small Retail Operations in Karol Bagh and Chandni Chowk
Mount the NVR behind the billing counter and run 2 to 4 IP cameras across the shop floor, entrance, and storage room. The 4K HDMI output plugs into an affordable 32-inch or 43-inch TV for live monitoring — no separate monitor needed. H.265+ compression keeps a 2 TB drive recording for 20 to 25 days, enough for most operational reviews. Motion detection after 9 PM triggers email alerts with snapshots to the owner’s phone via gCMOB. The compact chassis hides inside the cash drawer cabinet. At roughly Rs 3,000 to 5,000, the NVR costs less than two months of manned security services. Cash on Delivery across Delhi NCR means you pay only after testing the unit.

2. Home and Apartment Monitoring in Noida and Ghaziabad
Install in the living room or bedroom closet with cameras at the main door, balcony, parking area, and lobby. The 4-channel capacity covers a standard 3BHK apartment or independent floor without waste. The P2P cloud setup works over Jio Fiber or Airtel Xstream broadband, letting you check live feeds from work or while traveling without static IP configuration. The simultaneous VGA output drives a small monitor in the kitchen or study for local viewing. The under-1-kg weight and 12 VDC power mean the unit runs safely on home inverter backup during outages. The two-way audio RCA connects to a speaker at the main gate for visitor verification before opening. For families with members at home during work hours, the motion alerts provide awareness without intrusive monitoring.

3. Small Office and Co-Working Cabin Operations in Nehru Place and Connaught Place
Deploy in the admin cabin with cameras covering reception, the main work area, and the server/storage corner. The 40 Mbps bandwidth handles 4 cameras at 4MP without frame drops, even during peak hours when the broadband is shared with desktops and VoIP phones. The 4K HDMI output drives a large monitor for visible deterrence in the reception area. ONVIF compatibility means you can mix Prama cameras with existing Hikvision or CP Plus units from previous installations. The multi-user account system creates separate logins for co-working tenants, facility managers, and operations staff. USB backup exports footage to a pen drive within minutes for administrative review. For startups and small businesses in Delhi NCR, the total cost of NVR plus 4 cameras often comes under Rs 25,000 — a fraction of managed security services.

4. Small Clinic and Wellness Facility Monitoring in South Delhi and Dwarka
Position in the reception or doctor’s cabin with cameras covering the waiting area, consultation room entrance, pharmacy counter, and main gate. The compact size fits into medical office furniture without dominating the space. The silent operation — near-silent at under 10 watts — keeps the environment calm. Privacy is addressed by motion-activated recording in sensitive areas, with continuous recording only in public spaces. The 4K output lets reception staff verify arrivals from a distance. For clinics handling cash payments, the cash desk camera provides audit footage for billing verification. Pair with a gigabit PoE switch to power cameras and reduce cable clutter in small spaces where every outlet matters.

Why Buy from Thencix

• Genuine Prama India stock with valid serial number and regional warranty
• GST invoice for every order — claim input tax credit on security infrastructure
• Cash on Delivery across Delhi, Noida, Gurgaon, Faridabad
• Express same-day dispatch for Delhi NCR; pan-India shipping
• Pre-sales camera compatibility check — we verify your existing cameras work with this NVR
• Post-sales P2P cloud setup, motion zone configuration, and mobile app pairing

Need a bulk quote for 3+ NVRs across multiple properties or a small retail chain? WhatsApp us on +91 9891150949 for project pricing and GST documentation. Visit our Nehru Place store for live demo of 4K output and mobile app remote viewing.
