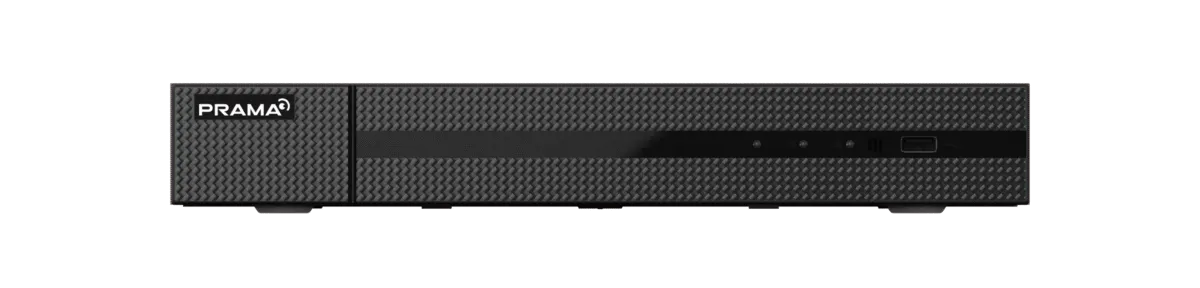

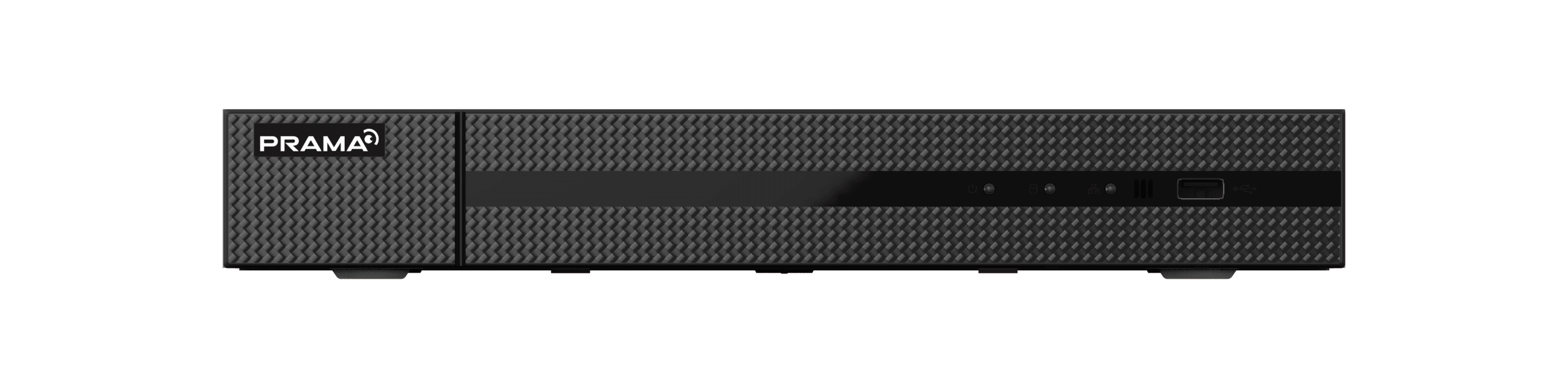

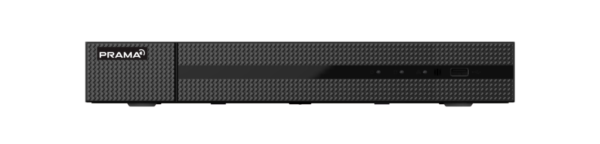

Prama PT-NR2A16-Q1 16CH 4K NVR 1 SATA 8MP

Facility managers and security contractors looking for Prama PT-NR2A16-Q1 price India options will find this 16-channel 4K network video recorder handles up to 8MP IP cameras through a single gigabit Ethernet port, with independent 4K HDMI and 1080p VGA outputs that drive a command center monitor and a secondary display simultaneously. The 160 Mbps incoming bandwidth is double the 8-channel model, giving headroom for sixteen 4MP streams or eight 8MP cameras without choking. If you need a 16-channel NVR with 4K output for your Delhi NCR warehouse, school campus, or multi-branch retail chain that works with Prama, Hikvision, and CP Plus cameras, the PT-NR2A16-Q1 from Prama India offers scalable recording with GST invoice from Thencix Nehru Place.

Most 16-channel NVRs in the Indian market fall into two traps. The cheap ones advertise 16 channels but ship with 80 Mbps bandwidth — barely enough for eight 1080p cameras, let alone sixteen 4MP streams. The expensive ones pack features like RAID and hot-swappable drives that small and mid-size businesses never use. The PT-NR2A16-Q1 sits in the practical middle: 160 Mbps real bandwidth, 8MP recording per channel, 16-channel synchronous playback, and a price that does not require a CFO sign-off.

The 4K HDMI output at 3840 × 2160 is not marketing fluff — it is the difference between identifying a suspect and guessing. On a 55-inch 4K monitor in a Gurgaon warehouse command center, a 4MP camera feed at native resolution shows license plate characters at 15 meters and facial features at 8 meters. The independent VGA port drives a secondary 1080p display in the security cabin or manager’s office without splitting the signal. Both outputs stay live at their native resolutions, so the guard and the supervisor see the same cameras at clarity levels that match their screens.

H.265+ compression is where the math gets interesting for multi-camera deployments. Standard H.264 eats roughly 6 Mbps per 4MP camera. Sixteen cameras choke a 100 Mbps connection and fill a 6 TB drive in 18 days. H.265+ drops that to 3 Mbps per camera without visible quality loss — same sixteen cameras now run comfortably on the same bandwidth and retain footage for 35 to 40 days. For a Faridabad factory paying Rs 800 per month for a 150 Mbps leased line, that bandwidth saving alone justifies the NVR upgrade.

The 1 SATA interface accepts drives up to 6 TB. While dual-bay NVRs offer more raw capacity, the single-bay design keeps the chassis compact and the price accessible. For most 16-camera deployments — mid-size warehouses, school campuses, hospital wings — 6 TB at H.265+ provides 25 to 30 days of continuous retention. When longer archiving is needed, the dual USB 2.0 ports accept external drives for manual backup, or configure network backup to an FTP server or NAS for automated off-site redundancy. The iSCSI protocol support lets you expand to network storage arrays without adding local drives.

Who Actually Buys This and Why

1. Mid-Size Warehouse and Logistics Hub Command Centers in Gurgaon and Noida
Install in the security room with sixteen cameras covering loading docks, inventory aisles, perimeter fences, and parking areas. The 160 Mbps bandwidth handles eight 4MP cameras at the loading bays and eight 2MP cameras along the perimeter without frame drops. The 16-channel synchronous playback lets investigators review an incident across all angles simultaneously — no switching timelines or losing context. The 4K HDMI output drives a video wall so multiple guards can watch live feeds without squinting. H.265+ compression keeps storage costs manageable when insurance mandates 30-day retention. The independent VGA output feeds a secondary monitor in the operations manager’s cabin. For warehouses running on Jio Fiber or Airtel Xstream business plans, the bandwidth efficiency matters — sixteen H.265+ streams consume less pipe than eight H.264 streams.

2. School and College Campus Security Across Delhi NCR
Deploy in the principal’s office or dedicated security room with cameras at main gates, corridors, cafeterias, libraries, labs, and parking areas. The 16-channel capacity covers a mid-size school campus without needing a second recorder. The 8MP recording future-proofs the system — start with 2MP cameras today and upgrade to 4K cameras later without replacing the NVR. The 128-user account system creates view-only logins for class teachers, operator accounts for administrators, and admin credentials for the principal. Schedule recording captures continuous footage during school hours and switches to motion-only after 5 PM, saving storage. The 16-channel synchronous playback lets administrators review bullying incidents or theft reports across multiple camera angles simultaneously. USB backup exports incident footage to a pen drive within minutes for PTA or police review. Explore more network cameras for multi-building campus coverage.

3. Multi-Branch Retail Chain and Showroom Networks in Delhi NCR
Install one NVR per branch across Karol Bagh, Lajpat Nagar, Rajouri Garden, and Dwarka locations. The 16-channel capacity covers large showrooms with multiple floors, trial rooms, cash counters, and storage areas. The 4K HDMI output plugs into a 55-inch TV in the manager’s cabin for live monitoring. ONVIF compatibility means you can standardize on Prama cameras at new branches while keeping existing Hikvision or CP Plus units at older locations. The P2P cloud setup lets regional managers monitor all branches from a single phone app without VPN configuration. Network backup to a central FTP server at head office provides off-site redundancy for compliance and insurance. The compact 1U chassis slides into standard CCTV racks behind the billing counter. For retail chains adding two to three branches per year, the scalable 16-channel design means you rarely outgrow the recorder before the cameras.

4. Hospital and Healthcare Facility Surveillance in Faridabad and Ghaziabad
Position in the admin office with cameras covering main entrances, reception desks, pharmacy counters, patient wards, parking areas, and emergency exits. The 16-channel capacity spans a 50 to 100 bed facility without waste. The 4K output lets reception staff verify visitor identity from a distance. Motion-activated recording in sensitive areas balances patient privacy with security needs — continuous recording only in public spaces. The two-way audio RCA connects to speakers at main entrances for visitor management and emergency announcements. The -10°C to +55°C rating handles non-AC server rooms and humid monsoon conditions. For hospitals handling cash payments at pharmacy counters, the cash desk camera provides audit footage for billing disputes. Pair with a gigabit PoE switch to power cameras and simplify cabling across multiple floors.

Third-Party Camera Compatibility and ONVIF Integration

The PT-NR2A16-Q1 is not locked to Prama cameras. It connects to third-party IP cameras from Hikvision, CP Plus, Dahua, and any ONVIF-compliant brand through the gigabit RJ-45 port. This matters for Indian buyers who inherit mixed-camera environments or want the freedom to shop for cameras by feature rather than brand loyalty.

ONVIF Profile S ensures basic video streaming works out of the box. For advanced features like motion detection, line crossing, and intrusion alerts, the NVR supports VCA alarm recording from smart IP cameras that push metadata alongside the video stream. A Prama PT-NC123D3-WNM(D2) turret camera with human detection can trigger the NVR to start recording, send an email alert, and flag the event timeline — all without a separate analytics server.

The web interface is straightforward. Add cameras by IP address, ONVIF discovery, or Prama’s own protocol. The channel list shows resolution, frame rate, and connection status at a glance. Drag-and-drop camera assignment to the live view grid takes seconds. For non-technical facility managers, the Prama VMS mobile app offers a simpler dashboard — tap a camera thumbnail for fullscreen, swipe for playback timeline, and pinch to zoom on 4K streams.

Remote Viewing and Multi-User Access for Distributed Teams

Remote access runs through the free Prama VMS app for iOS and Android, plus web browser access via HTTPS. The P2P cloud setup avoids port forwarding headaches on Jio Fiber, Airtel Xstream, and BSNL FTTH routers — scan the QR code on the NVR’s network menu, enter the device ID in the app, and the encrypted tunnel establishes automatically. For users who prefer direct control, DDNS configuration and manual port forwarding are available through the network settings.

The 128-user account system supports three permission levels — admin, operator, and user. Create view-only logins for security guards who should not change settings, operator accounts for branch managers who need playback access, and admin credentials for the facility head. Password complexity rules and IP address filtering add basic hardening against unauthorized access. For multi-branch retail chains and hospital groups, this separation is essential — the Delhi regional manager sees all NCR branches, while the Karol Bagh store manager sees only his own cameras.

Two-way audio through the RCA input and output lets you connect an external microphone and speaker for gate intercom applications. A warehouse supervisor in Noida can verify a delivery driver’s identity before opening the gate, with the conversation recorded alongside video for audit trails. The audio output drives a powered speaker for announcements or alarm tones during intrusion events.

Key Features

• 16-channel IP video input with 160 Mbps incoming bandwidth, supporting up to 8MP resolution per camera and 16-channel synchronous playback for multi-angle incident review
• 4K HDMI and independent VGA output with 3840 × 2160 at 30 Hz on HDMI and 1920 × 1080 at 60 Hz on VGA, both active simultaneously for command center and cabin displays
• H.265+/H.265 smart compression reducing bandwidth and storage consumption by 40 to 50 percent compared to H.264, extending retention and lowering network costs
• Third-party ONVIF camera compatibility with Prama, Hikvision, CP Plus, Dahua, and other brands, plus VCA alarm recording from smart IP cameras
• Compact 1U metal chassis with 6 TB SATA support, dual USB 2.0 backup, iSCSI network storage expansion, P2P cloud remote viewing, and two-way audio RCA

Technical Specifications

Package Contents

• Prama PT-NR2A16-Q1 NVR unit
• 12 VDC power adapter
• Wired USB mouse
• SATA data cable
• Installation guide and quick start manual

NOT INCLUDED: Hard disk drive (SATA up to 6 TB), HDMI cable, VGA cable, Ethernet cable (Cat 6), IP cameras, PoE switch, monitor. Cross-sell available: surveillance-grade HDD (4 TB/6 TB), high-speed HDMI 2.0 cable, Prama IP cameras, gigabit PoE switch, Cat 6 patch cables, rack-mount PDU.

Why Buy from Thencix

• Genuine Prama India stock with valid serial number and regional warranty
• GST invoice for every order — claim input tax credit on security infrastructure
• Cash on Delivery across Delhi, Noida, Gurgaon, Faridabad
• Express same-day dispatch for Delhi NCR; pan-India shipping
• Pre-sales bandwidth and storage calculation — we size your HDD and network for 16 cameras
• Post-sales P2P cloud setup, multi-user configuration, and branch network design

Need a bulk quote for 5+ NVRs across multiple warehouses, schools, or retail branches? WhatsApp us on +91 9891150949 for project pricing and GST documentation. Visit our Nehru Place store for live demo of 16-channel playback and 4K output.

Prama PT-NR2A16-Q1 Price India and Frequently Asked Questions
